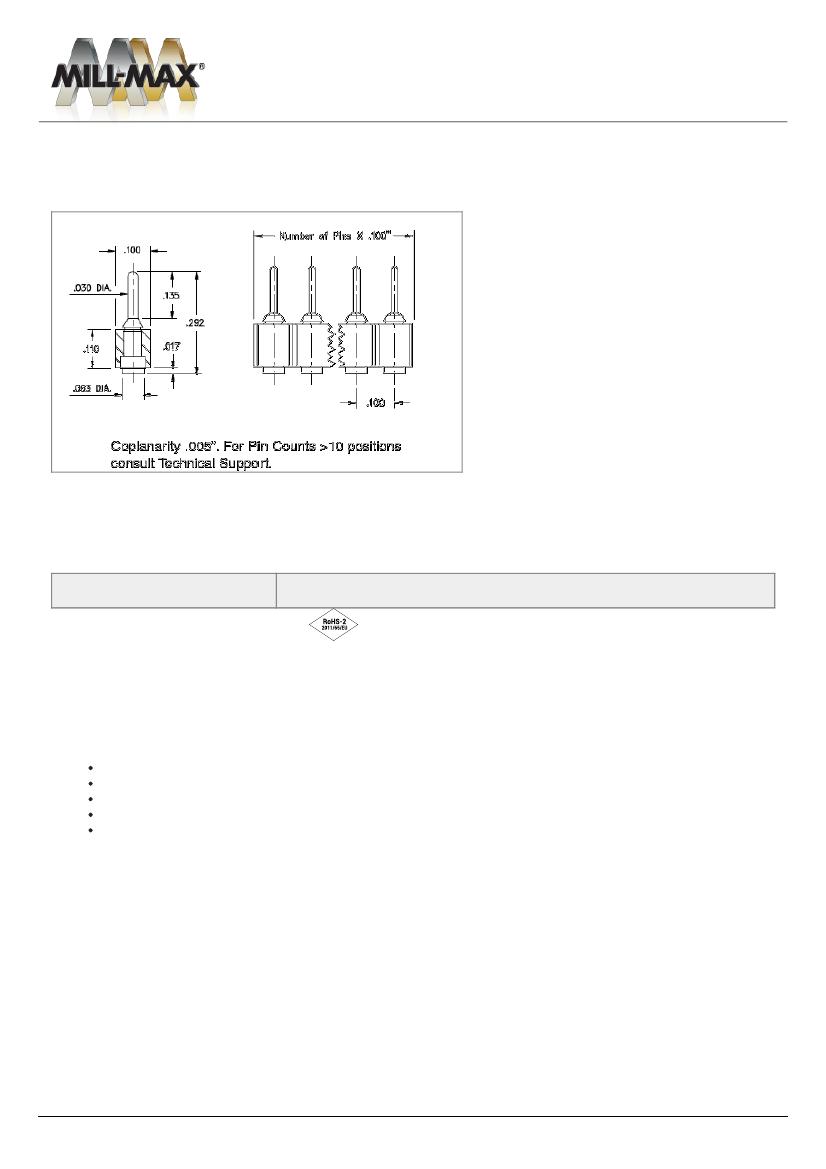

www.mill-max.com
DATA SHEET
PRODUCT NUMBER: 349-10-149-00-560000
DESCRIPTION
Interconnect Machined Pin Header
Surface Mount Pin Header
.030" (0,762mm) Pin Head
Rows:
Single Row (1)
Pitch:
.100" (2,540mm)
Clip Grid:
00
Pin Window Pattern
560
Plating Code:
10
Shell:
10
μ"
Gold over 100
μ"
Nickel
Insulator Pin Clip Type:
000
Mounting Type:
Surface Mount
Insulator Information:
PCT High Temperature
# Pins
49
ROHS Compliant
INSULATOR MATERIAL:
PCT Polyester (Injection Molded)
Properties:
Polyester {30% glass filled}, High Temp., (black). Flammability rating UL 94 V-O
Rated voltage: 100 VRMS/150 VDC
Insulation resistance: 10,000 Megaohms min.
Material Heat Deflection Temp (per ASTM D 648): 529°F (276°C) @ 66 psi
Dielectric strength: 1000 VRMS min. (700 VRMS min. for series 117 Shrink DIP)
Note: Materials with HDT above 446°F (230°C) are considered suitable for “eutectic” reflow soldering. For
“lead-free” reflow soldering, choose materials with an HDT above 500°F (260°C). PCT is the standard plastic
used with RoHS “lead-free” plated pins.
STANDARD TOLERANCES ON PCB TERMINAL PINS & RECEPTACLES
Diameters +/-.002"
Lengths +/-.005"
Angles +/- 2°
STANDARD TOLERANCES ON SPRING-LOADED PINS
Diameters +/-.002"
Lengths +/-.006"
Angles +/- 2°
ADDITIONAL NOTES & SPECIFICATIONS
Product Number 349-10-149-00-560000 Data Sheet
mill-max.com
Updated 8/4/21 12:55 PM EDT - Page 1 of 2
In the interest of improved design, quality and performance , Mill-Max reserves the right to make changes in its specifications without prior
notice. Specifications and tolerances are provided wherever possible. The tolerance on dimensions of critical to function features is typically
held tighter than the stated standard tolerances, such as press-fits, holes and lengths affecting the coplanarity of SMT products. Due to the
wide variety of interconnects Mill-Max offers, the specific tolerances vary from product to product. If you need information regarding the
tolerance of a particular part, please contact Technical Services.
© 2021 Mill-Max Mfg. Corp.
190 Pine Hollow Rd , Oyster Bay, NY 11771, USA
Phone: 516.922.6000
Product Number 349-10-149-00-560000 Data Sheet
mill-max.com
Updated 8/4/21 12:55 PM EDT - Page 2 of 2
