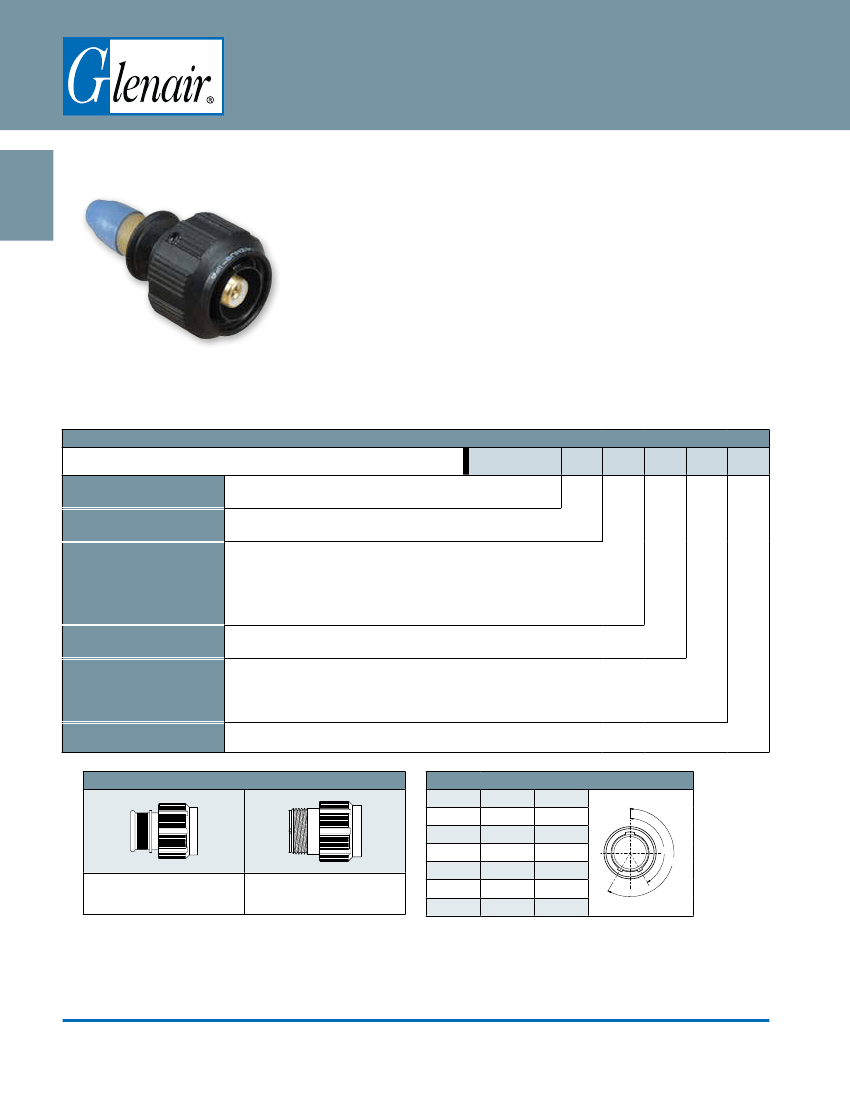

Series 801 Mighty Mouse Plug Connector with Size #8
Quadrax, Twinax, Coax or Power Contacts
801-007 and 801-008 Ordering Information
Series 801 Plug Connectors with Size #8 Contacts
New Mighty Mouse contact arrangements accept size #8 contacts for power,
Ethernet or high frequency coax applications. Series 801 Mighty Mouse plugs
feature damage-resistant double-start ACME mating threads. Available with
anti-decoupling feature or vibration-resistant ratchet mechanism, these plugs
are supplied with power contacts (contact types P or S). Or, specify contact types
A or B for connectors supplied less contacts for use with quadrax, twinax or coax
contacts purchased separately.
Contacts are crimp type and are snap-in, rear-release with plastic extraction
tool sold separately. Aluminum or stainless steel shell, thermoplastic insulators,
fluorosilicone rubber seals.
Mighty Mouse
with #8 Contacts
K
How To Order
Sample Part Number
Series (See Table I)
Shell Style
801-007
= Plug with Banding Platform
801-008
= Plug with Accessory Thread
-16
= Plug with Anti-Decoupling Spring
-26
= Self-Locking Plug with Ratchet Mechanism
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZR
= Aluminum / Zinc-Nickel with Non-Reflective Black Chromate RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
801-007
-16
M
8-1
P
A
Shell Material and Finish
Z1
= Stainless Steel / Passivated RoHS Compliant
8-1, 16-2, 16-208, 17-3, 17-205, 19-4, 19-201, 19-202, 21-5, 21-200
Shell Size - Insert Arrangement
(See page K-5)
Contact Type
Shell Key Positions
(See Table II)
Connector supplied
with size #8 power contacts
P
= Pin with #8 Power Contacts
S
= Socket with #8 Power Contacts
A
= Normal
B
= Pos. B
Connector supplied without contacts
(Order quadrax, twinax or coax contacts separately.)
A
= Pin Connector, Less Contacts
B
= Socket Connector, Less Contacts
E
= Pos. E
F
= Pos. F
C
= Pos. C
D
= Pos. D
Table I: Series
Position
A
B
C
D
801-007
Plug with Banding Platform
801-008
Plug with Accessory Thread
E
F
Table II: Shell Key Positions
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A°
B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-6
E-Mail: sales@glenair.com
