TSM-105-01-G-TH-S datasheet, PDF

TSM-105-01-G-TH-S: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

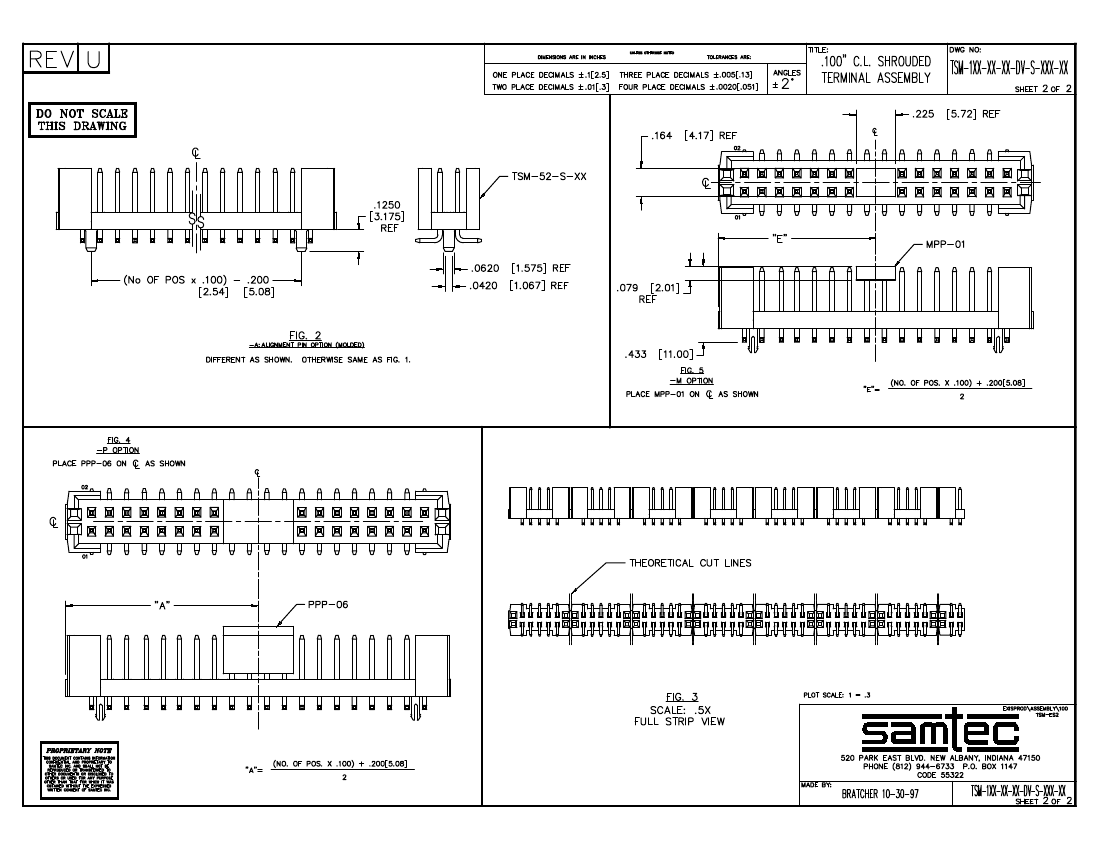

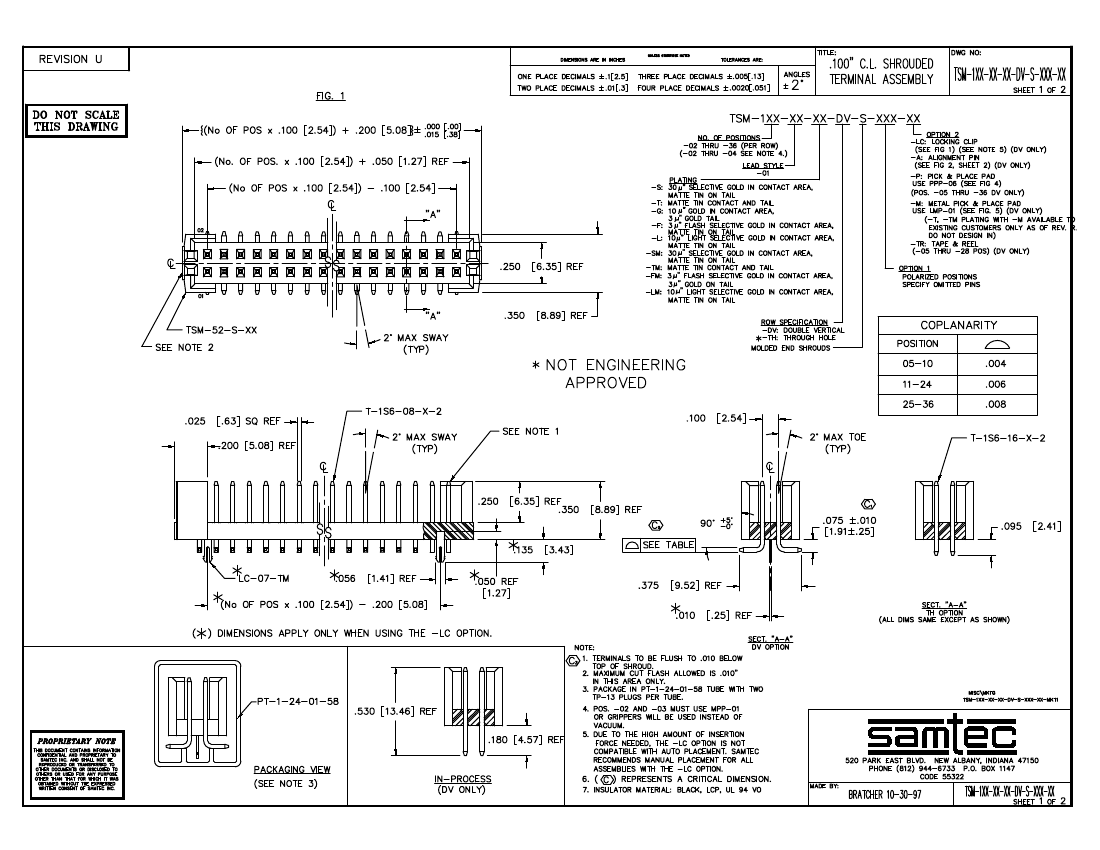

TSM-105-01-G-TH-S Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1056629564
Reach Compliance Code	compliant
Other features	SHROUDED
body width	0.35 inch
subject depth	0.35 inch
body length	0.7 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0
