AE1H225M04005PA datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> AE1H225M04005PA

AE1H225M04005PA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, 5 MMH RADIAL LEADED; CategoryPassive components capacitor; File Size55KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AE1H225M04005PA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, 5 MMH RADIAL LEADED

AE1H225M04005PA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2013291880
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.003 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	18 mA
surface mount	NO
Delta tangent	0.10
Terminal surface	Tin (Sn)
Terminal shape	WIRE

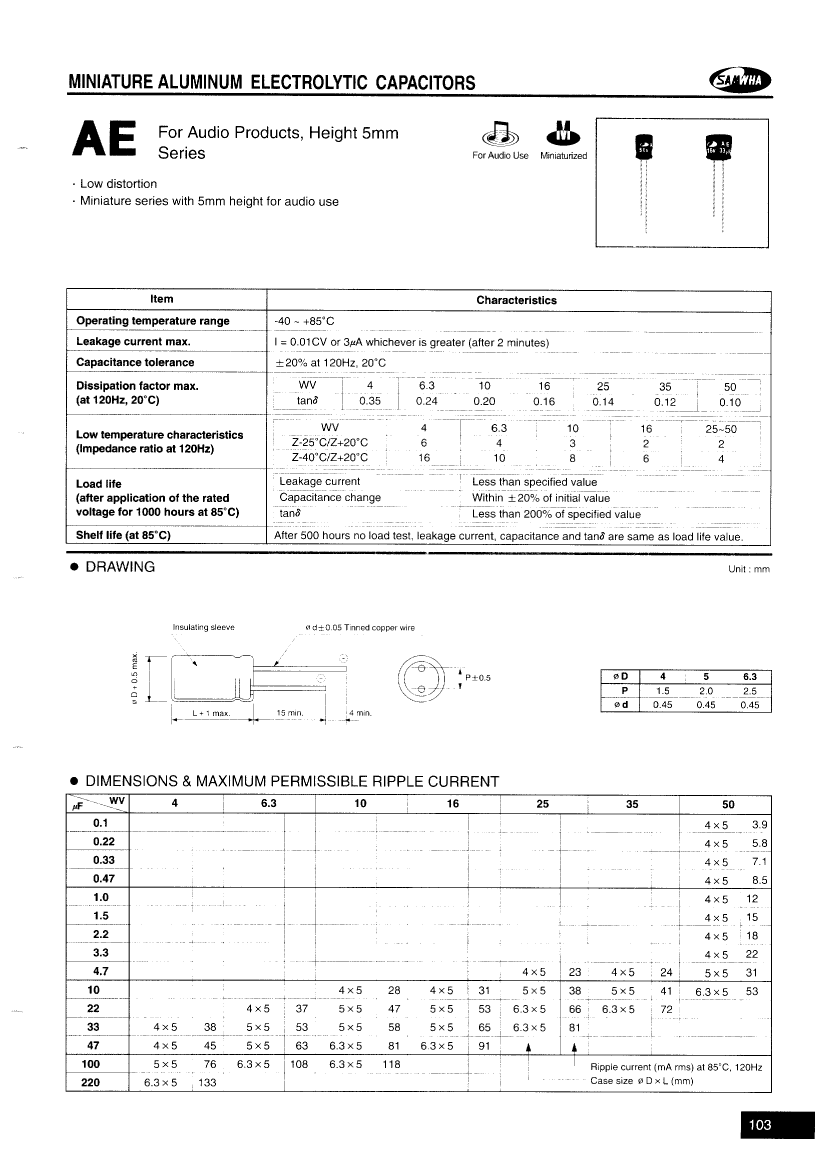

Preview

Download Datasheet

View All

AE1H225M04005PA Related Products

	AE1H225M04005PA	AE1H106M6L005PA	AE1H106M6L005PC	AE1H474M04005PB	AE1V475M04005PB
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, 5 MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, 5 MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, 5 MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, 5 MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, 5 MMH RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2.2 µF	10 µF	10 µF	0.47 µF	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3
leakage current	0.003 mA	0.005 mA	0.005 mA	0.003 mA	0.003 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	AMMO PACK	AMMO PACK	AMMO PACK	AMMO PACK	AMMO PACK
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	35 V
ripple current	18 mA	53 mA	53 mA	8.5 mA	24 mA
surface mount	NO	NO	NO	NO	NO
Delta tangent	0.10	0.10	0.10	0.10	0.12
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	-	SAMWHA	SAMWHA	SAMWHA	-
