801-007-26ZR21-12UXPB-688: DescriptionCircular Connector; CategoryThe connector The connector; File Size234KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

801-007-26ZR21-12UXPB-688 Overview

Circular Connector

801-007-26ZR21-12UXPB-688 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR
Manufacturer's serial number	801-007
Base Number Matches	1

Preview

Download Datasheet

View All

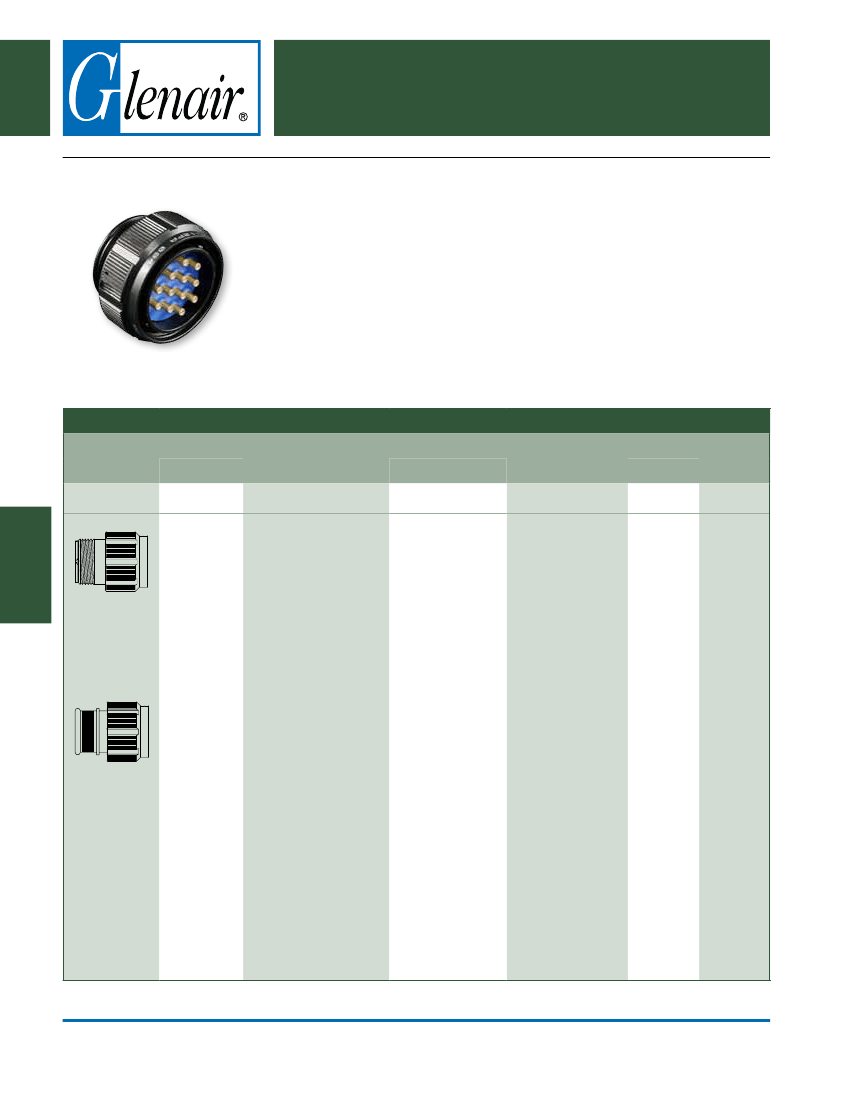

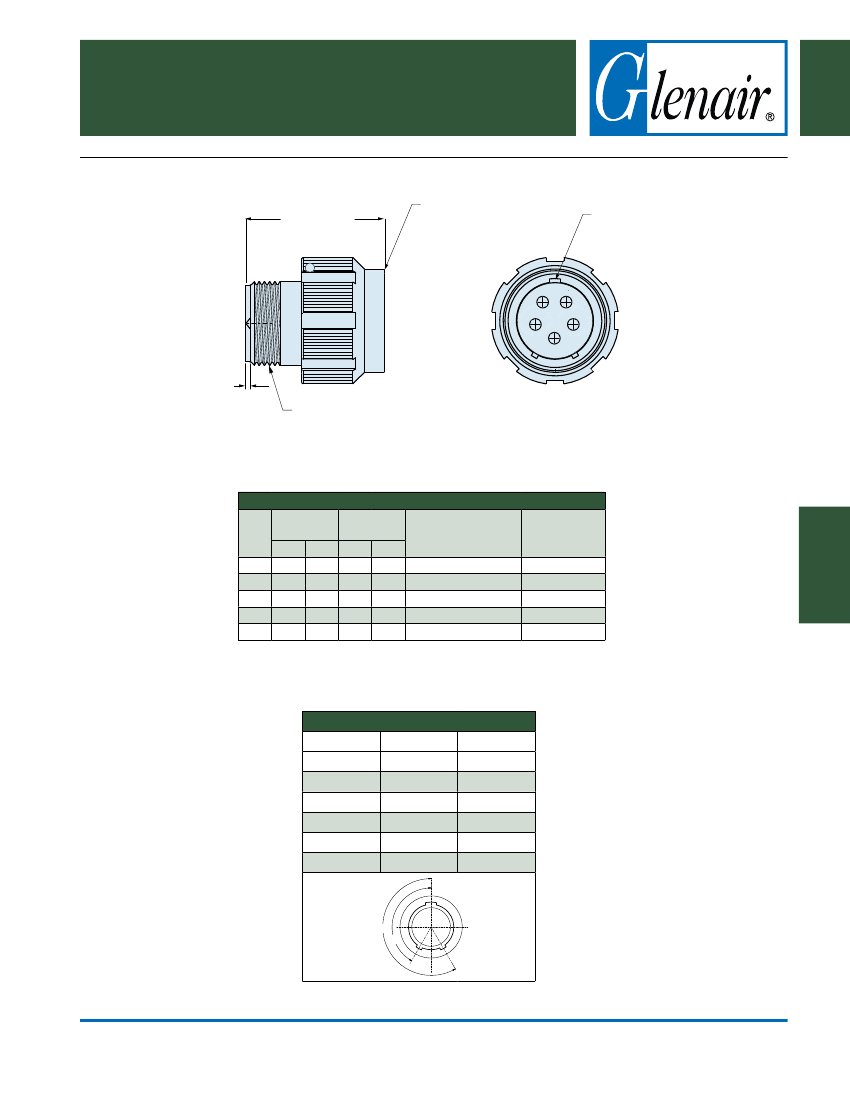

Series 80 Miniature Connectors

with Size #12 Ultra-Twinax Contacts

Series 801 Plugs

D

801-008

Plug Connector

with Rear

Accessory

Thread

Ultra-Twinax

SERiES 801 PLUg CONNECTORS WiTH SiZE #12 CONTACTS

New Mighty Mouse contact arrangements accept size #12 Ultra-Twinax contacts for

multi-gigabit datarate applications. Series 801 Mighty Mouse plugs feature damage-

resistant double-start ACME mating threads. Available with anti-decoupling feature

or vibration-resistant ratchet mechanism, these plugs are supplied with #12 Ultra-

Twinax contacts (contact types UXP or UXS). Or, specify contact types UXA or UXB for

connectors supplied less contacts for use with twinax contacts purchased separately.

Connector shells are aluminum or stainless steel, with thermoplastic insulators and

fluorosilicone rubber seals.

How To Order

Sample Part Number

801-008

Series

-16

Shell Style

M

Shell Material / Finish

7-1

Shell Size-

Insert Arrangement

UXP

Contact Type

A

Shell Key

Position

-688

Mod Code

-16

Plug with

Anti-

Decoupling

Spring

M

Aluminum /

Electroless Nickel

RoHS Compliant

7-1

10-2

16-5

17-7

21-12

10-201

10-200

13-201

13-200

Connector supplied

with size #12 Ultra-

Twinax contacts

A

Normal

Alternate

Key

Positions:

UXP

With #12 Ultra-

Twinax Pin contacts

-26

NF

Aluminum / Cadmium

with Olive Drab

Chromate

Self-Locking

Plug with

Ratchet

Mechanism

(the "Clicker")

UXS

With #12 Ultra-

Twinax Socket

contacts

Connector supplied

without contacts.

(Order twinax

contacts separately.)

C

D

e

F

B

Connector

insulators

supplied

with

keyways

for use

with keyed

contacts

ZR

Aluminum / Zinc-Nickel

with Non-Reflective Black

Chromate

RoHS Compliant

801-007

Plug Connector

with Banding

Termination

Porch

MT

Aluminum / Nickel-PTFE

RoHS Compliant

UXA

Pin connector, less

contacts

Z1

Stainless Steel /

Passivated

RoHS Compliant

UXB

Socket connector,

less contacts

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

D-10

E-Mail: sales@glenair.com
