smartModule
Overview
-> see also page 20
Type
CPU
BUS System
Expansion Interface
2nd Level Cache
Clock (MHz)
DRAM (MB)
Flashdisk (MB) optional
CompactFlash
PCCard Interface
Mouse, Keyboard
Keymatrix
Floppy Interface
IDE Interface
COM1
COM2
COM3
COM4
LPT1
IrDA
USB
LAN
Video Controller
Video Datapath
Video Memory
LCD Interface
LCD Resolution
Audio
EEPROM Support
Watchdog
Power Normal
Power Suspend
Cooling Type
Operating Temp.
Extended Temp.
Size (mm)
Weight (gr)
MTBF
Embedded DOS
Operating Systems
Status
Ordering Guide

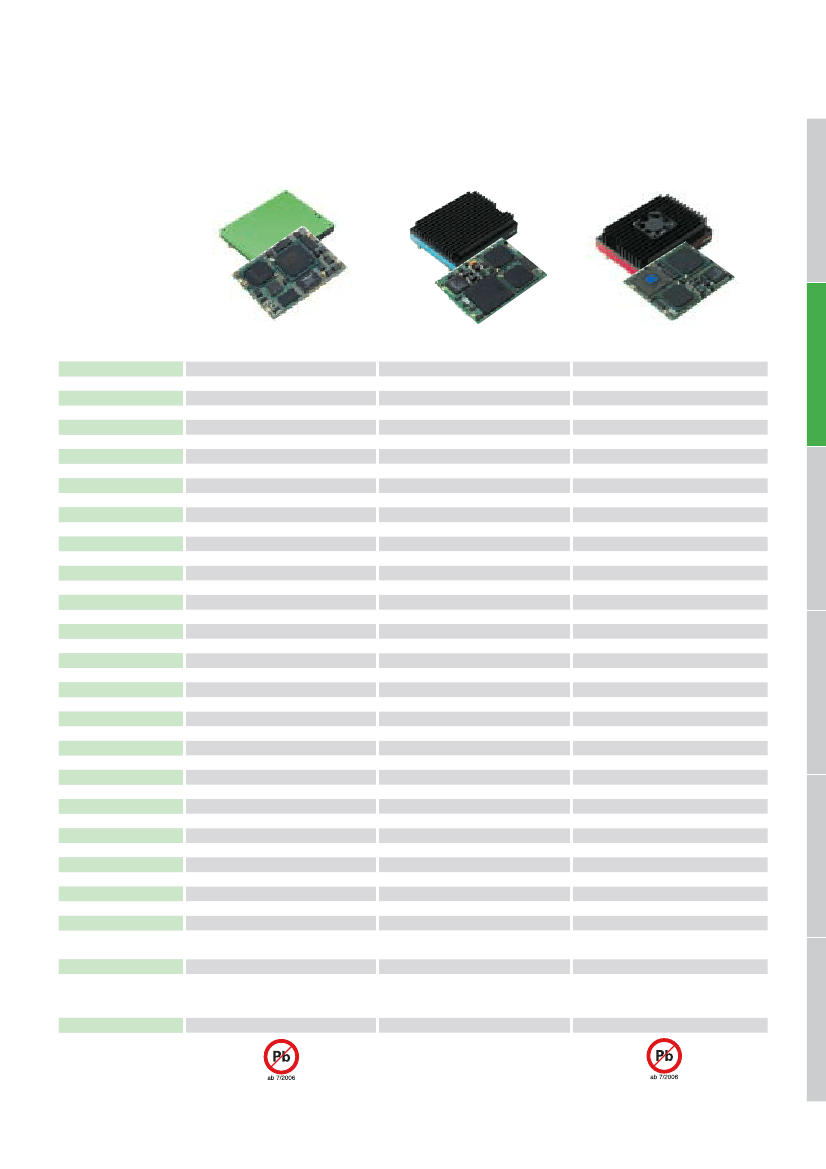

smartModule520PC
ELAN520
smartBus480
ISA, PCI, MEMORY
-
133
SODIMM 16-128
2-8
-
-
-
PCI
TTL
TTL
-
-
external
2
optional (PCX)
ATI M1
PCI
8 MB
24 Bit TFT 3V
1280 x 1024 x 256
-
5V/1,5A (typ.)
no APM
passive
-25°C to +60°C
-40°C to +85°C
66 x 85 x 14
90
> 200’000h
-
WIN-CE, WIN98, NT4,
LINUX, QNX, RTXDOS
for new designs
smartModule520PC
-> see also page 21
smartModuleP5PC
Intel
®
Pentium
®
MMX
smartBus480
ISA, PCI, MEMORY
-
166/266
SODIMM 32-256
-
-
-
-
PCI
TTL
TTL
-
-
external
2
-
SXGA 69000
PCI
2 MB
36 Bit TFT 3V
1280 x 1024 x 256
-
5V/1,8A (typ.@266MHz)
5V/0,4A (typ.)
passive
-25°C to +60°C
-40°C to +85°C
66 x 85 x 14
90
> 200’000h
-
WIN-CE, WIN98, NT4, WIN2000,
LINUX, QNX, RTXDOS
limited availability
smartModuleP5PC-166
smartModuleP5PC-266
SMxxPC-DK
-> see also page 22
smartModuleP3PC
Intel
®
Pentium
®
III / Celeron
®
smartBus480
ISA, PCI, MEMORY
256kB
300, 400, 700
SODIMM 32-256
-
-
-
-
PCI
TTL
TTL
-
-
external
2
-
ATI M1
PCI
8 MB
24 Bit TFT 3V
1280 x 1024 x 256
-
5V/2,5A (typ.@400MHz)
5V/0,5A (typ.)
active
-25°C to +50°C
-40°C to +70°C
66 x 85 x 14
90
> 200’000h
-
WIN-CE, WIN98, NT4, WIN2000,
LINUX, QNX, RTXDOS
for new designs / in development
smartModuleP3PC-300C
smartModuleP3PC-400/-400C
smartModuleP3PC-700
SMxxPC-DK
Development-Kit
SMxxPC-DK
Änderungen vorbehalten / Subject to change!
17
DIGITAL-LOGIC
Solution Guide 2005
smartModule
SMP5PC
Datasheet
Beschreibung
Mit dem smartModule SMP5PC bietet
DIGITAL-LOGIC ein auf Pentium
®
MMX-basie-
rendes PC-Modul nach dem PC/480-Standard.
Alle Peripherie-Schnittstellen inkl. USB, VGA
werden über den smartBus480 in die kun-
denspezifische Umgebung integriert. Die gerin-
ge Leistungsaufnahme und das flache Modul-
gehäuse vereinfachen das Kühlkonzept.
Description

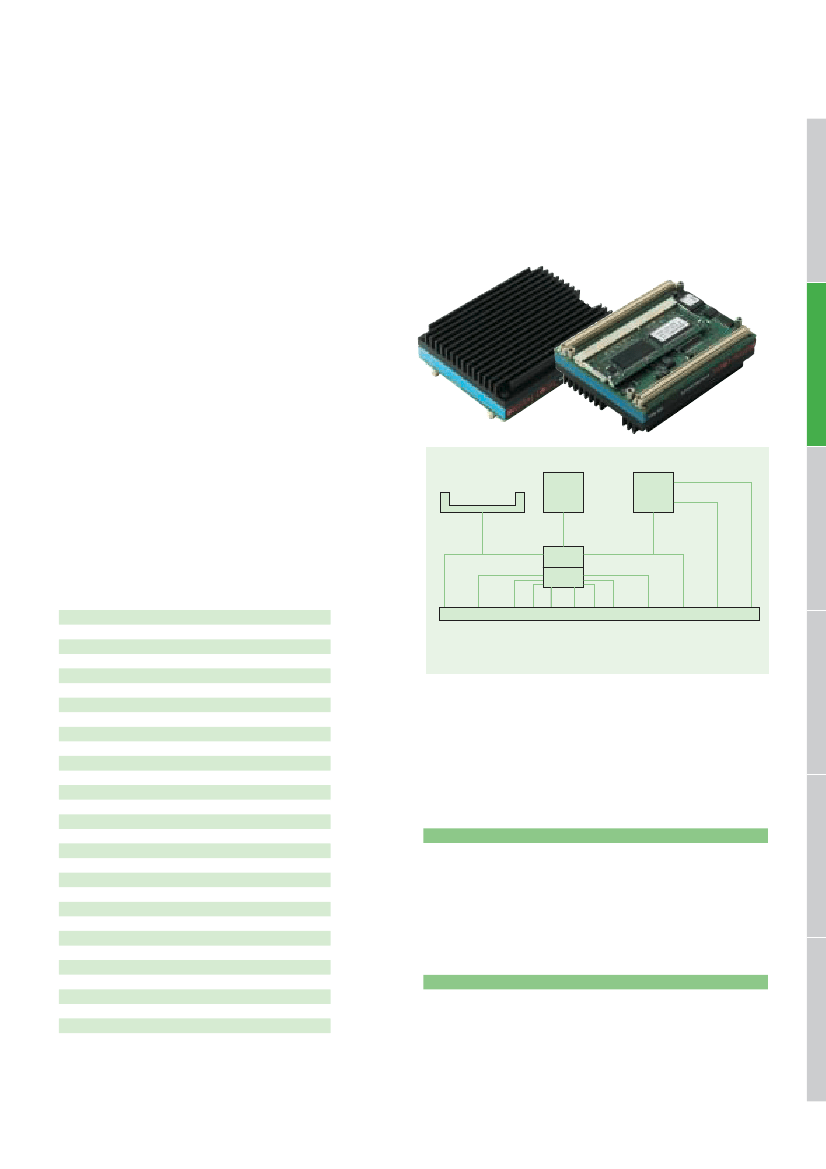

With the smartModule SMP5PC, based on the
Pentium
®
MMX, DIGITAL-LOGIC offers a PC-module
according to the PC/480-standard. All PC-inter-
faces incl. USB, VGA can be integrated via the
smartBus480 into a custom specific application.
Due to the minimal power consumption and flat
housing, a reliable cooling-concept can be easy
implemented.
CRT
SODIMM
SDRAM
CPU
P5
VGA
Controller
LCD
North bridge
South bridge
+Super I/O
ISA
PCI
Technical Data
Size
CPU
Performance
2L-Cache
DRAM
Bootable Flash
CompactFlash
PCCard
Keyboard
BootDrive
Mouse
Harddisk
Floppy
Serial
BUS
Parallel
USB
LAN
Video
smartBus480
Intel
®
Pentium
®
MMX
166, 266MHz
-
SODIMM 32-256 MB
-
-
-
FD, HD, CD, USB-FD/CD
,
2x
COM1 (TTL)
COM2 (TTL)
ISA, PCI
LPT1
-
69000, 2 MB, VGA LCD
Resolution
36 Bit
Level
3V
-
1k
onboard
external
,
S2D, ATX, APM
5V
400mA/1800mA (typ.@266MHz)
66 x 85 x 14mm
MEM
Bus
2x
USB
SmartBus 480
KB 2x IDE PM
MS
Floppy
2x
COM
LPT
ISA
PCI
LCD
CRT
Ordering Information
Article
SMP5PC-166
SMP5PC-266
SMP5PCN-266
SMxxPC-DK
Part No.
805060
805065
805066
805025
Description
166MHz, 0 MB RAM
266MHz, 0 MB RAM
266MHz, 0 MB RAM, no VGA
Development-Kit without smartModule
Video Input
EEPROM
Watchdog
RTC Battery
Power Management
Supply
Consumption*
Size
* sleep/normal
Option
SDRAM32M
SDRAM64M
SDRAM128M
SDRAM256M
Part No.
890645
890644
890646
890647
Description
SODIMM SDRAM-Module 32 MB
SODIMM SDRAM-Module 64 MB
SODIMM SDRAM-Module 128 MB
SODIMM SDRAM-Module 256 MB
21
DIGITAL-LOGIC
Solution Guide 2005
