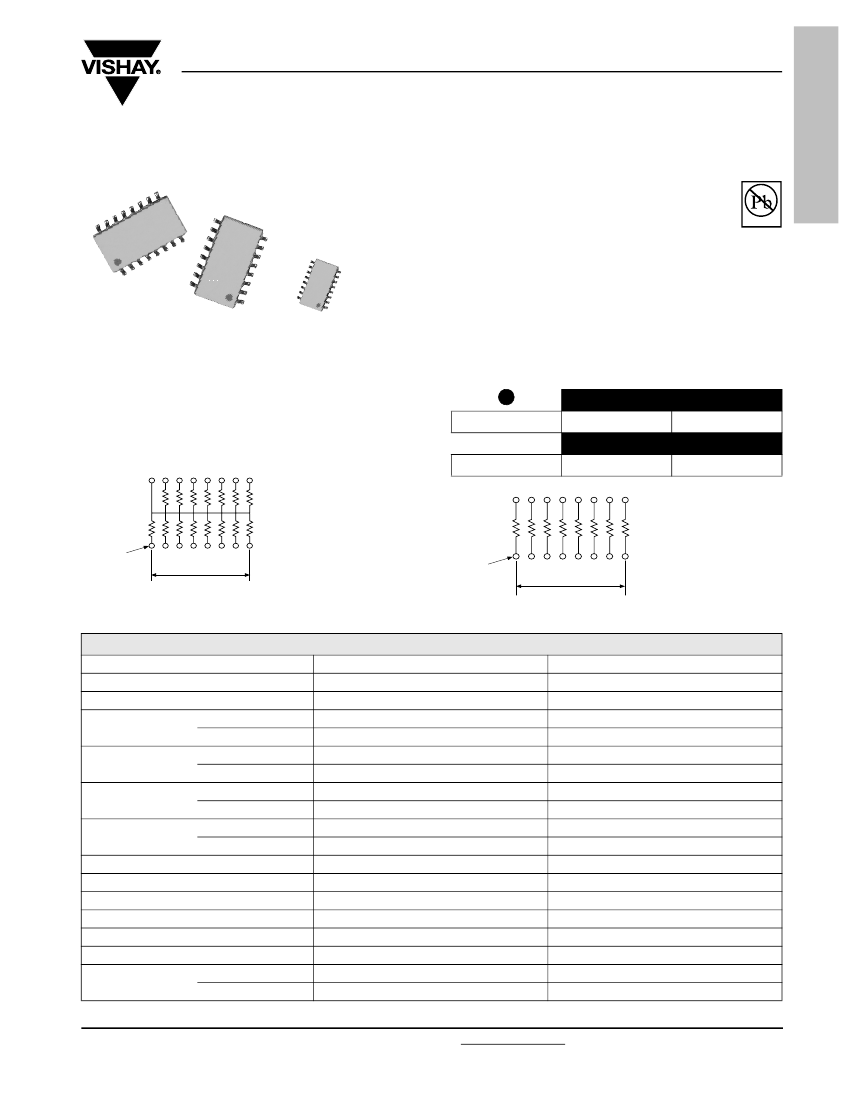

TOMC
Vishay Thin Film
SURFACE MOUNT
NETWORKS
Molded, 50 Mil Pitch Resistor Networks
FEATURES
•
Lead (Pb)-free available
•
0.090" (2.29 mm) maximum seated height
•
Rugged, molded case construction (0.22" wide)
•
Highly stable thin film (500 ppm at 70 °C,
10 000 h)
•
Low temperature coefficient, ± 25 ppm/°C
(- 55 °C to + 125 °C)
•
Wide resistance range 100
Ω
to 100 kΩ
•
Isolated/Bussed circuits
Pb-free
Available
RoHS*
COMPLIANT
Actual Size
Vishay Thin Film offers standard circuits in 16 pin in
a medium body molded surface mount package. The
networks are available over a resistance range of 100
Ω
to
100 kΩ. The network features tight ratio tolerances and
close TCR tracking. In addition to the standards shown,
custom circuits are available upon request.
TYPICAL PERFORMANCE
ABS
TCR
25
ABS
TOL
0.1
TRACKING
5
RATIO
0.025
SCHEMATIC
The 01 circuit provides 15
nominally equal resistors,
each connected between
a common lead (16) and a
discrete PC board pin.
TOMC-1601
01 circuit
Ref.
Pin
No.
1
Ref.
Pin
No.
1
TOMC-1603
03 circuit
The 03 circuit provides a
choice of 8 nominally
equal resistors with each
resistor isolated from all
others and wired directly
across.
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Pin Number
Resistance Range
TCR:
Tolerance:
Power Rating:
Stability:
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability:
Absolute
Ratio
Tracking
Absolute
Ratio
Absolute
Resistor
Package
ΔR
Absolute
ΔR
Ratio
SPECIFICATIONS
16
100
Ω
to 100 kΩ
± 5 ppm/°C
± 25 ppm/°C
± 0.5 %, ± 0.1 %, ± 0.05 %, ± 0.025 %
± 0.1 %, ± 0.5 %, ± 0.25 %, ± 0.1 %
Pin 1 Common = 50 mW Isolated = 100 mW
750 mW
500 ppm
150 ppm
0.1 ppm/V
50 V
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 30 dB
0.08 µV/°C
100 ppm
20 ppm
1 year at + 25 °C
1 year at + 25 °C
- 55 °C to + 125 °C
- 55 °C to + 125 °C
+ 25 °C
+ 25 °C
Max. at + 70 °C
Max. at + 70 °C
2000 h at + 70 °C
2000 h at + 70 °C
CONDITIONS
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 60008
Revision: 05-Mar-08
For technical questions, contact: thin-film@vishay.com
www.vishay.com
27
SURFACE MOUNT
NETWORKS
TOMC
Vishay Thin Film
Molded, 50 Mil Pitch Resistor Networks

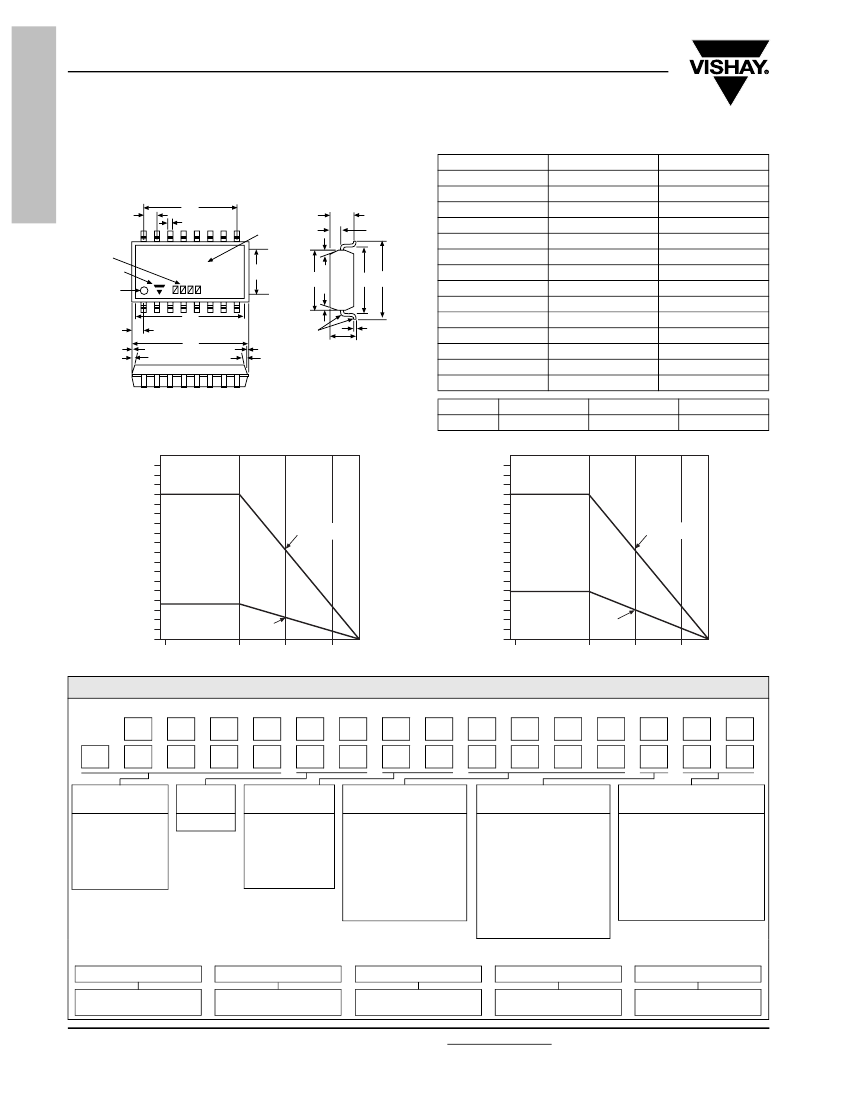

DIMENSIONS AND IMPRINTING
in inches and millimeters
DIMENSION
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
TYPE
16
A
0.350" (8.89)
INCHES
0.050
0.018
0.160
0.08
0.036
0.22
0.244
0.30
0.045
0.003
0.005
0.008
0.085
0.003
B
0.400" (10.16)
MM
1.27
0.457
4.06
2.03
0.914
5.59
6.20
7.52
1.14
0.076
1.27
0.203
2.16
0.076
C
0.440" (11.176)
D
Date
Code
VISHAY
Symbol
Lead #1
Indicator
M
N
7°
A
E Typical
Part No.
TOMC-XX
G
H
Centered
Max.
7°
F Marking
J
Area
7°
K L ± 0.015
(1.27)
B
Centered Max.,
Marking Area
C
P
S
7°
Q
R
DERATING CURVES
TOMC-1601
TOMC-1603
0.75
W
0.65
W
0.48
W
0.75
W
0.65
W
POWER
POWER
0.48
W
Single
Resistor
0.045
W
0.05
W
- 50 °C
- 25 °C
+ 70 °C
+ 125 °C + 150 °C
Single
Resistor
0.085
W
0.05
W
- 50 °C
- 25 °C
+ 70 °C
+ 125 °C + 150 °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: TOMC16031002BUF (preferred part number format)
T
T
O
O
M
M
C
C
T
1
1
6
6
0
0
3
1
1
1
0
0
0
0
2
3
B
Z
U
T
F
1
GLOBAL MODEL
(4 or 5 digits)
TOMC
(Tin lead)
TOMCT
(Lead (Pb)-free)
(e3)
PINS
16
SCHEMATIC
01
= 15 bussed
equal resistors
03
= 7 or 8
isolated equal
resistors
RESISTANCE
First 3 digits are
significant figures and
the last digit specifies
the number of zeroes
to follow.
Example:
1002 = 10K
1003 = 100K
TOLERANCE AND
RATIO TOLERANCE
Abs. tol.
**A
= 0.1 %
B
= 0.1 %
C
= 0.25 %
D
= 0.5 %
F
=1%
*Z
= 0.1 %
Ratio
0.05 %
0.1 %
0.1 %
0.1 %
0.5 %
0.025 %
PACKAGING
TAPE AND REEL
T0
= 100 min. 100 mult
T1
= 1000 min. 1000 mult
T3
= 300 min. 300 mult
T5
= 500 min. 500 mult
TF
= Full reel 2000
TS
= 100 min. 1 mult
UF
= TUBED
* Tol. available 1K and up
** Tol. available 250 and up
Historical Part Number example: TOMC16011002Z (will continue to be accepted)
TOMC
SERIES
www.vishay.com
28
16
NUMBER OF LEADS
01
SCHEMATIC
1002
RESISTANCE
Z
TOLERANCE AND
RATIO TOLERANCE
Document Number: 60008
Revision: 05-Mar-08
For technical questions, contact: thin-film@vishay.com
