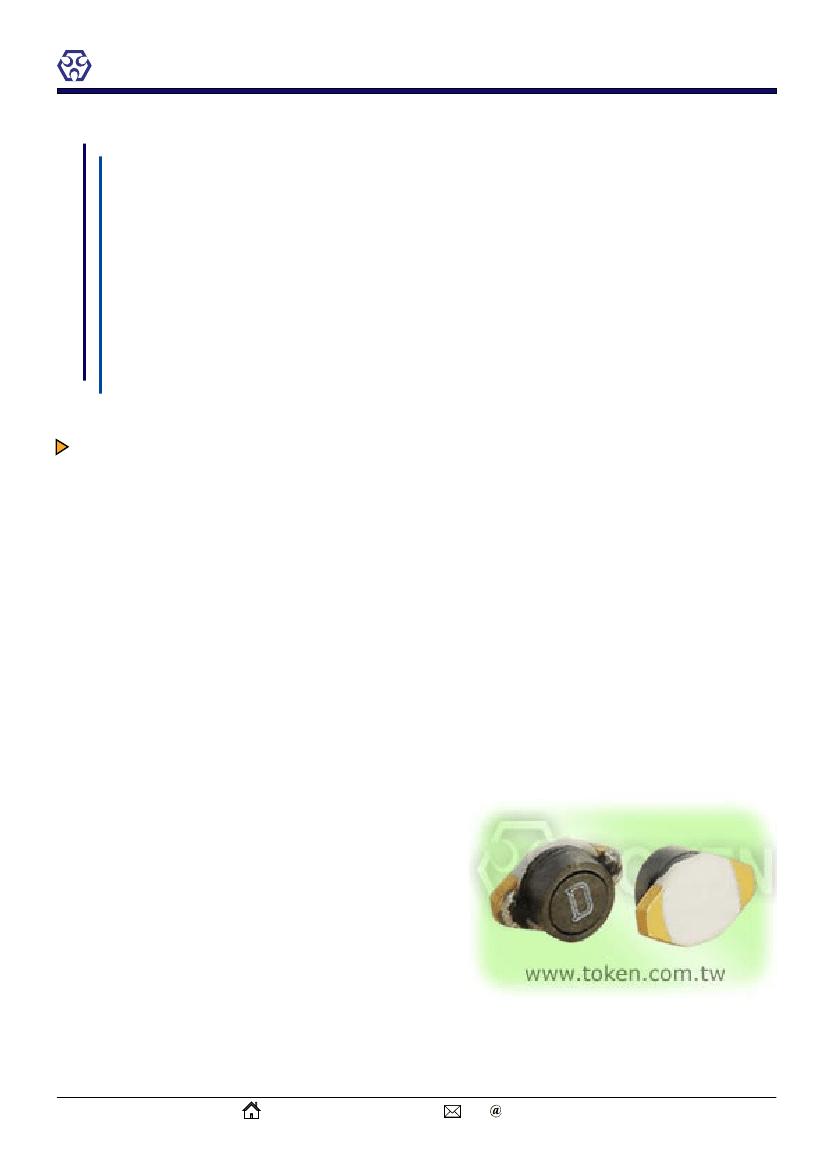

TPSDBL High Voltage Backlight Inductor
Power High Voltage
Backlight Inductors
Token SMT Power Inductors
With High Breakdown Voltage
For Back light Applications (TPSDBL)
Preview
Token TPSDBL low profile series backlight inductor is specified for backlight applications, such as PDA, USB,
LCD, and TFT.
Magnetically Shielded Construction to avoid radiation, Token TPSDBL features high breakdown voltage, and
very low direct current resistance (DCR). The height only 2.92 mm, they have a footprint of (6.6 x 4.45 mm).
The TPSDBL is constructed of high temperature materials that provide excellent heat deflection to prevent
damage during solder reflow. Standard inductance values range from 100.00 μH to 10000.00 μH, DCR from
0.95Ω to 74Ω, current rating from 0.01A to 0.22A, and custom values are available on request to meet specific
requirements.
Token backlight inductors are composited with heat resistant materials and flat top designed for easy pick and
place assembly for reflow operation. Ultra miniature size is suitabe for high density mounting.
The TPSDBL series are RoHS compliant with Pb-free terminations. Token will also produce devices outside
these specifications to meet specific customer requirements, please contact our sales for more information.
Inductor Selecting Factors :
- TPS1608DBL 100.00μH ~ 10000.00μH; 0.01A ~ 0.22A.
- Electrical specifications at 25°C.
Features :
- Magnetically shielded construction gainst radiation.
- Compact Size, High Breakdown Voltage.
- Operating temperature range: -40°C ~ +85°C
Applications :
- Back Light Applications : PDA, USB, LCD, TFT.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 03
TOKEN
A
TPSDBL High Voltage Backlight Inductor

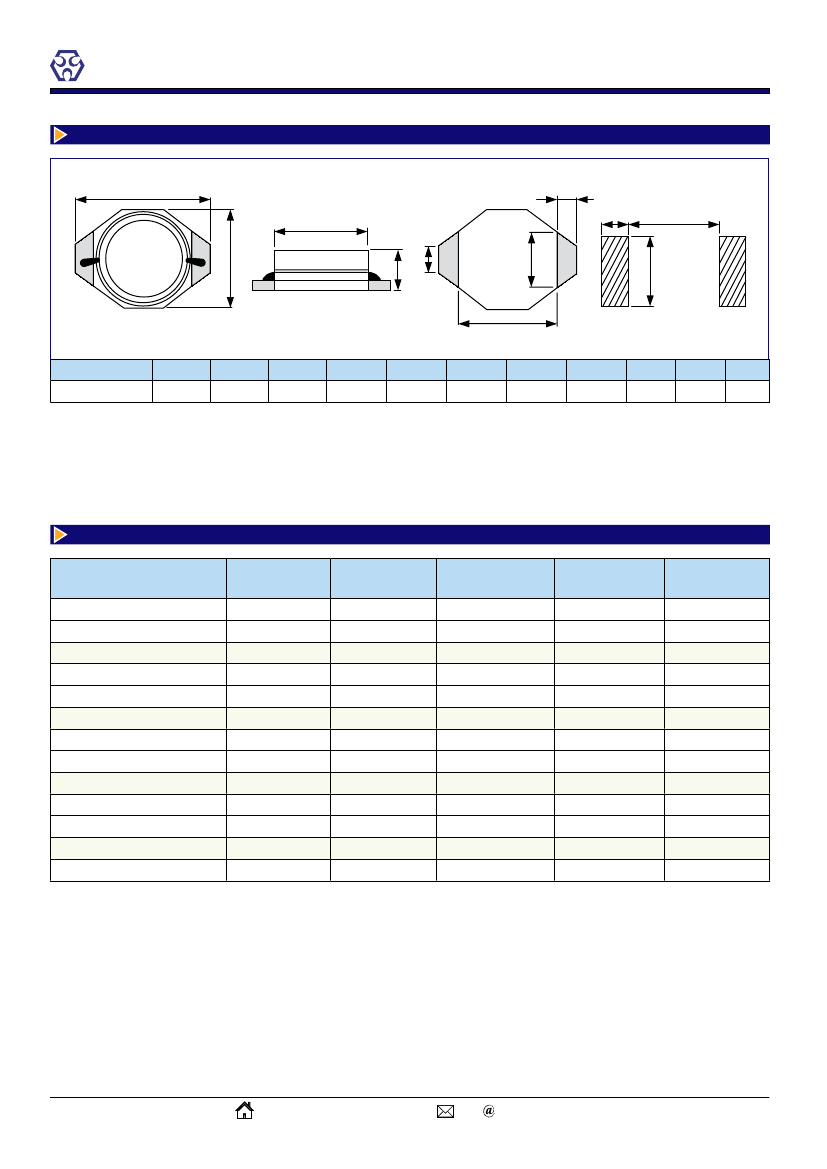

(TPS1608DBL) Dimensions & Configurations (Unit: mm)
F
C
J
E
H
Land Pattern
K
XXX
B
D
I
G
Type
A(max) B(max)
TPS1608DBL 6.60
4.45
C±0.3
4.00
D(max)
2.92
E±0.3
1.27
F±0.3
1.02
G±0.3
4.32
H±0.3
2.50
I
3.56
J
1.40
K
4.06
Note: Design as Customer’s Requested Specifications.
(TPS1608DBL) Electrical Characteristics
Part Number
TPS1608DBL - 101M
TPS1608DBL - 151M
TPS1608DBL - 221M
TPS1608DBL - 331M
TPS1608DBL - 471M
TPS1608DBL - 681M
TPS1608DBL - 102M
TPS1608DBL - 152M
TPS1608DBL - 222M
TPS1608DBL - 332M
TPS1608DBL - 472M
TPS1608DBL - 682M
TPS1608DBL - 103M
Inductance
(μH)
100.00
150.00
220.00
330.00
470.00
680.00
1000.00
1500.00
2200.00
3300.00
4700.00
6800.00
10000.00
Test Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
Insulation
core-winding
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
>10
DCR (Ω)
(max)
0.950
1.400
1.700
2.200
3.800
4.900
9.000
11.000
19.000
24.000
30.000
56.000
74.000
Current
(A) (max)
0.22
0.20
0.18
0.16
0.14
0.12
0.10
0.08
0.05
0.04
0.03
0.02
0.01
Note: Test Freq.: 100KHz / 0.1V.
Current (max).... 30°C temperature rise.
Operating Temp.: -40°C ~ +85°C.
02 of 03
http://www.token.com.tw/
rfq token.com.tw
Version 2010
