TR-11SX630.9A Overview

UL1077 Recognized Supplementary Protector/ Circuit Breaker for Equipment

Preview

Download Datasheet

View All

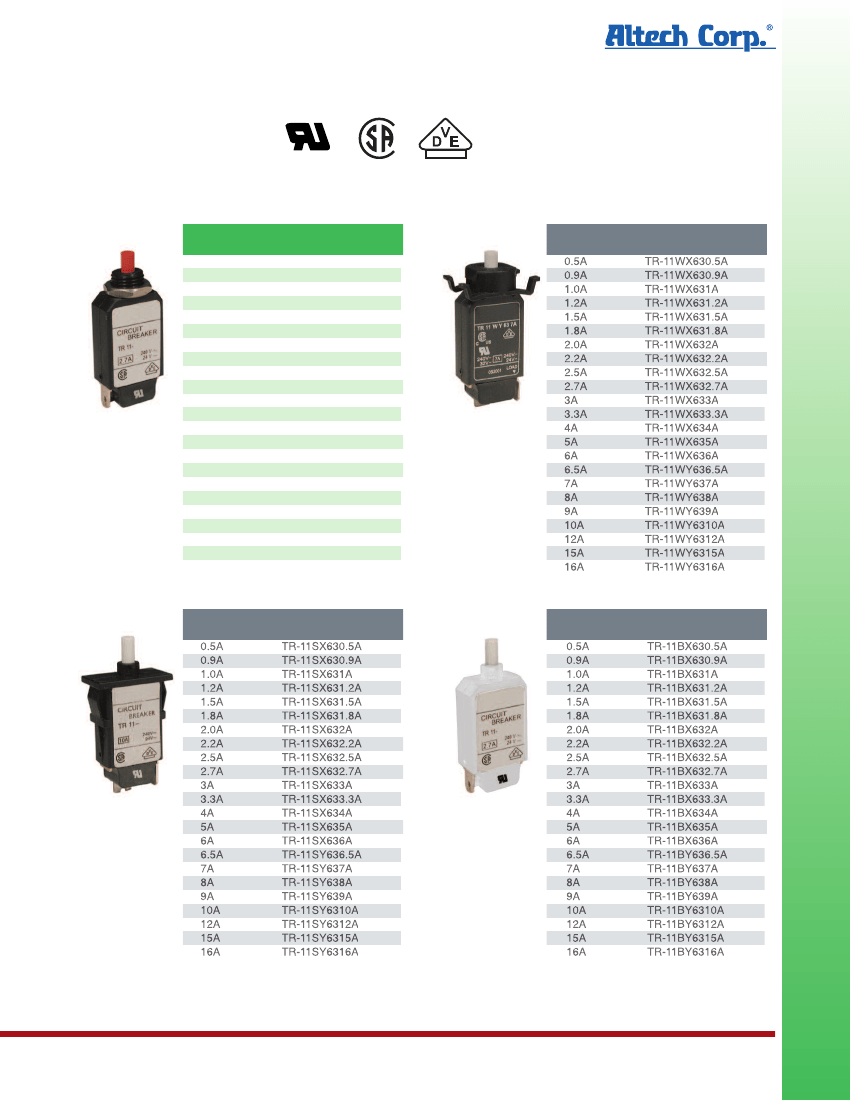

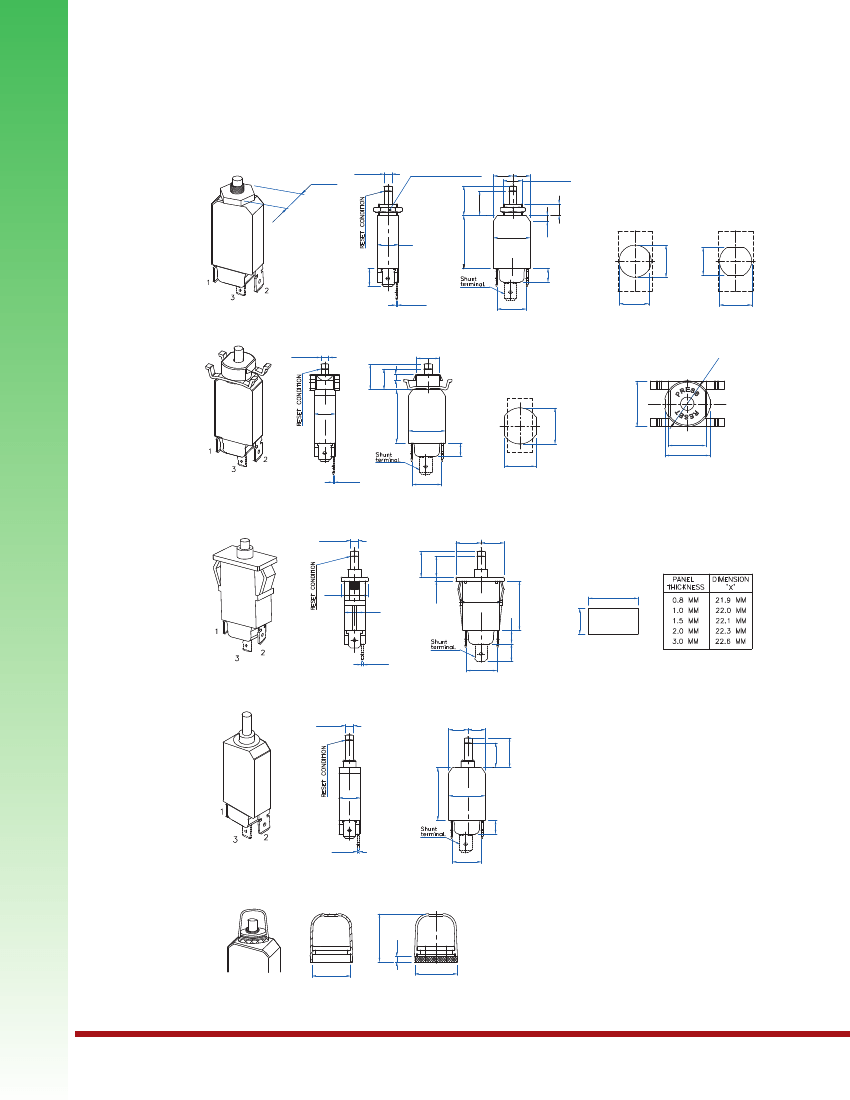

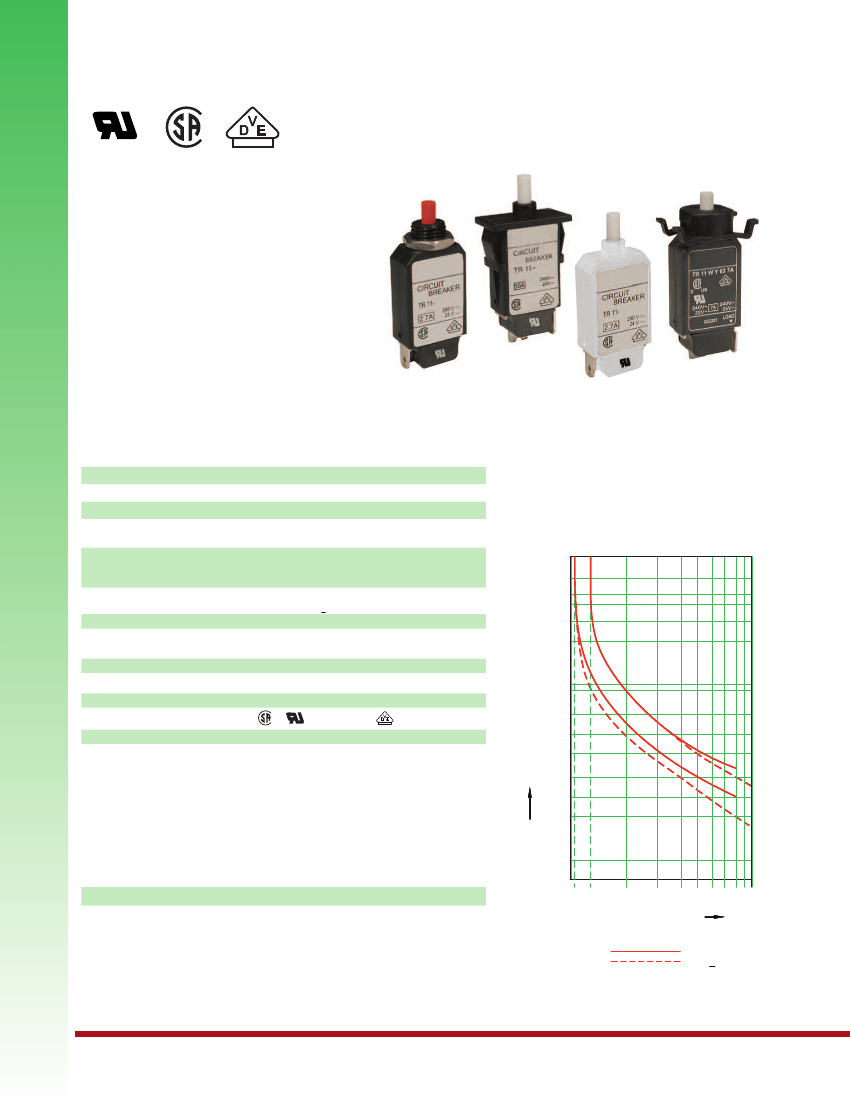

Altech UL1077

TR11 Series

E209569

up to 12 Amps

UL1077 Recognized

Supplementary Protector/

Circuit Breaker for Equipment

Applications:

Protection of single phase Motors, Transformers,

UPS, Power strips, Solenoids etc., against

damage due to overcurrent conditions.

Current Rating

Rated Voltage

Initial insulation resistance

Dielectric strength

Overload Switching Capacity

Maximum Breaking Capacity

Power Loss

Operating Temperature

Operational Life at 2xIn

Limited short circuit current

Terminals

Applicable Standards

Approvals

Accessories

0.5 -16.0A

240V AC, 50/60Hz,

32V DC / 24V DC (VDE)

(As per EN 60934)

> 100 M ohms.

(As per EN 60934)

1.5 KV for One minute.

6 I

~ up to 9.0A

(As per EN 60934)

4 I

- up to 12.0A

60A Max. ~ from 10.0A to 12.0A

60A Max. - from 10.0A to 12.0A

8x I

for <6.0A

60A MAX. for > 6.0A

1 - 2 Watts

Maximum 60°C Ambient

1000 Cycles

1000 Amps PC 1

Operating

Characteristic

(min) 60

(S) 50

Trip time

0.5

0.2

0.1

1.05 1.32

4 5

8 10

0.25” Quick connect

EN 60934, CSA 22.2 No. 235, UL-1077

up to 16.0 A

upto 12.0A

Dust Cover, DC-TR11 C (see page 14)

Time Current Characteristics:

The standard characteristic is valid for ambient temperatures of

+23°C. If the device is to be used in an ambient temperature other

than +23°C, allowances must be made when selecting the current

rating according to the following guidelines:

Ambient temp. °C

Correction Factor

Example :

-20

-5

+10

0.96

+20

+30

1.05

+40

1.12

+50

1.2

+60

1.3

0.8 0.88 0.9

Normal Continuous Current

Ambient Temperature

Correction Factor

Recommended Current Rating

Select the nearest

1.8A

40°C

1.12

1.8 x 1.12 = 2.016

2.0A

Multiple of Rated Current

Rated current

Ambient

Temperature

<6A

>6A

23°C

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
