TREC Chip Wire Wound RF Inductors
RF
Wire Wound
Inductors
Chip Narrow Pad Wirewound Inductors
with High Current for RF Applications
(TREC322522N, TREC453232N)
Preview

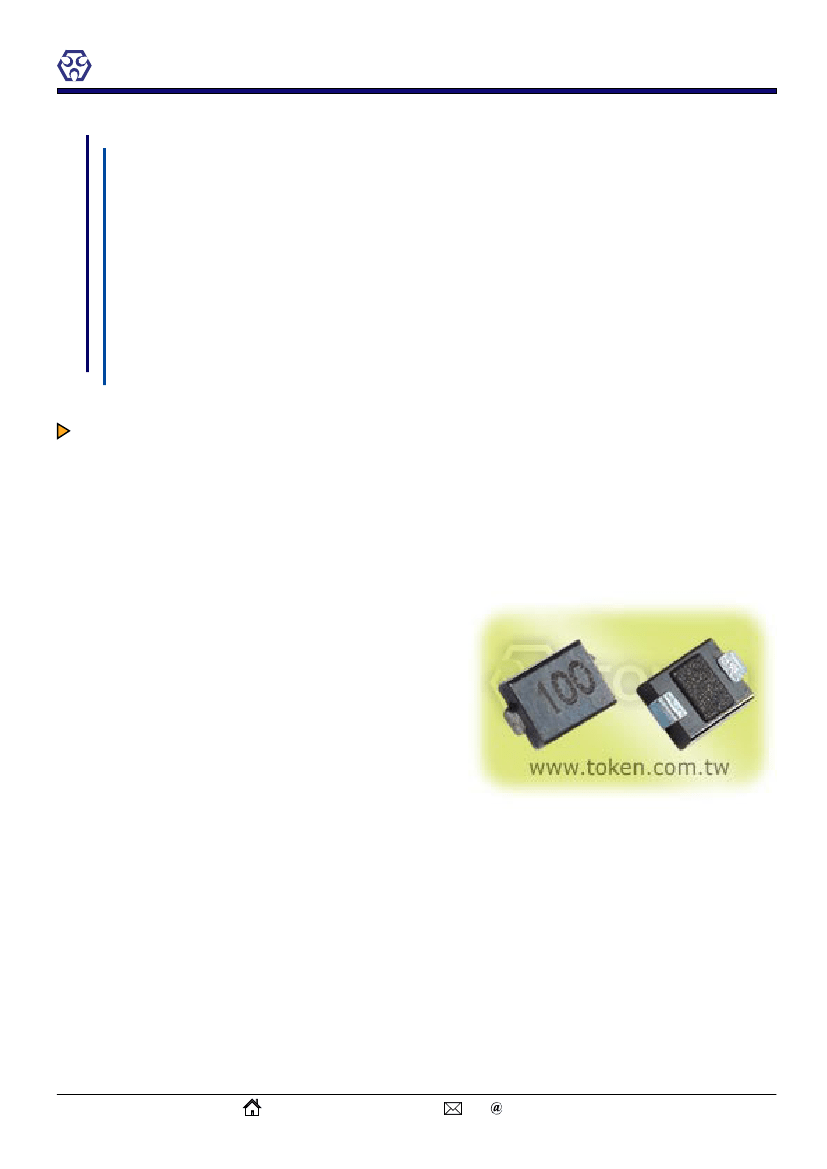

Token Chip Wirewound Inductor Molded Type - EC Series is primarily designed for choking power lines and
conform to the RoHS directive and Lead-free. Chip inductor can be customed designs and tighter tolerances
available on request.
Application of RF Chip Wirewound Inductor specific designs also available including different inductance values
and Q specifications adjusted to frequency requirements.
A Brief Introduction to the Product
SMD Inductors EC322522N and EC453232N
series are revolutionary, high reliable wire wound
components for communication, equipment,
instruments, video & audio have been developed
in response to the trend toward higher density
mounting of inductor parts in electric circuits.
Operating Temperature
- Range: -25 ~ +85 °C.
Features
- Lead-free materials is used for the plating on the terminals.
- The product uses metal terminals, which realize excellent connection reliability.
- The product has good heat durability that withstands lead-free compatible reflow soldering conditions.
- High resistance to heat, humidity, mechanical shocks and presser. Accurate dimensions for automatically
surface mounted.
Applications
TREC series high reliable wire would chip inductors for communication, equipment, instrument, video
& audio have been developed in response to the trend toward higher density mounting of parts in electric
circuits.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 05
TOKEN
A
TREC Chip Wire Wound RF Inductors

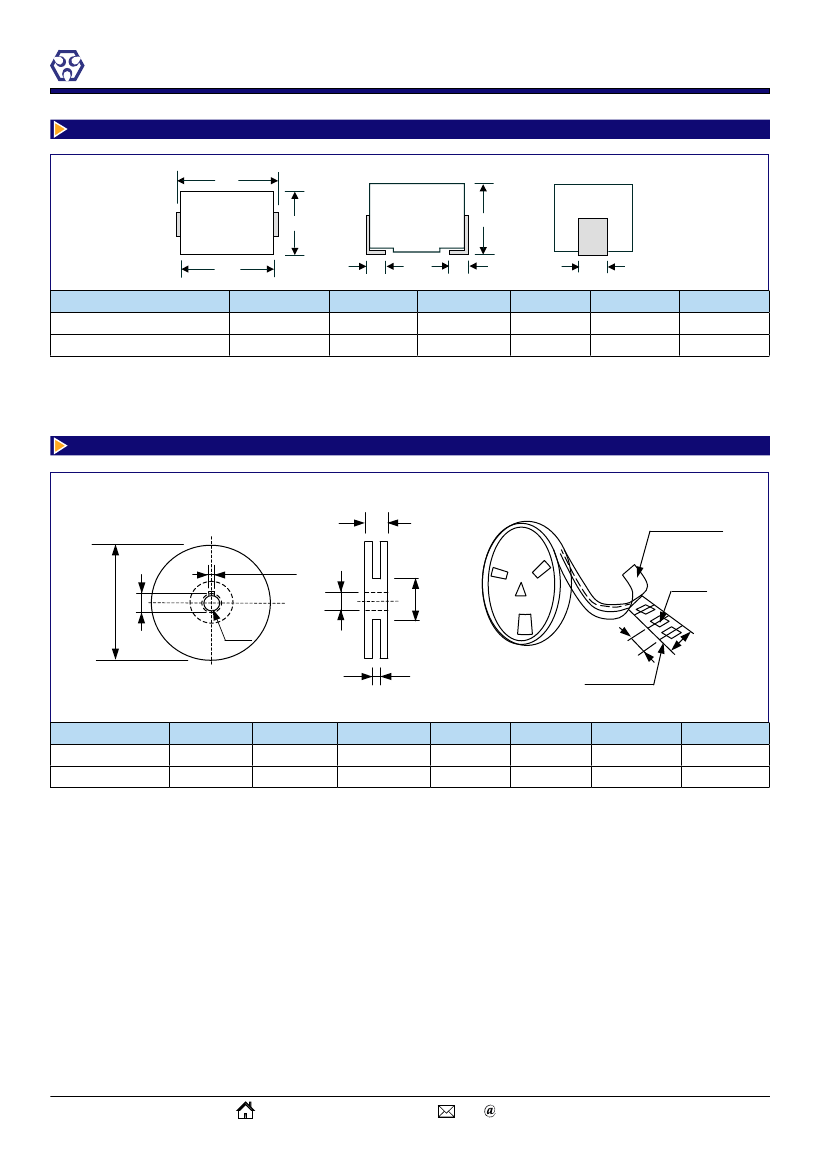

TREC322522N, TREC453232N - Configurations & Dimensions
B
D
C
E
E
F
Type
TREC322522N(1210)
TREC453232N(1812)
A
3.2 ± 0.4
4.5 ± 0.4
B
2.5 ± 0.2
3.2 ± 0.2
C
2.9 ± 0.3
4.2 ± 0.3
D
2.2 ± 0.2
3.2 ± 0.2
E
0.6 ± 0.2
1.0 ± 0.2
F
1.0 ± 0.2
1.2 ± 0.2
TREC322522N, TREC453232N - Reel & Packaging
T
2.0±0.5
A B
ΦC
G
Tape
ΦC
N
Adhesive Tape
Cave
P
D
Type
8mm
12mm
A
178
178
S
21.0±0.8
21.0±0.8
C
13.0±0.5
13.0±0.5
D
8
10
G
10 max
14 max
N
50 min
50 min
T
14.4 max
14.4 max
02 of 05
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
Part No.
TREC453232N - 1R0K
TREC453232N - 1R2K
TREC453232N - 1R5K
TREC453232N - 1R8K
TREC453232N - 2R2K
TREC453232N - 2R7K
TREC453232N - 3R3K
TREC453232N - 3R9K
TREC453232N - 4R7K
TREC453232N - 5R6K
TREC453232N - 6R8K
TREC453232N - 8R2K
TREC453232N - 100K
TREC453232N - 120K
TREC453232N - 150K
TREC453232N - 180K
TREC453232N - 220K
TREC453232N - 270K
TREC453232N - 330K
TREC453232N - 390K
TREC453232N - 470K
TREC453232N - 560K
TREC453232N - 680K
TREC453232N - 820K
TREC453232N - 101K
TREC453232N - 121K
TREC453232N - 151K
TREC453232N - 181K
TREC453232N - 221K
TREC453232N - 271K
TREC453232N - 331K
TREC Chip Wire Wound RF Inductors
Inductance
(µH)
1.0 ± 10%
1.2 ± 10%
1.5 ± 10%
1.8 ± 10%
2.2 ± 10%
2.7 ± 10%
3.3 ± 10%
3.9 ± 10%
4.7 ± 10%
5.6 ± 10%
6.8 ± 10%
8.2 ± 10%
10 ± 10%
12 ± 10%
15 ± 10%
18 ± 10%
22 ± 10%
27 ± 10%
33 ± 10%
39 ± 10%
47 ± 10%
56 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
120 ± 10%
150 ± 10%
180 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
Q
(min)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
20
20
20
20
20
20
20
Test Freq.
(MHZ)
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
SRF
(MHz)(min)
180
160
130
100
80
60
45
40
35
30
28
25
22
21
20
19
18
16
14
12
11.5
11
10
9
8
7.5
7
6.5
5.5
5
4
DCR
(Ω)(max)
0.11
0.12
0.15
0.16
0.18
0.20
0.22
0.24
0.27
0.30
0.35
0.40
0.50
0.60
0.70
0.80
0.90
1.20
1.40
1.60
1.90
2.20
2.60
3.50
4.00
4.50
6.50
7.50
9.00
11.0
13.0
IDC
(mA)
1050
1000
950
900
850
800
750
700
650
650
600
600
550
500
450
400
370
330
300
280
260
240
220
200
180
160
140
120
120
100
90
TREC453232N (EIA 1812) - Electrical Characteristics
Note: 1.Test equipment L, Q: HP4285A +16034E, or equivalent.
2.SRF: HP8753C NETWORK ANALYZER, or equivalent.
3.DC resistance: AX-111A DIGITAL MILLIOHM METER, or equivalent.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 05
TOKEN
Part No.
TREC322522N - 1R0M
TREC322522N - 1R5M
TREC322522N - 2R2M
TREC322522N - 3R3M
TREC322522N - 4R7M
TREC322522N - 6R8M
TREC322522N - 100K
TREC322522N - 150K
TREC322522N - 220K
TREC322522N - 330K
TREC322522N - 390K
TREC322522N - 470K
TREC322522N - 680K
TREC322522N - 820K
TREC322522N - 101K
TREC Chip Wire Wound RF Inductors
Inductance
(µH)
1.0 ± 20%
1.5 ± 20%
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 10%
15 ± 10%
22 ± 10%
33 ± 10%
39 ± 10%
47 ± 10%
68 ± 10%
82 ± 10%
100 ± 10%
Q
(min)
10
10
10
10
10
10
15
15
15
15
15
15
15
15
15
Test Freq.
(MHZ)
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
SRF
(MHz)(min)
100
80
65
55
45
35
28
25
20
15
14
13
10
9
8
DCR
(Ω)(max)
0.156
0.195
0.260
0.325
0.520
0.650
1.105
1.690
2.600
3.640
4.500
5.460
8.450
8.710
10.14
IDC
(mA)
770
580
480
400
320
280
220
180
145
115
110
105
85
80
75
TREC322522N (EIA 1210) - Electrical Characteristics
Note: 1. Test equipment L, Q: HP4285A +16034E, or equivalent
2. SRF: HP8753C NETWORK ANALYZER, or equivalent.
3. DC resistance: AX-111A DIGITAL MILLIOHM METER, or equivalent.
TREC322522N, TREC453232N - Mechanical Performance Test
REQUIREMENTS
Terminal Strength
Vibration
Dropping
CHARACTERISTICS
No evidence of damage
Δ L/L shall be within ±3%.
No evidence of damage
Δ L/L shall be within ±3%.
No evidence of damage
TEST METHOD(DIS C 5321)
Terminals shall withstand a pull of 0.5Kgf
in a horizoninal direction
2 hours in each direction of X,Y,Z on p-Board
at a frequency range of 10-55-10HZ with
1.5mm amplitude
Dropping 1m over the ground of conctete or
cement
TREC322522N, TREC453232N - Electrical Performance Test
REQUIREMENTS
Resistance to Soldering Heat
Solderability
Dielectric with standing volt-
age
Insulation Resistance
CHARACTERISTICS
No evidence of damage
Δ L/L shall be within ±3%
More than 90% surface to
be covered with new soldering
No veridence of breakdown
resistor 1000 Mohm and over
No veidence of breakdown,
resistor 1000 Mohm and over
TEST METHOD(JIS C 5321)
Immerse in the solder (H63A) of 260±5°C for
10±1sec, leave for 2hrs at normal TEMP
AV100V 60 SEC.
DC500V 30 SEC.
DC 500V 30 SEC.
04 of 05
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
REQUIREMENTS
LOW TEMP. Characteristics
TREC Chip Wire Wound RF Inductors
TREC322522N, TREC453232N - Climatic Test
CHARACTERISTICS
No evidence of damage,
Δ L/L within ±5%,
Q/Q within ±30%
No evidence of damage,
Δ L/L within ±5
Δ L/L within ±3%
No evidence of damage,
Δ L/L within ±5%,
Q/Q within ±30
No evidence of damage,Δ L/L
within ±5%,Q/Q within ±30
TEST METHOD(JIS C 5321)
Immerse in the solder (H63A)of 260±5°C
for 10±1sec, leave for 2hrs at normal TEMP.
Keep for 30 min. at TEMP.of -25°C~+85°
Cat 5 cycle case of TEMP. change from low to
high and V.V.
Δ L/L to be measured at the temperature
of between -25°C and +85°C
TEMP.40±2°C,Humidity 90~95% 96± 2hrs,
measurements shall be performed after 1~2hrs
at normal TEMP..
Leave for 96±2hrs in a bath of
TEMP.85±2°C,measurements shall be
performed after 1~2hrs at normal TEMP.
TEMP. Cycling
Temperature Characteristics
Moiisture load Characteristics
High TEMP. overload
Characteristics
How to Order
TREC322522N
1R0
M
Part Number: TREC322522N
TREC453232N
Inductance:
Code
R10
1R0
100
101
102
103
Inductance
Tolerance
Code
Tolerance
0.10μH
1.00μH
10.00×10
0
μH
10.00×10
1
μH
10.00×10
2
μH
10.00×10
3
μH
K
M
10%
20%
Back to 1st Page - Chip Wire Wound Inductors (TREC)
Version 2010
http://www.token.com.tw/
rfq token.com.tw
05 of 05
