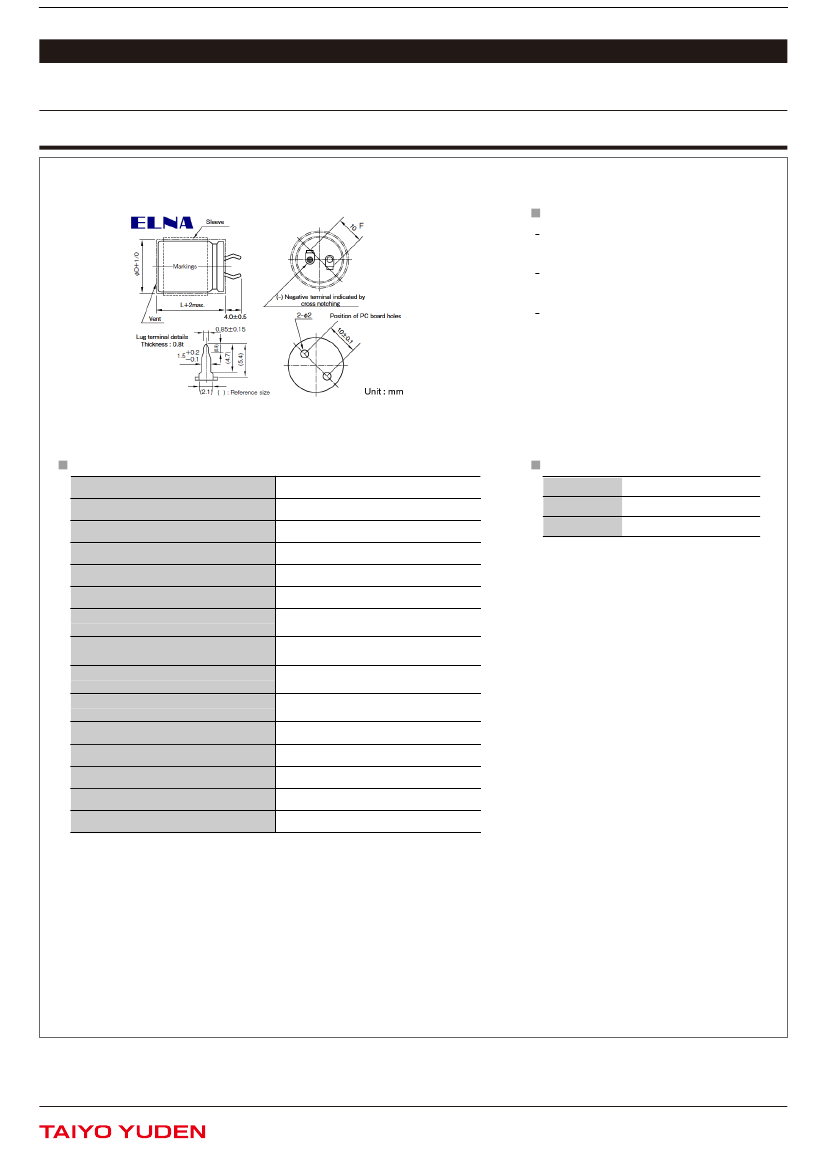

Spec Sheet
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS[LAX]
LAX-250V121MS21#B
Features
Item Summary
120uF±20%, 250V, φ22x20mm, Leaded
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
100
Products characteristics table
Capacitance
Rated Voltage
tanδ (max)
Operating Temp. Range
Leakage current (min)
Rated Ripple (max)
Impedance ratio
___[-25℃/+20℃]
Endurance
___[Test time]
Endurance
___[Capacitance change]
Endurance
___[tanδchange]
Shape
Type
RoHS Compliance (10 subst.)
REACH Compliance (191 subst.)
Soldering
Snap-in
Long life
Yes
Yes
Flow
200% or less of initial specified value
Within ±20% of initial value
5000 hr at 105 ℃
120 uF ± 20 %
250 V
0.15
-25 to +105 ℃
519 uA at 5 min
670 mArms at 120 Hz / 105 ℃
4
External Dimensions
Dimension φD
Dimension L
Dimension P (F)
φ22 +1/-0 mm
Max 20 +2 mm
Typ 10 mm
2019.06.03
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
■
Notice for ELNA Products
Please read this notice before using the ELNA products.
REMINDERS
!
■
Please conduct validation and verification of the ELNA products in actual condition of mounting and operating environment before using the
ELNA products.
■
The product listed in this spec sheet is intended for use in general electronic equipment (e.g., AV equipment, OA equipment, home electric
appliances, office equipment, information and communication equipment including, without limitation, mobile phone, and PC), industrial
equipment, automotive interior applications, and highly public information network equipment including, without limitation, telephone
exchange, and base station, etc. Please be sure to contact TAIYO YUDEN for further information before using the product for any equipment
which may directly cause loss of human life or bodily injury (e.g., transportation equipment including, without limitation, automotive
powertrain control system, train control system, and ship control system, traffic signal equipment, disaster prevention equipment, medical
equipment classified as Class I, II or III by IMDRF).
Please do not incorporate the ELNA products into any equipment requiring high levels of safety and/or reliability (e.g., aerospace equipment,
aviation equipment, medical equipment classified as Class IV by IMDRF, nuclear control equipment, undersea equipment, military equipment).
When the ELNA products are used even for high safety and/or reliability‐required devices or circuits of general electronic equipment, it is
strongly recommended to perform a thorough safety evaluation prior to use of the ELNA products and to install a protection circuit as
necessary.
Please note that unless you obtain prior written consent of TAIYO YUDEN, TAIYO YUDEN shall not be in any way responsible for any damages
incurred by you or third parties arising from use of the product listed in this spec sheet for any equipment requiring inquiry to TAIYO YUDEN or
prohibited for use by TAIYO YUDEN as described above.
■
Information contained in this spec sheet is intended to convey examples of typical performances and/or applications of the ELNA products and
is not intended to make any warranty with respect to the intellectual property rights or any other related rights of TAIYO YUDEN or any third
parties nor grant any license under such rights.
■
Please note that the scope of warranty for the ELNA products is limited to the delivered ELNA products themselves and TAIYO YUDEN shall not
be in any way responsible for any damages resulting from a fault or defect in the ELNA products. Notwithstanding the foregoing, if there is a
written agreement (e.g., supply and purchase agreement, quality assurance agreement) signed by TAIYO YUDEN and your company, TAIYO
YUDEN will warrant the ELNA products in accordance with such agreement.
■
The contents of this spec sheet are applicable to the ELNA products which are purchased from our sales offices or authorized distributors
(hereinafter “TAIYO YUDEN’s official sales channel”). Please note that the contents of this spec sheet are not applicable to the ELNA products
purchased from any seller other than TAIYO YUDEN’s official sales channel.
■
Caution for Export
The product listed in this spec sheet may require specific procedures for export according to “U.S. Export Administration Regulations”, “Foreign
Exchange and Foreign Trade Control Law” of Japan, and other applicable regulations. Should you have any questions on this matter, please
contact our sales staff.
