TSS309SB-J datasheet, PDF - EEWORLD Datasheet

TSS309SB-J: DescriptionSpecial Switch, SPST, Vertical, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size377KB，3 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric View All

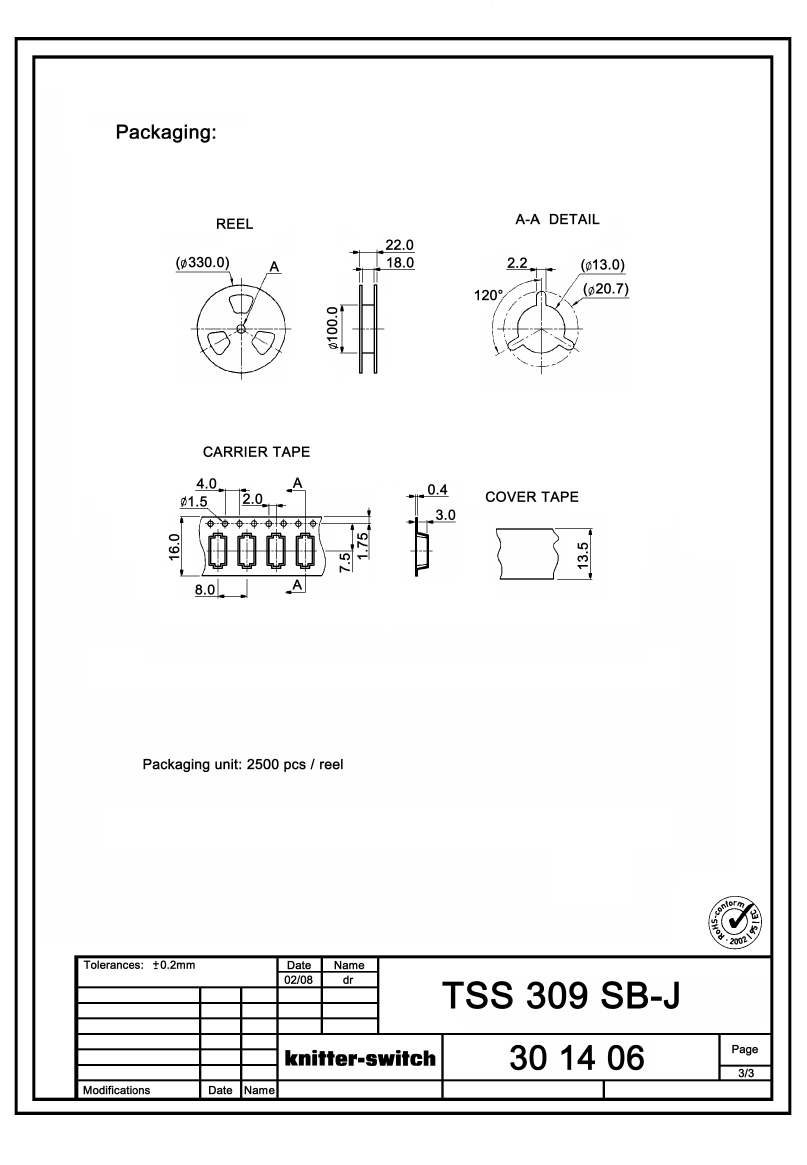

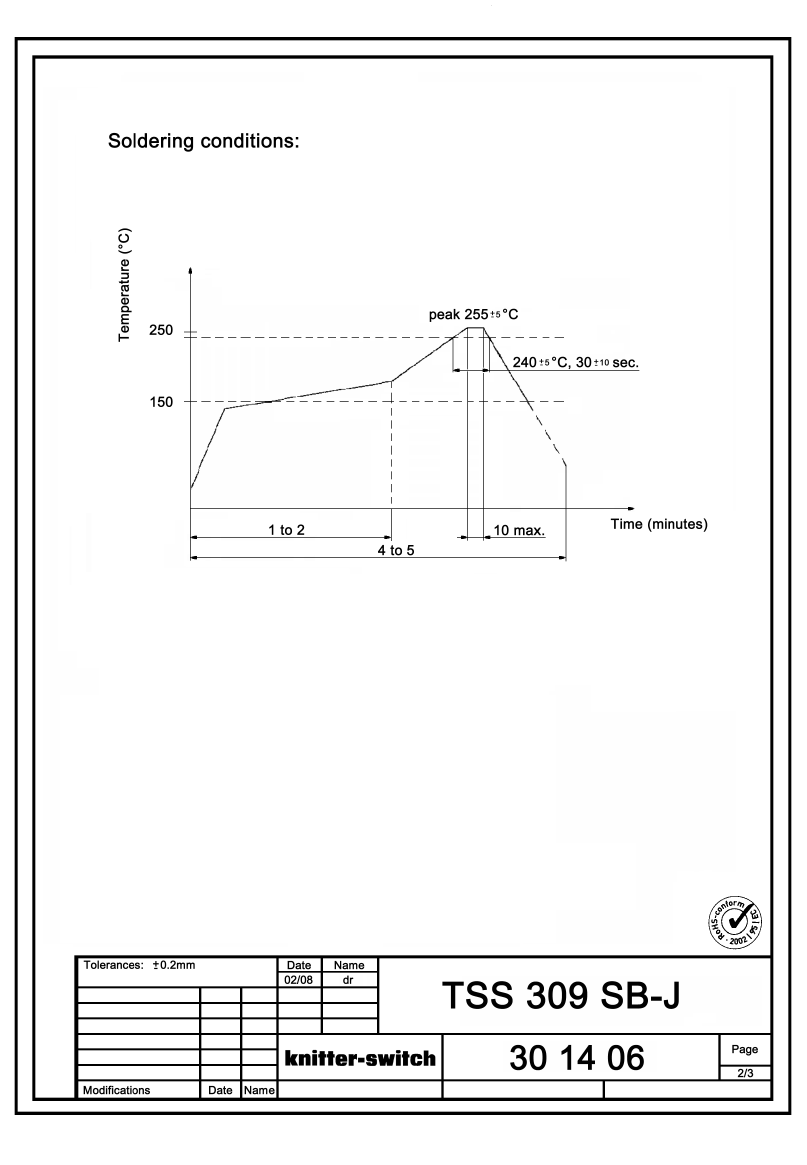

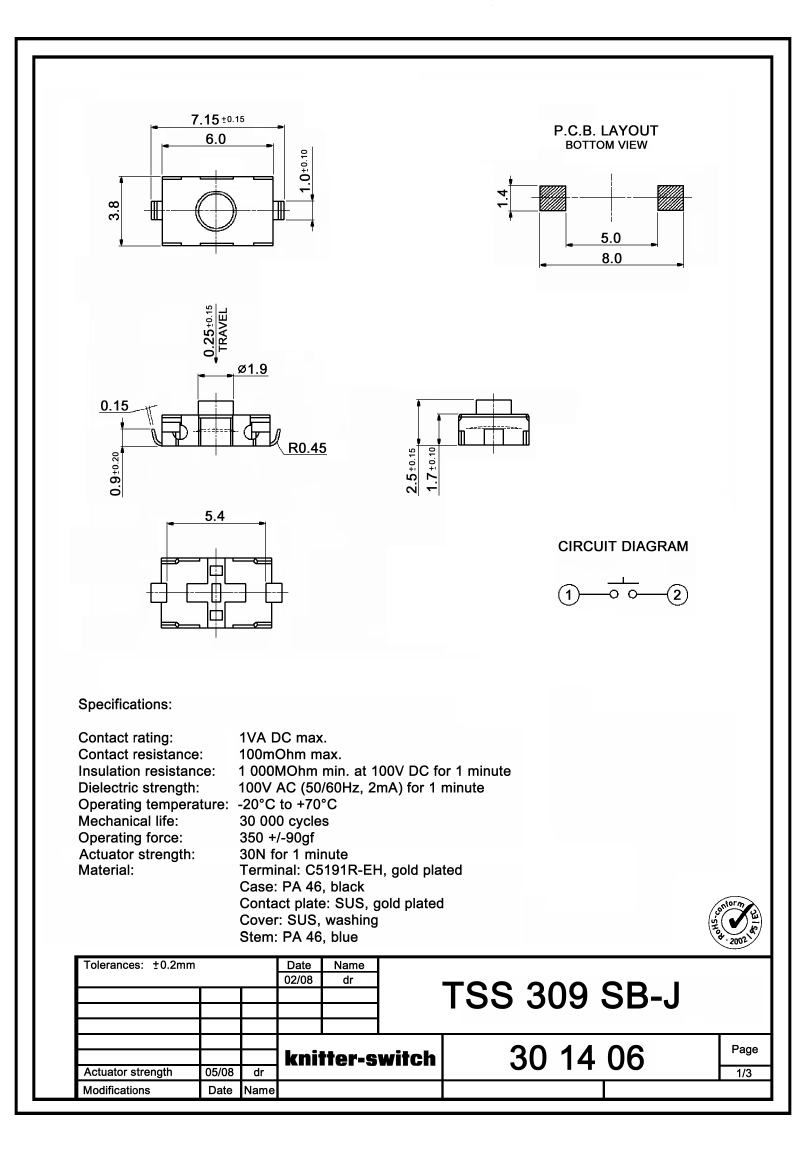

TSS309SB-J Overview

Special Switch, SPST, Vertical, Solder Terminal, Surface Mount-straight

Parameter Name	Attribute value
Objectid	307997543
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLUE
Actuator length	0.031 inch
Actuator material	POLYAMIDE
Actuator stroke	0.254 mm
Actuator type	PUSHBUTTON
body width	3.81 mm
Body color	BLACK
body height	1.7018 mm
Body length or diameter	7.1374 mm
center contact material	STAINLESS STEEL
Center contact plating	GOLD
Contact resistance	0.1 mΩ
Dielectric withstand voltage	100VAC V
End contact material	STAINLESS STEEL
End contact plating	GOLD
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	TSS
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER
