BD040-20-I-A-0200-0300-L-E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD040-20-I-A-0200-0300-L-E

BD040-20-I-A-0200-0300-L-E: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD040-20-I-A-0200-0300-L-E Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BD040-20-I-A-0200-0300-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313796089
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TUBE WITH CAP
body width	0.134 inch
subject depth	0.118 inch
body length	0.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BD040
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.5024 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Evacuation force-minimum value	.15012 N

Preview

Download Datasheet

View All

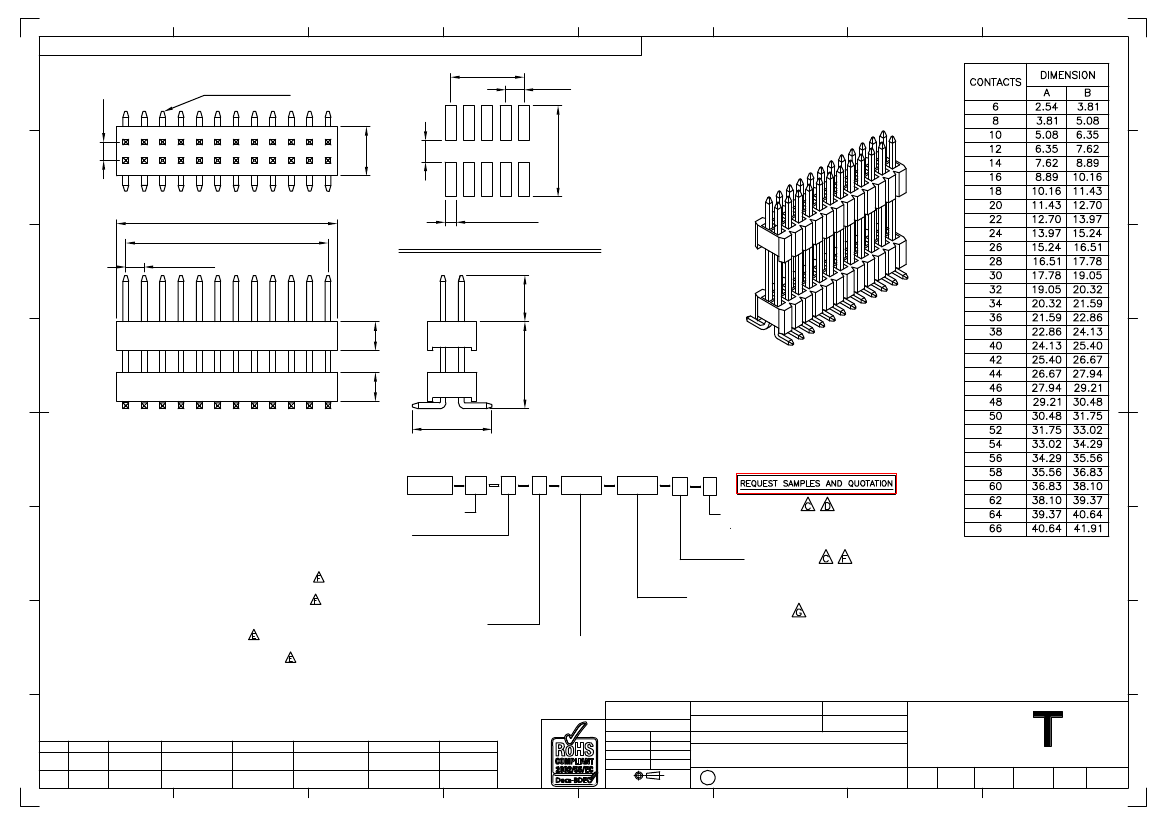

Global Connector Technology Ltd. - BD040: 1.27mm PITCH ELEVATED PIN HEADER, DUAL ROW, SURFACE MOUNT, VERTICAL

1.27

0.40 SQ PIN (Typ)

1.27

Typ. (Non-Accum)

6.50

3.4

1.5

B±0.38

A±0.25

1.27 (Typ.)

0.65 (Typ)

RECOMMENDED PCB LAYOUT

'H'

5.5

'H'

SPECIFICATIONS

规格:

Ordering Grid

BD040 XX X

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

No. of Contacts

06 to 66

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

Contact Plating

CONTACT MATERIAL

端子物料：

COPPER ALLOY

A = Gold Flash All Over

INSULATOR MATERIAL

绝缘½物料

B = Selective Gold Flash Contact Area/

Tin On Tail

OPTIONS

可选物料

: POLYESTER

聚酯

C = Tin All Over

LCP, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = A, B, L, E)

G = 10µ" Gold Contact Area/Tin On Tail

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

I = 30µ" Gold Contact Area/Tin On Tail

NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = K)

Standard = Gold Flash All Over

SOLDERING PROCESS

可焊性

LCP (OPTION

可选物料

) -

Insulator Height 'H'

IR REFLOW

回流焊

: 260°C for 10 sec.

K = 1.00mm

A = 1.50mm

WAVE

波峰焊

: 250°C for 5-10 sec

B = 2.00mm

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

L = 2.50mm

NYLON 6T (OPTION

可选物料

) -

E = 2.54mm

IR REFLOW

回流焊

: 260°C for 10 sec.

Standard = 2.54mm

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD050

BD055

BD060

BD064

BD065

BD067

BD091

BD092

DRAWING DIMENSION

DETAIL RELEASE TABLE ADDED

REV

17/04/09

DATE 21/12/07

STANDARD INSULATOR

PACKING OPTIONS SOLDER TEMP & MATES

INSULATOR MATERIAL

DIMENSION TABLE

MATERIAL & PACKING

UPDATED FOR SPECIFIC

WITH INFO. UPDATED

CHANGED

REV B REMOVED

OPTIONS CHANGED

INSULATOR HEIGHTS

XXXX

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube (Standard - where total height exceeds 25mm)

E = Tube with Cap

Insulator Material

L = LCP (Insulator H = A, B, L, E)

N = Nylon 6T (Insulator H = K)

Dimension D (1/100mm)

(Stack Height)

Minimum = 2 x 'H'

Please Specify Dimension D

e.g. 2.5mm = 0250

Tol +/- 0.2mm

Dimension C (1/100mm)

(Post Height)

Standard - 2.00mm = 0200

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

X.X ± 0.20

.X°±2°

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

BD040

Description:-

21 DEC 07

1.27mm PITCH ELEVATED PIN HEADER, DUAL ROW,

SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

27/04/09

20/05/09

27/07/09

07/08/09

18/08/10

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

E & OE

Sheet No.

1/1
