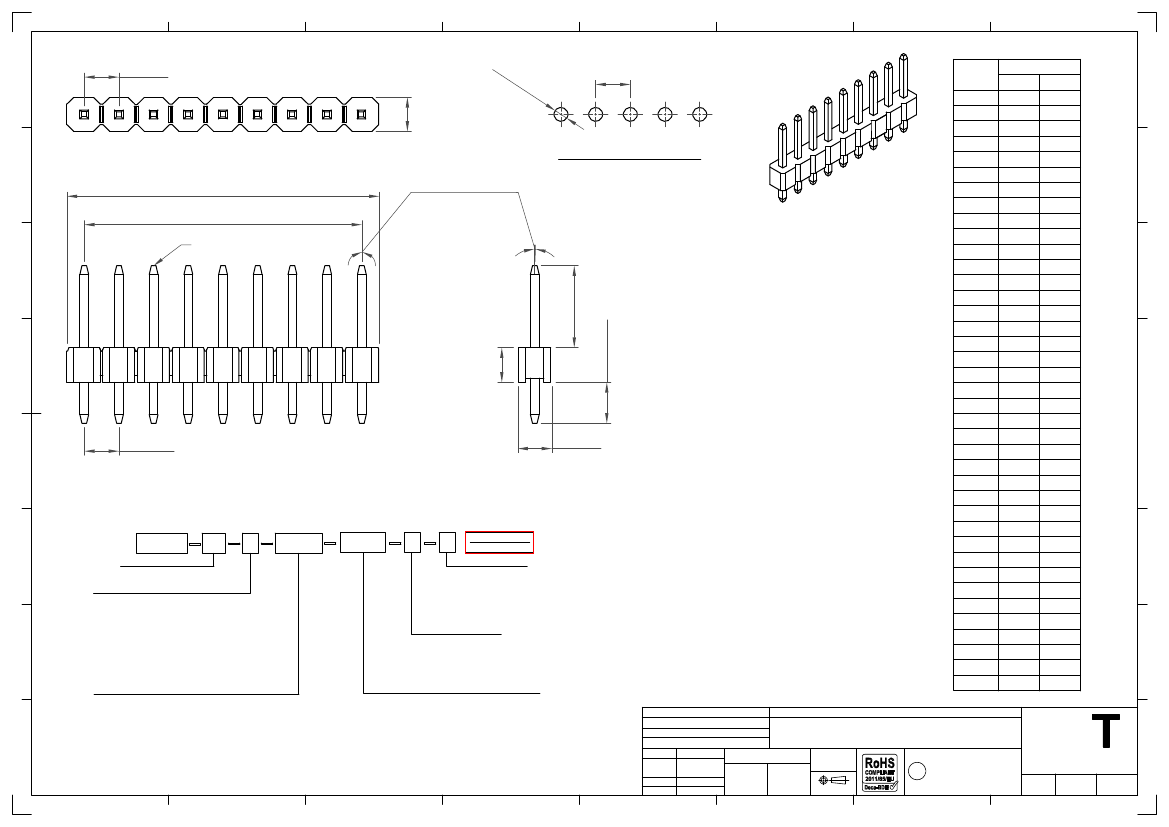

H
2.54
2.50
Ø1
.02
2.54
Number of
Contacts
2
3
4
Dimensions
A
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
91.44
93.98
96.52
99.06
B
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
91.44
93.98
96.52
99.06
101.60
Recommended PCB Layout
G
5
6
7
8
9
B±0.38
A±0.25
Pin 0.64 sq.
2° Max. Sway & Toe
(Either Direction At The top)
Specifications
规格
Insulator
绝缘½
:
Standard
标准
: Polyamide, Nylon 6T, UL94V-0
Options
可选
: Polymer, LCP, UL94V-0
Polyester, PBT, UL94V-0
Contact
接触
: Copper Alloy
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
F
C±0.2
2.54
D±0.2
Plating
电镀
Contact
接触
: See Ordering Grid
Electrical
电气
Current Rating
电流额定值
: 3 Amp Per Pin
Contact Resistance
接触电阻值
: 20 mΩ max.
Insulation Resistance
绝缘电阻值
: 1000 MΩ min.
Dielectric Withstand Voltage
耐电压
: 600 V AC
Mechanical & Environmental
机械
&
环境
Operating Temperature
工½温度
: -40°C to +105°C
Soldering Process
可焊性
Nylon 6T (Standard
标准物料
)
IR Reflow
回流焊
: 260°C for 10 sec.
Wave
波峰焊
: 230°C for 5-10 sec.
Manual Solder
人工焊接
: 350°C for 3-5sec
LCP (Option
可选物料
)
IR Reflow
回流焊
: 260°C for 10 sec.
Wave
波峰焊
: 250°C for 5-10 sec
Manual Solder
人工焊接
: 350°C for 3-5 sec
PBT (Option
可选物料
)
Manual Solder
人工焊接
: 330°C for 3-5sec
(Not suitable for hi-temp process
不适合高温制程
)
Mates with
配套之母座
(Subject to Pin Length
在端子长度适合的条件下
)
BG090 BG095 BG096 BG100 BG110
BG115 BG125 BG126 BG130 BG135
BG145 BG205 BG230
Part Number
Product Description
E
2.54
D
2.50
Ordering Grid
C
BG030
No. of Contacts
02 to 40
XX
X
XXXX
XXXX
X
X
Request Samples
and Quotation
B
Contact Plating
A = Gold Flash All Over
(Standard)
B = Selective Gold Flash Contact
Area/Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
L = Matt Tin
Dimension C
(1/100mm)
(Post Height)
0450 = 4.50mm
(Standard)
0650 = 6.50mm
(Standard)
Packing Options
G = Plastic Box
(Standard)
B = Tape & Reel with Cap
D = Tube
E = Tube with Cap
Insulator Material
N = Nylon 6T
(Standard)
P = PBT
L = LCP
Dimension D
(1/100mm)
(Tail Length)
0300 = 3.00mm
(Standard)
Or specify custom Tail Length
e.g. 0250 = 2.50mm
A
Or specify custom Post Height
e.g. 0250 = 2.50mm
BG030
Drawing Date
1st November 2006
By
Detail
Revision
Date
CC
BG030
G PCN
G2
13/04/17
Length
2.54mm pitch Pin Header
Single Row, Through-Hole, Vertical
Tolerances
(Except as Noted)
Angle
1
2
3
4
5
X.° ± 5°
X. ± 0.30
X.X° ± 2°
X.X ± 0.20
X.XX ± 0.15 X.XX° ± 1°
X.XXX ± 0.10 X.XXX° ± 0.5°
Units:
Metric (mm)
C
7
3rd Angle Projection
This drawing is confidential and
copyright of Global Connector
Technology, Ltd (GCT).
This drawing must not be copied or
disclosed without written consent.
E & OE
Global Connector Technology
GC
Drawn By
LYH
www.gct.co
Not to
Scale
Sheet No.
1/1
6
8
