BG130-34-A-0350-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG130-34-A-0350-N-D

BG130-34-A-0350-N-D: DescriptionBoard Connector, 34 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG130-34-A-0350-N-D Overview

Board Connector, 34 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,

BG130-34-A-0350-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304461003
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.118 inch
subject depth	0.335 inch
body length	3.431 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG130
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

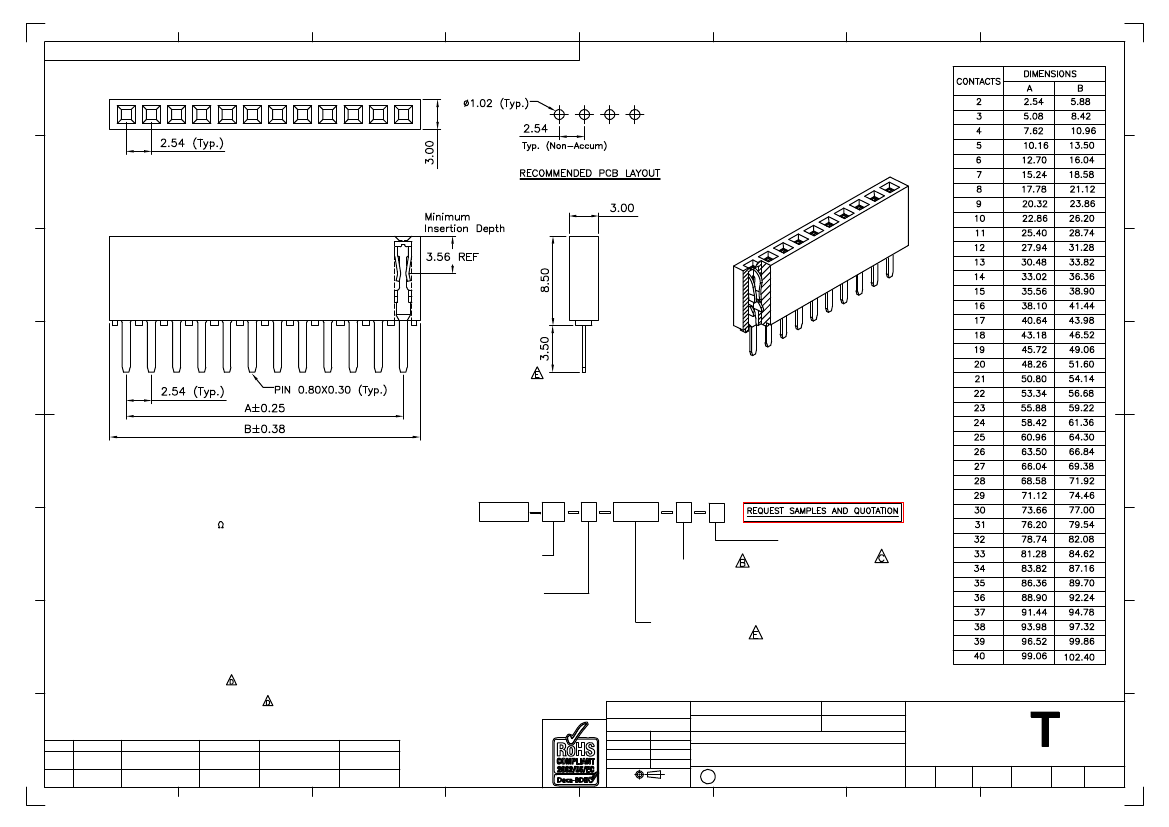

Global Connector Technology Ltd. - BG130: 2.54mm PITCH SOCKET, SINGLE ROW, THROUGH-HOLE, VERTICAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

CONTACT RESISTANCE

接触电阻值

: 20m Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG020

BG030

BG035

BG055

BG060

BG075

BG080

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

30/10/06

STANDARD INSULATOR

MATERIAL CHANGED

Ordering Grid

BG130

No. of Contacts

02 to 40

0350

Packing Options

D = Tube (Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

Contact Plating

A = Gold Flash All Over (Standard)

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Tail Length (1/100mm)

0350 = 3.50mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG130

Description:-

30 OCT 06

PACKING OPTIONS

CHANGED

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

AJO

SELECTABLE

LENGTH REMOVED

2.54mm PITCH SOCKET, SINGLE ROW,

THROUGH-HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

12/03/09

27/04/09

16/07/12

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
