Part Number

Search

12.94203

Description
Oscillator, 4MHz Nom
CategoryPassive components    oscillator
File Size137KB,1 Pages
ManufacturerGeyer Electronic E K
Environmental Compliance
Download Datasheet Parametric View All

12.94203 Overview

Oscillator, 4MHz Nom

12.94203 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid109759924
package instructionDILCC4,.2,200
Reach Compliance Codecompliant
Installation featuresSURFACE MOUNT
Number of terminals4
Nominal operating frequency4 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeDILCC4,.2,200
power supply5 V
Certification statusNot Qualified
Maximum slew rate40 mA
Nominal supply voltage5 V
surface mountYES

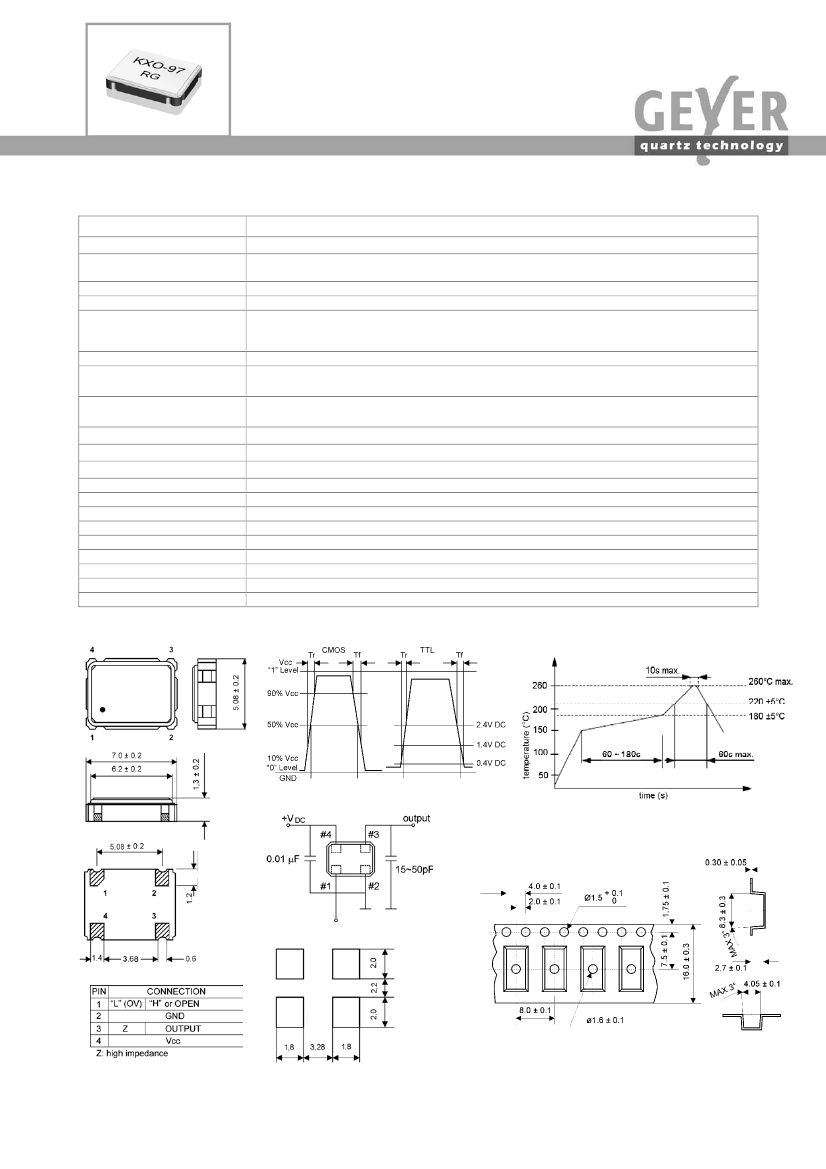

Clock Oscillator
model
frequency
frequency stability
at -20° ~ +70°C
operating temperature
storage temperature
symmetry
rise & fall time max.
"O" level max.
"1" level min.
input voltage Vcc
Input current
output load
start up time max.
tristate funcion
disable delay time
enable delay time
random jitter
peak to peak jitter
RoHS
contents of reel
part no.
Dimensions (mm):
Output waveform:
SMD-version
KXO-97
4,0 MHz
± 50 ppm
-20° ~ +70°C
-40° ~ +85°C
50% ± 10%
at 1,4V DC level
or ½ Vcc level
TTL: 6 ns / CMOS: 10 ns
+ 0,4V (TTL)
+ 0,5V (CMOS)
+2,4 (TTL)
Vcc -0,5V (CMOS)
+ 5V DC ± 10%
15 ~ 40 mA
10 TTL gates 50 pF
10 ms
yes
100 ns max.
4 ms max.
7ps max.
40ps max.
according to RoHS 2011/65/EU
1000 pcs.
12.94203
Reflow soldering condition:
5V
Test circuit:
Tape specifications:
Suggested soldering pad:
reel diameter 330 mm
GEYER ELECTRONIC
e.K. Lochhamer Schlag 5 82166 Gräfelfing/München
Tel. +49 89 546868-0 quartz@geyer-electronic.de www.geyer-electronic.de
Version 18.04.2011
