50500-00451-001 datasheet, PDF

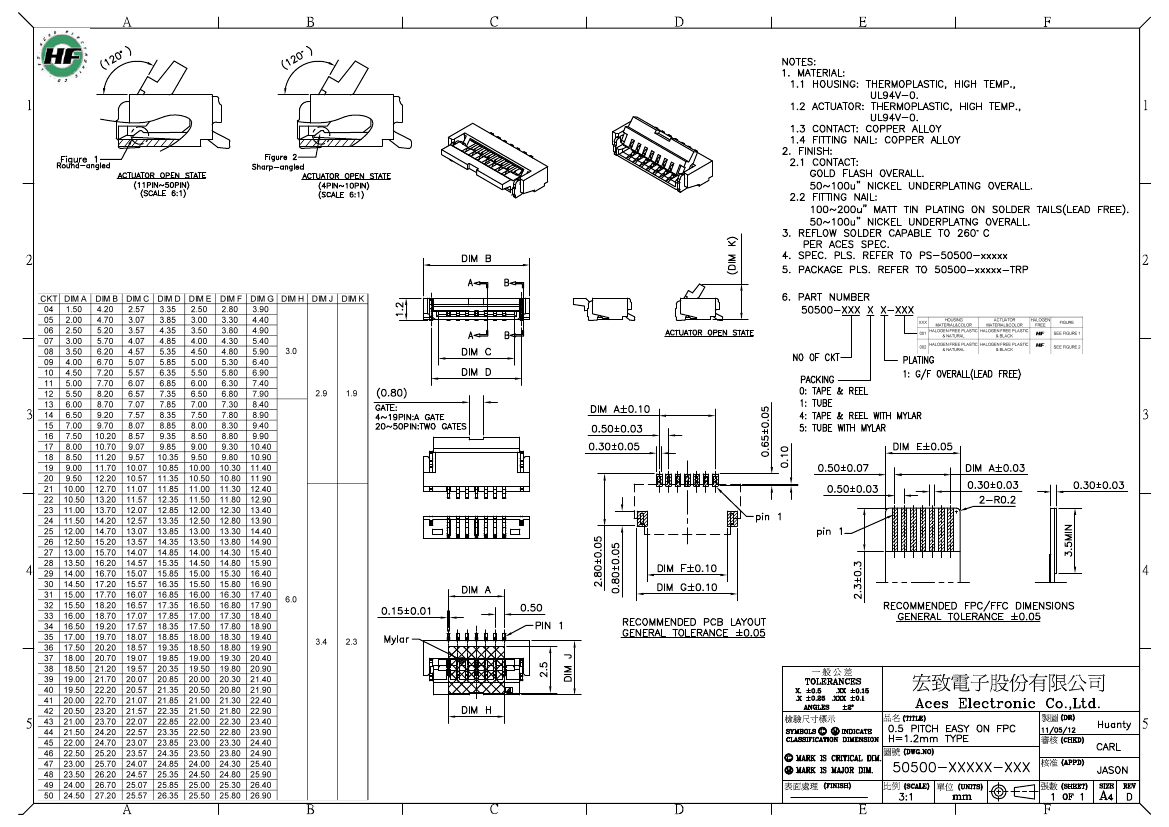

50500-00451-001: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size237KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50500-00451-001 Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305567441
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.047 inch
subject depth	0.114 inch
body length	0.165 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	100 mΩ
Dielectric withstand voltage	150VAC V
Durability	20 Cycles
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation option 2	SLIDE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
