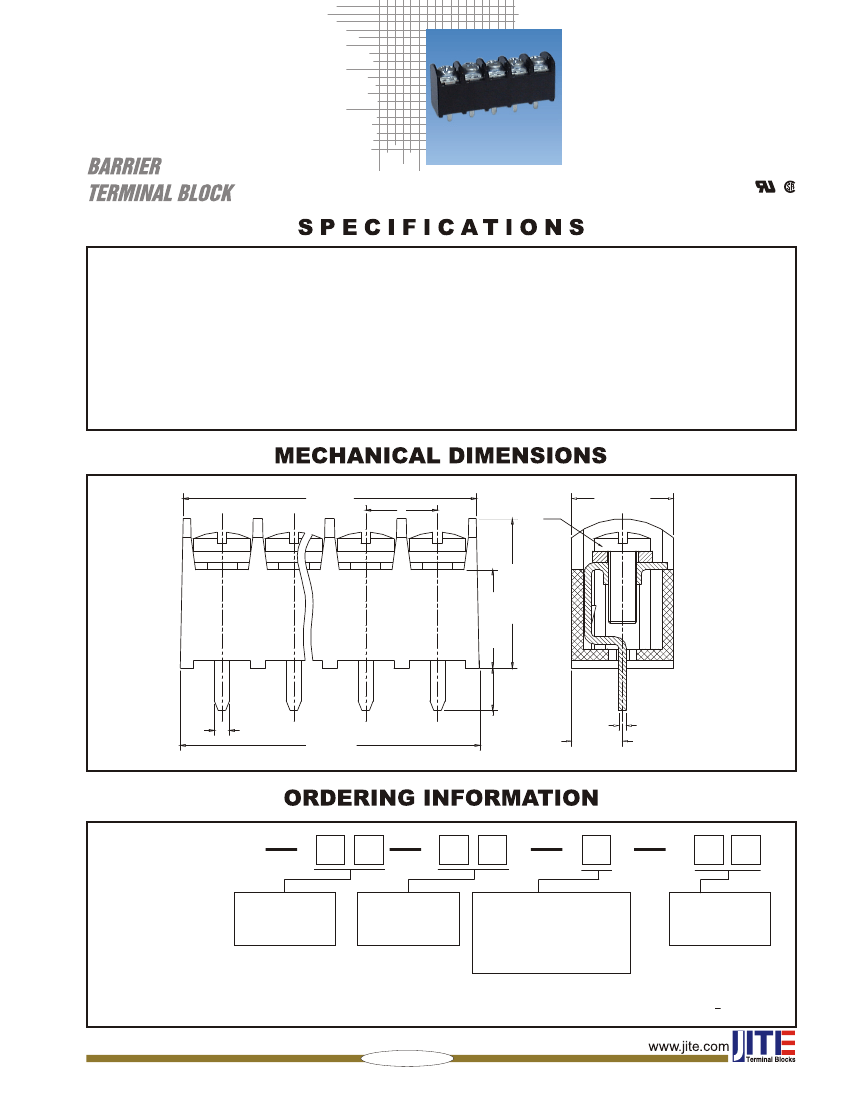

TYPE BTB651
WIRE ENTRANCE: .......................Parallel to PCB
CENTER SPACING: ......................7.62mm / 0.300in.
WIRE RANGE: ..............................14--22 AWG
ELECTRICAL RATING: .................300V, 15A
BREAKDOWN VOLTAGE: .............4,000V
MOLDING: .....................................Thermoplastic,
UL94, V-0
Self Extinguishing
MAX. TORQUE: .............................5 lb-in.
PRESSURE PLATE:.......................Steel, Ni Plated
SCREW: ........................................ M3, Steel, Ni Plated
TERMINAL : ...................................Brass, Tin Plated
OPERATING: ..................................-40
O
C to +105
O
C
-40
O
F to +221
O
F
MAX. SOLDERING: ........................260
O
C , +500
O
F
for 5 seconds
L+0.80
P
M3
10.80(.43)
4.50(.18)
1.60(.07)
L+1.50
0.80(.03)
5.40(.21)
BTB651
Style
00 to 99
0 0
Poles
02 to 20
Color
0=Light Grey 1=Black
2=Blue
3=Green
4=Dark Grey 5=Milk White
M
Options*
Options*:
M1~M9, For Customer Modification (Please provide sketch).
If more than one option is required, please separate each option with a dash ( ).
B-05-00-V1
P = Center to Center Spacing
Length of Connector (L)
L = number of Poles X Center Spacing
Dimensions: mm (in.)
10.40(.41)
15.80(.62)
