NSTEW561M250V35X41

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 560uF, CHASSIS MOUNT, RADIAL LEADED, CAN
CategoryPassive components    capacitor
File Size59KB，3 Pages
ManufacturerNIC Components Corp
Download Datasheet Parametric Compare View All

NSTEW561M250V35X41 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 560uF, CHASSIS MOUNT, RADIAL LEADED, CAN

NSTEW561M250V35X41 Parametric

Parameter NameAttribute value
Objectid1943604231
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance560 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR263 mΩ
leakage current1.122497 mA
Manufacturer's serial numberNSTEW
Installation featuresCHASSIS MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)250 V
ripple current1300 mA
surface mountNO
Terminal shapeBINDING POST

Preview

Download Datasheet

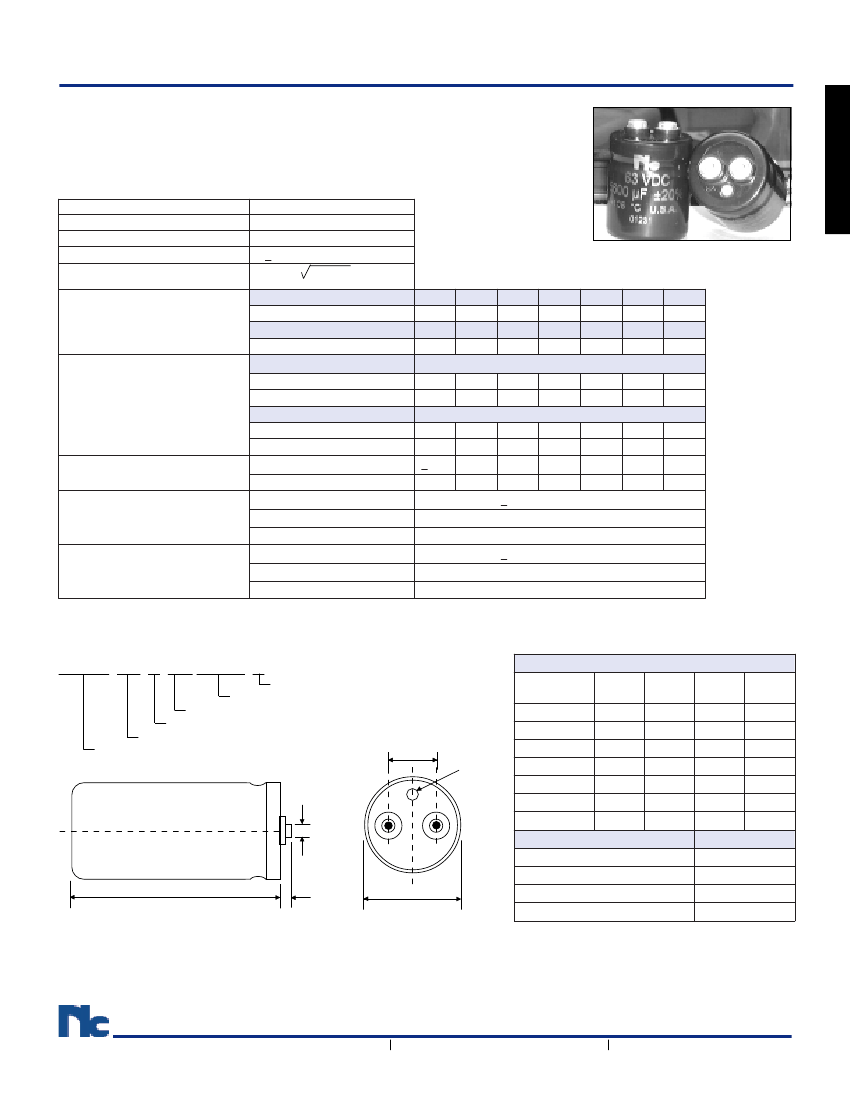

Screw Terminal Aluminum Electrolytic Capacitors
FEATURES
•
General Purpose, 105°C Temperature Rating
•
Available in Wide Range of High CV Values
•
Long Life (2,000 hours) at Rated Temperature and Ripple Current
SPECIFICATIONS
Operating Temperature Range
Rated Working Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Max. Leakage Current
After 5 Minutes (20
o
C)
-40
o
C ~ +105
o
C
16 ~ 450Vdc
220
µ
F ~
1.0
F
+ 20% (M) at 120Hz, +20°C
3 C(
µ
F)V (
µ
A)
W.V. (Vdc)
S.V. (Vdc)
W.V. (Vdc)
S.V. (Vdc)
Voltage Rating
Ripple Current Frequency Correction
Factors
Frequency (Hz)
Multiplier @ 105°C
Voltage Rating
Frequency (Hz)
Multiplier @ 105°C
Temperature (°C)
Multiplier
Capacitance Change
Load Life Test
2,000 Hours @ 105°C
Shelf Life Test
No Load
1,000 Hours @ 105°C
Tan
δ
& ESR
Leakage Current
Capacitance Change
Tan
δ
& ESR
Leakage Current
50
0.9
50
0.75
< +45
2.35
60
0.95
60
0.8
+60
2.2
16
20
250
300
25
32
350
400
35
44
450
500
50
63
-
-
16 ~ 100Vdc
120
500
1K
1.0
1.05
1.08
250 ~ 450Vdc
120
500
1K
1.0
1.2
1.25
+70
2.0
+85
1.75
+105
1.0
10K
1.15
10K
1.4
-
-
63
79
-
-
80
100
-
-
NSTEW Series
LEADED
Surge Voltage
100
125
-
-
50K
1.15
50K
1.4
-
-
Ripple Current Temperature Correction
Factors
Within + 20% of initial measured value
Less than 200% of the specified maximum value
Less than the specified maximum value
Within + 20% of initial measured value
Less than 200% of the specified maximum value
Less than the specified maximum value
PART NUMBERING SYSTEM
NSTEW 474 M 16V 76X104 M
Optional Terminal Code
Case Size (mm)
Voltage Rating
Tolerance Code
Capacitance Code
S±
Thread
Terminal Specifications (mm)
Code
-
L
M
H
J
X
Y
Can Diameter
35
52
64
76
Thread
Depth
9.5
5.5
9.5
11.9
8.7
11.9
8.7
h ± 0.79
6.4
1.6
6.4
6.4
2.8
6.4
2.8
t ± 0.25
8.0
8.0
8.0
17.4
17.4
17.4
17.4
10-32 NF -2B*
Series
0.5mm
Vent
10-32 NF-2B
M5
1/4-28 NF-2B
1/4-28 NF-2B
M6
M6
t
Terminal Spacing
12.7 ± 0.5
21.9 ± 0.5
28.6 ± 0.5
31.8 ± 0.5
L ± 2.0mm
h
D ± 1.5mm
®
See Standard Values and Case Size Tables for Dimensions
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com
121
