Ribbon Cable connector Compliant with MIL Standard
HIF3B Series
sFeatures
1. Product Compliant with MIL Standard
HIF3B series has been developed as a product compliant with MIL
standard, and used for wide applications.
2. UL Approval Product
HIF3B series connectors are UL approved.
3. Mechanism to Prevent Mis-insertion
This connector is equipped with the mechanism to prevent Mis-
insertion as follows.
1
The system provides the convex area to insert the guide-key on the
pin header side, and to guide it in combination with the socket
convex area (MIL standard).
2
The system embeds and guides the polarizing key in the socket holes.
4. Applicable Cable AWG#28
The applicable cable is UL2651 AWG#28 flat cable (7 cores./
0.127mm, jacket dia. 0.9±0.1mm).
sProduct
Specifications
Rating
Current rating : 1A
Operating Temperature Range :
–55 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range : 40
to
70% (Note 2)
Condition
500V DC
650V AC/1 minute
0.1A
Voltage rating : 200V AC Operating Moisture Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M
ohms
min.
Specification
No flashover or insulation breakdown.
15m
ohms
max.
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Flow: 260ç for 10 seconds
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Part
Insulator
D
Socket Contact
DA
Pin header contact
Copper alloy
Brass
Material
PBT
Beryllium copper
Connection area
Connection area
Connection area
Connection area
Finish
Black
Gold plated
Gold plated
Gold plated
Tin lead plated
–––––––
–––––––
Remarks
UL94V-0
Selective Gold plated
B15
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sOrdering
Information
qSocket
HIF 3B -
*
D A - 2.54 R
q
w
e
: HIF
: 3B, 3BA, 3BB (50, 60, 64 contacts only)
r
t
y
u
q
Series Name
w
Series No.
e
Number of contacts : 16, 20, 26, 30, 34, 40, 50, 60, 64
r
Contact alignment : D : Double
t
A
: VA type
: 2.54mm
R : ID type
y
Contact pitch
u
Connection type
qPin
Header
HIF 3B -
*
P A - 2.54 DS
q
w
: HIF
:
3BC: (10 contacts only)
3BD: (10 contacts only)
e
r
t
y
u
q
Series Name
w
Series No.
3B
: (14 contacts not included)
3BA, 3BB: (50, 60, 64 contacts only)
r
t
P
A
: Pin header
: Selective gold plated
: 2.54mm
: Right angle type
: Straight type
e
Number of contacts : 16, 20, 26, 30, 34, 40, 50, 60, 64
y
Contact pitch
u
Contact style
DS
DSA
B16
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

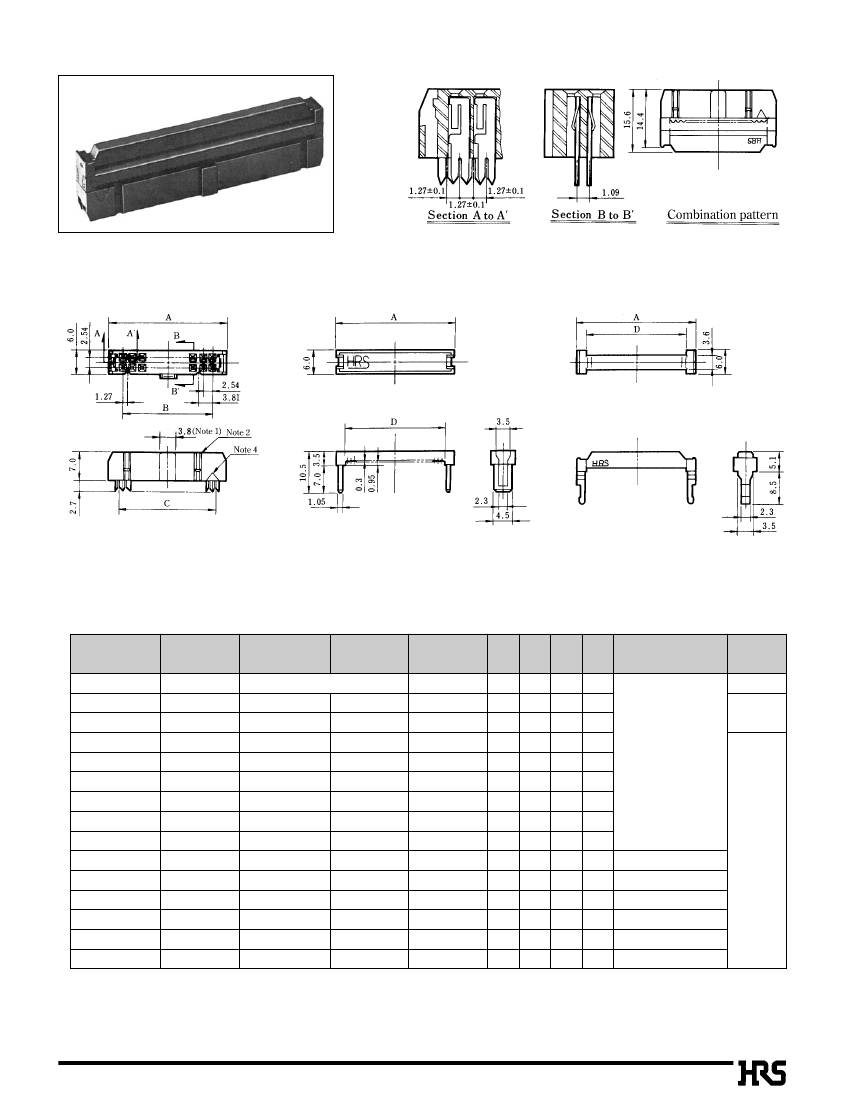

sSocket
(With guide to prevent mis-insertion)
Body
Protector
Clamp
Note1, Note2: The number of polarizing keys and polarizing keyways changes according to products. Refer to the list as shown below.
Note3: The 50, 60 and 64 contact connector contain two types of polarizing guides. Use the products, referring to Notes 1 and 2.
68.07 60.96 62.23 63.6 One on right and left sides, resp. left sides, resp.
One at center
One at center
One at center
80.77 73.66 74.93 76.3 One on right and left sides, resp.
85.85 78.74 80.01 81.38 One on right and left sides, resp.
The products marked with
5
comply with MIL standard.
B17
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

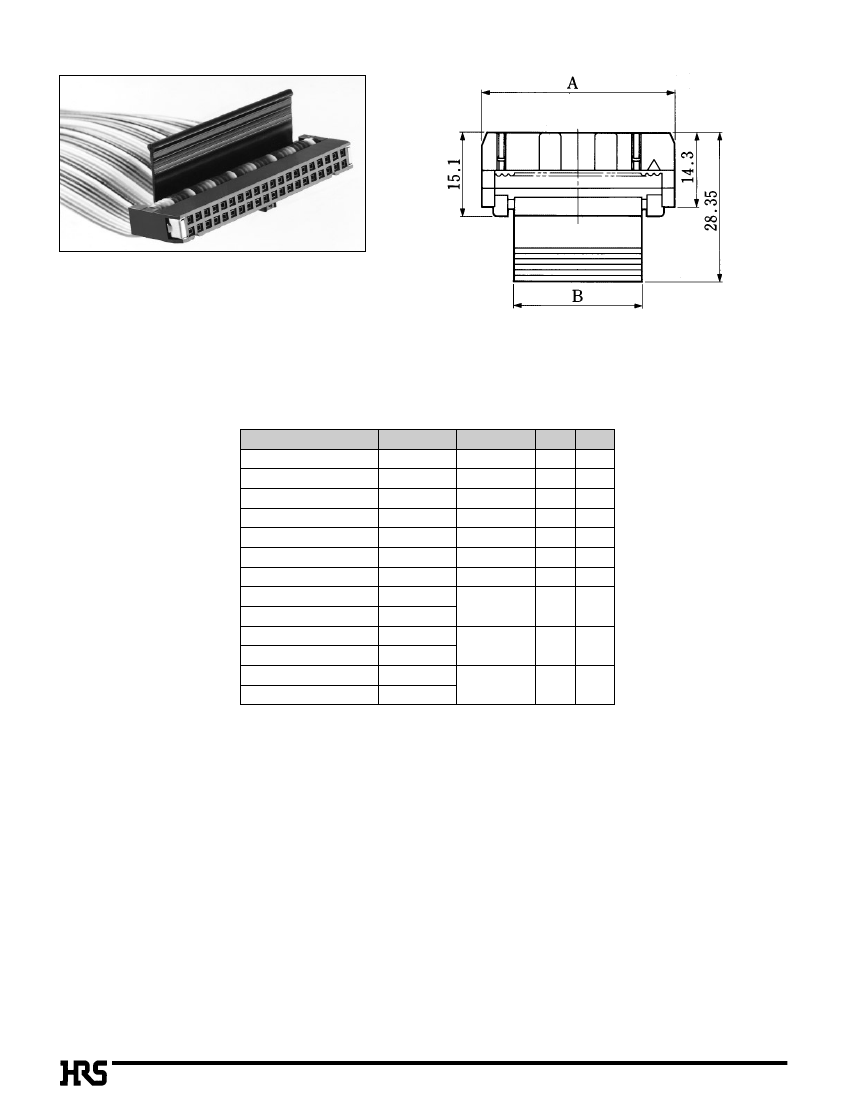

sSocket
with Withdrawal Tab
Unit : mm
Part Number
HIF3BA-10D-2.54R-CL
HIF3BA-16D-2.54R-CL
HIF3BA-20D-2.54R-CL
HIF3BA-26D-2.54R-CL
HIF3BA-30D-2.54R-CL
HIF3BA-34D-2.54R-CL
HIF3BA-40D-2.54R-CL
HIF3BA-50D-2.54R-CL
HIF3BB-50D-2.54R-CL
HIF3BA-60D-2.54R-CL
HIF3BB-60D-2.54R-CL
HIF3BA-64D-2.54R-CL
HIF3BB-64D-2.54R-CL
CL No.
610-0190-4
610-0192-0
610-0193-2
610-0194-5
610-0195-8
610-0196-0
610-0197-3
610-0198-6
610-0201-9
610-0199-9
610-0202-1
610-0200-6
610-0203-4
Number of Contacts
10
16
20
26
30
34
40
50
60
64
A
17.27
24.89
29.97
37.59
42.67
47.75
55.37
68.07
80.77
85.85
B
5.3
12.9
18.0
25.5
30.5
35.8
43.4
56.0
68.5
73.8
B18
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

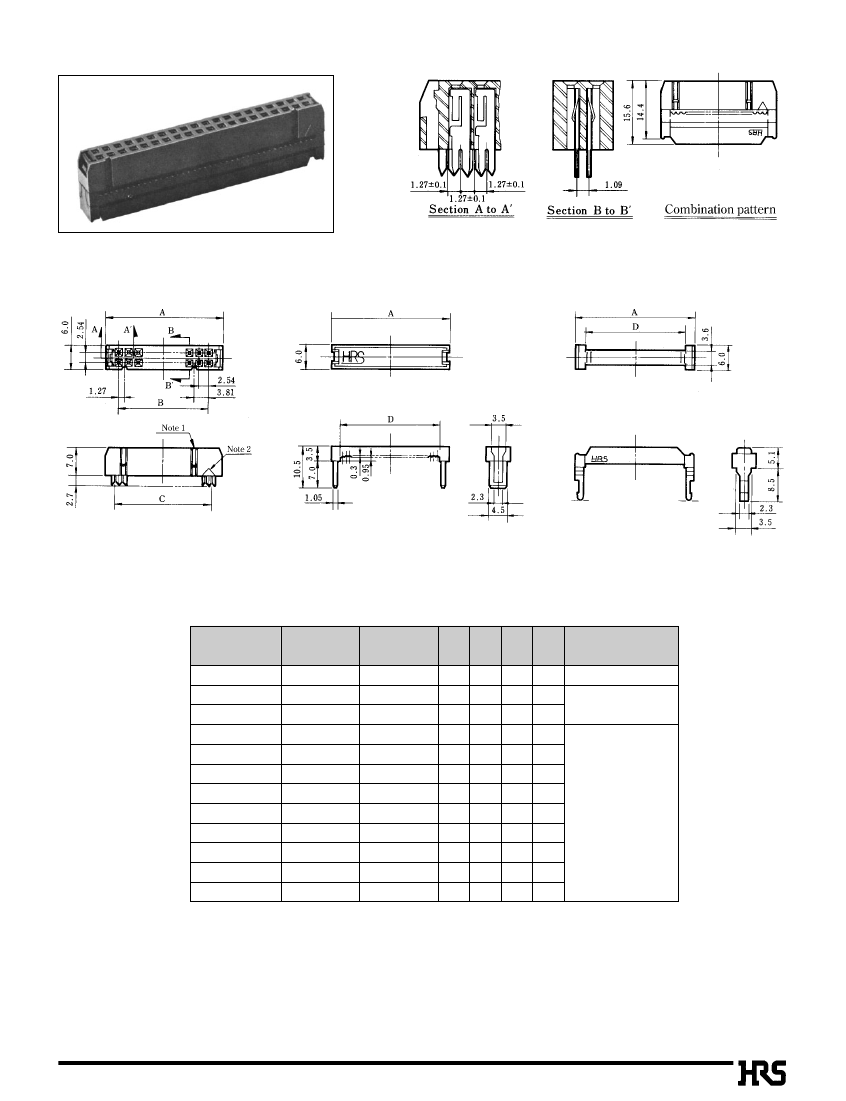

sSocket
Body
Protector
Clamp
Note1: The number of polarizing keys and polarizing keyways changes according to products. For details, refer to the list as shown below.
