3SWO-FT-0.101: DescriptionOscillator, 0.025MHz Min, 0.101MHz Max, 0.101MHz Nom; CategoryPassive components oscillator; File Size65KB，1 Pages; ManufacturerMercury; Websitehttp://www.mercuryunited.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3SWO-FT-0.101 Overview

Oscillator, 0.025MHz Min, 0.101MHz Max, 0.101MHz Nom

3SWO-FT-0.101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	114457789
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	0.101 MHz
Minimum operating frequency	0.025 MHz
Nominal operating frequency	0.101 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.2,200
power supply	3.3 V
Certification status	Not Qualified
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

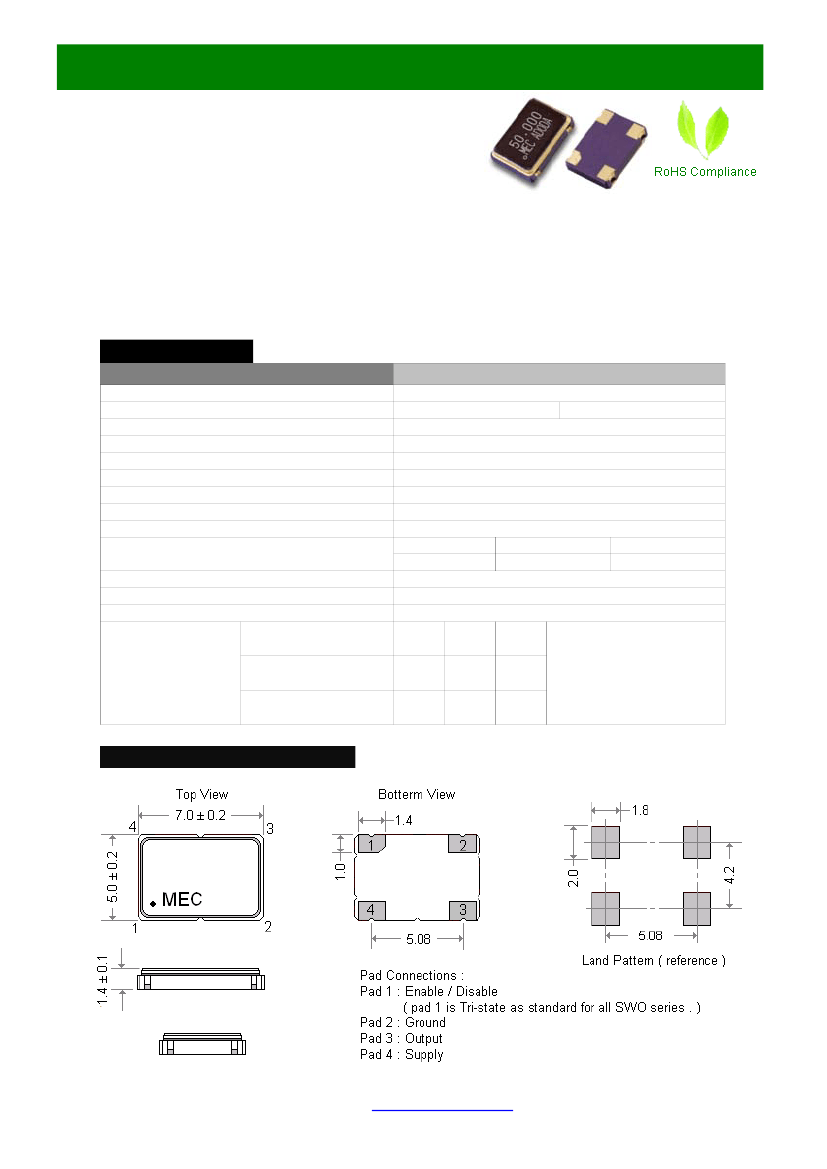

Oscillators Series

SWO

series

3.3 V

SMD CMOS output

7.0 x 5.0 x 1.4 mm

Features

●

Ultra Small SMD seam sealed clock crystal oscillator units.

Tri-state function available.

Fast Ethernet and Gigabit Ethernet clocks

NTSC / PAL encoder / decoder clocks

●

PLL / synthesizer clocks

●

Fibre channel and ADSL clocks

●

Applications

CPU , Graphics , Multimedia A / V clocks

MPEG / DVD / HDTV clocks

●

Laser engine pixel / set - top clocks

●

OC-3 , OC-12 , OC-48 and OC-192 clocks

●

SONET / SDH / ATM clocks

●

General Specifications

Paramenters

Input Voltage ( V

)

Frequency Range

Output Wave Form

Output Logic High " 1 "

Output Logic Low " 0 "

Output Load

Rise Time ( Tr )

Fall Time ( Tf )

Duty Cycle

Current Consumption

Start - Up Time (Ts)

Storage Temperature

Aging

Frequency Stability over

Operating Temperature Range

Frequency Stability

(1)

Codes

Commercial ( -10°C

to +70°C

)

± 25 ppm

Electrical Spec.

3.3 V ± 5 %

25.0 ~ 101.0 KHz

156.0 KHz ~ 200.0 MHz

CMOS output

2.97 V ( min. )

0.33 V ( max. )

15 pF typical [ 30 pF , 50 pF load available ]

10 n sec.(max.)

50% ± 10% [ 50% ± 5% is also available ]

25.0 ~ 100.0 KHz

10 mA max.

1.5 ~ 50.0 MHz

15 mA max.

10 m sec.( typical )

- 50°C to 100°C

± 3 ppm per year (max.)

± 50 ppm ± 100 ppm

If non-standard , please enter the

desired stability after the " C " or "

For example :

" C20 " ±20 ppm over -10°C to +70°C ;

I20

" ± 20 ppm over -40°C to +85°C

50.1 ~ 200.0 MHz

35 mA max.

Industrial (

-40°C to +85°C

)

Outline Dimensions

( Unit : mm )

Mercury

www .mercury-crystal.com

■Taiwan

: (886)-2-2406-2779 / sales-tw@mercury-crystal.com

■U.S.A:

(1)-909-466-0427 / sales-us@mercury-crystal.com

■China

: (86)-512-5763-8100 / sales-cn@mecxtal.com

www .mercury-crystal.com

■Taiwan

: (886)-2-2406-2779 / sales-tw@mercury-crystal.com

■U.S.A:

(1)-909-466-0427 / sales-us@mercury-crystal.com

■China

: (86)-512-5763-8100 / sales-cn@mecxtal.com

3SWO-FT-0.101 Related Products

	3SWO-FT-0.101	3SWO-AT-0.025	3SWO-AT-0.101	3SWO-BT-24.000	3SWO-FT-0.025
Description	Oscillator, 0.025MHz Min, 0.101MHz Max, 0.101MHz Nom	Oscillator, 0.025MHz Min, 0.101MHz Max, 0.025MHz Nom	Oscillator, 0.025MHz Min, 0.101MHz Max, 0.101MHz Nom	CMOS Output Clock Oscillator, 24MHz Nom, ROHS COMPLIANT, ULTRA SMALL, SMD, 4 PIN	Oscillator, 0.025MHz Min, 0.101MHz Max, 0.025MHz Nom
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	114457789	114457768	114457769	1541056610	114457788
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	0.101 MHz	0.025 MHz	0.101 MHz	24 MHz	0.025 MHz
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-10 °C	-10 °C	-10 °C	-40 °C
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
Number of terminals	4	4	4	-	4
Maximum operating frequency	0.101 MHz	0.101 MHz	0.101 MHz	-	0.101 MHz
Minimum operating frequency	0.025 MHz	0.025 MHz	0.025 MHz	-	0.025 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	-	DILCC4,.2,200
power supply	3.3 V	3.3 V	3.3 V	-	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
