MXPAGAA10M0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> MXPAGAA10M0

MXPAGAA10M0: DescriptionQuartz Crystal,; CategoryPassive components Crystal/resonator; File Size160KB，2 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

MXPAGAA10M0 Overview

Quartz Crystal,

MXPAGAA10M0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145048873777
package instruction	HC-49, SMD, 2 PIN
Reach Compliance Code	unknown
Other features	TR, 13 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	25 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.4XB4.7XH3.3 (mm)/L0.449XB0.185XH0.13 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

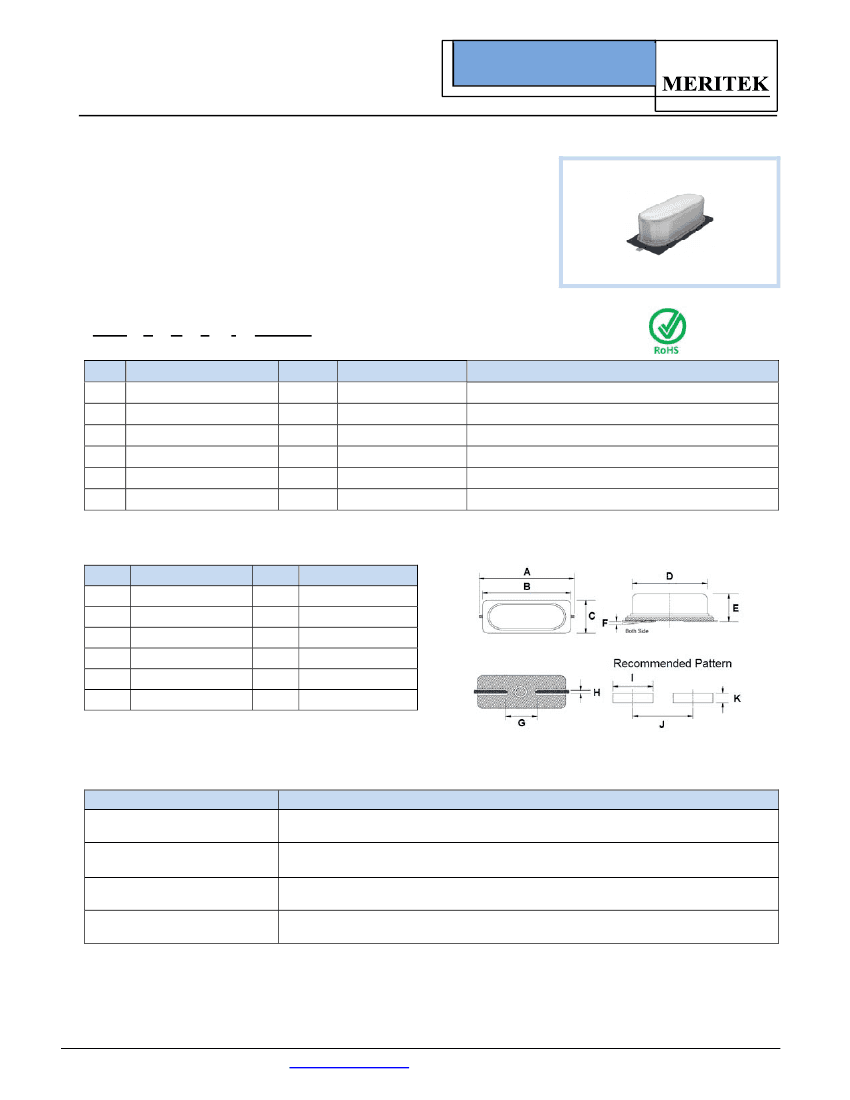

HC-49SMD Crystal Unit

Low Profile Type (3.3mm)

EATURE

•

Surface Mount Low Profile 3.3mm

Excellent Heat Resistance

High precision and high frequency stability

MXP series

Applications: Wired Network, Mobile Communication, WiMAX, WLAN,

Test Equipment

ART

UMBERING

YSTEM

MXP

(1)

(2)

(3)

(4)

(5)

(6)

(2)

(3)

(4)

Item

(5)

7M3728

(6)

Code

MXP

7M3728

Description

Crystal Unit

F: 20pF

H: ±30ppm

J: ±50ppm

I: -40~+85ºC

7M3728: 7.3728MHz

Series Reference

HC-49SMD Height: 3.3mm max.

E: 18pF, R: Series Resonance (see options)

F: ±20ppm, G: ±25ppm (see options)

G: ±25ppm, H: ±30ppm (see options)

C: -20~+70ºC, I: -40~+85ºC (see options)

3M579545~70M0 (M denotes decimal point)

Meritek Series

Load Capacitance

Frequency Tolerance

Stability vs Oper Temp.

Operating Temp.

Frequency

IMENSIONS AND

ECOMMENDED

ATTERN

Item

Unit: mm

Size

12.7±0.6

11.40±0.15

4.70±0.15

10.3 Max.

3.3 Max.

0.1 Max.

Item

Size

4.88±0.20

0.65±0.15

5.6

9.5

2.1

VAILABLE

PTIONS

Parameters

Load Capacitance

Frequency Tolerance

Stability vs Oper Temp.

Operating Temperature

Part Number Options

R: Series Resonance, 3: 3pF ~ 8: 8pF,

A: 10pF, B: 12pF, C: 15pF, D: 16pF, E: 18pF, F: 20pF, K: 22pF, G: 25pF, H: 30pF, L: 32pF

A: ±10ppm, C: ±15ppm, F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm

A: ±10ppm, C: ±15ppm, F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm, K: ±100ppm

B: 0~+70°C, A: -10~+60°C, C: -20~+70°C, K: -30~+85°C, I: -40~+85°C, R: -40~+105°C

Note: Custom options available. Contact Meritek for more information.

Meritek Electronics Corporation

www.meritekusa.com

Rev.7a 12/20/2017
