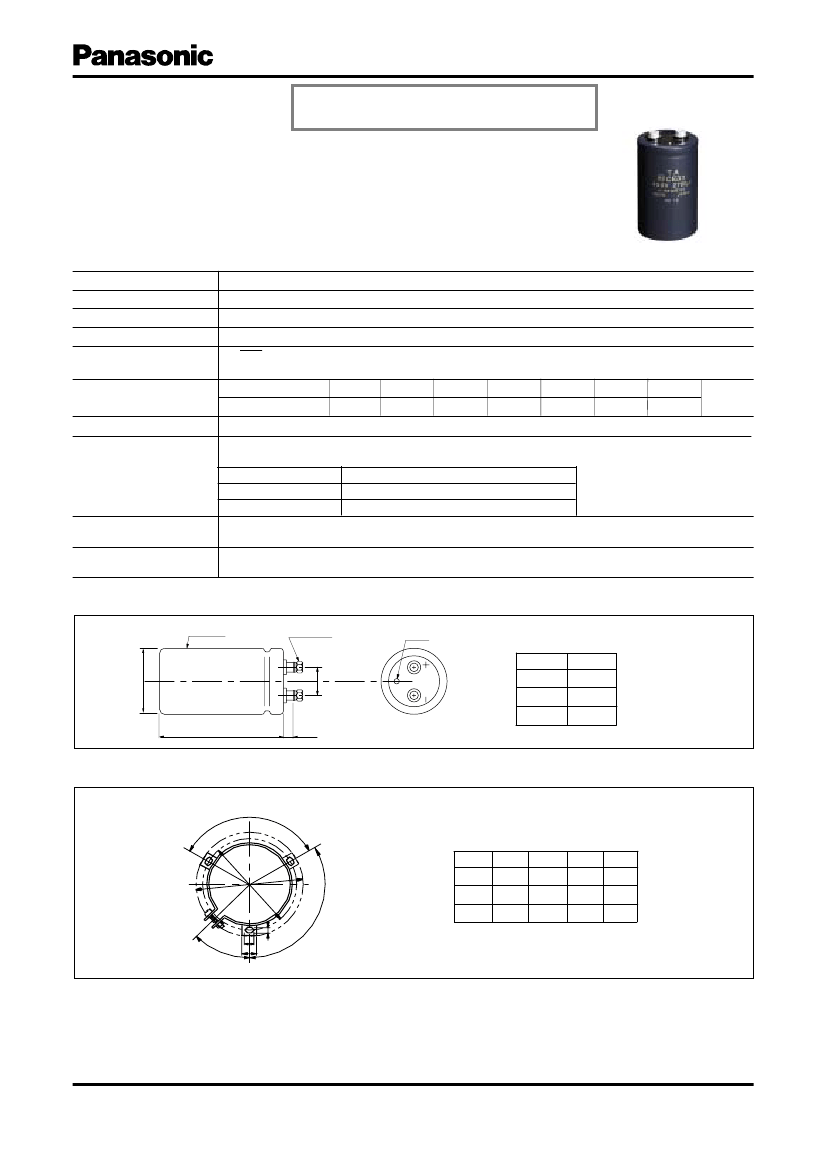

Aluminium Electrolytic Capacitors/GTA
Screw Terminal Type
Series:
GTA
n
Features
Discontinued
Japan
n
Recommended Applications
n
Specifications
Category temp. range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
DC Leakage Current
Frequency correction
factor for ripple current
Dissipation Factor
High ripple current handling capability (50 % higher than series G-UP)
Newly improved long life and safety design (Endurance : 85°C 5000 h)
Suitable for the Hi-ripple circuit of electric vehicle,
electric train, general-purpose inverter.
-25 to + 85°C
450 V .DC
2700 to 12000 µ F
±20% (120Hz/+20°C)
3ﾖCV (µA) or 5 (mA) whichever, smaller, after 5 minutes application of rated working
voltage at +20°C : Capacitance(µF) V: W.V. (V.DC)
Frequency (Hz)
Correction factor
60
0.80
120
1.00
300
1.15
360
1.18
1k
1.30
3k
1.40
10k to
1.48
Endurance
Shelf Life
Withstand Voltage
Please see the attached standard products list
After 5000 hours application of DC voltage with specified ripple current (< rated DC working
voltage ) at +85°C, the capacitor shall meet the following limits.
Capacitance change ± 20% of initial measured value
D.F.
<
200 % of initial specified value
DC leakage current
<
initial specified value
After storage for 1000hours at +85±2
°C
with no voltage applied and then being stabilized
at +20
°C,
capacitors shall meet the limits specified in ìEnduranceî.(With voltage treatment)
Application of 2000V.AC between V-block and terminals for 1 minute, there shall be no
abnomalities like destruction of insulator.
n
Dimensions in mm(not to scale)
P
.V.C. sleeve
M5x12
Hexagonal-bolt
Vent
φD
64
77
90
(mm)
F
28.6
31.8
31.8
L+4 max
9 max
n
Mounting clamp
120°
F±1.0
φD±1
(mm)
2
φ
D
φD
64
12
0
°
φD1 φD2
76.0 86.0
77 89.0 100.0
90 101.6 113.0
W1
8.0
8.0
8.0
W2
13.0
14.0
14.0
45
°
W
1
W
2
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
Mar. 2005
5
1
φ
D
–
EE190
–
Aluminium Electrolytic Capacitors/GTA
n
Standard Products
W.V.
(V)
Case size
Cap.
(±20%)
Dia.
Length
Specification
Ripple
current
(120Hz)
(+85°C)
(A )
D.F.
(120Hz)
(+20°C)
Terminal
Pitch
Part No.
( ):
Mounting
No
Clamp
(µF)
2700
3300
3900
4700
5600
(mm)
64
64
64
64
77
64
77
64
77
90
(mm)
110
125
148
168
125
192
150
224
170
125
192
150
224
170
224
Yes
(mm)
12.4
14.8
17.1
20.2
19.2
23.5
22.2
28.0
26.1
24.0
30.5
26.4
36.0
30.9
38.7
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
28.6
28.6
28.6
28.6
31.8
28.6
31.8
28.6
31.8
31.8
31.8
31.8
31.8
31.8
31.8
EEGTA2W272G( )
EEGTA2W332G( )
EEGTA2W392G( )
EEGTA2W472G( )
EEGTA2W472H( )
EEGTA2W562G( )
EEGTA2W562H( )
EEGTA2W682G( )
EEGTA2W682H( )
EEGTA2W682J( )
EEGTA2W822H( )
EEGTA2W822J( )
EEGTA2W103H( )
EEGTA2W103J( )
EEGTA2W123J( )
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
450
6800
8200
10000
12000
Endurance : 85°C 5000h
77
90
77
90
90
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
Mar. 2005
–
EE191
–
