TSOP36137

Description
IR Receiver Modules for Remote Control Systems
CategoryLED optoelectronic/LED    photoelectric
File Size416KB,14 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

TSOP36137 Overview

IR Receiver Modules for Remote Control Systems

TSOP36137 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
Objectid104147845
Reach Compliance Codeunknow
compound_id181999612
JESD-609 codee3
Installation featuresSURFACE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum slew rate0.0015 mA
Nominal supply voltage3 V
surface mountYES
Terminal surfaceMatte Tin (Sn)
TSOP361..
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
FEATURES
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Continuous data transmission possible
3
4
16797
• TTL and CMOS compatibility
• Output active low
• Supply voltage: 2.7 V to 5.5 V
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC and
WEEE 2002/96/EC
1
2
MECHANICAL DATA
Pinning
1 = GND, 2 = GND, 3 = V
S
, 4 = OUT
SPECIAL FEATURES
• Enhanced data rate up to 4000 bit/s
• Operation with short burst possible (≥ 6 cycles/burst)
• Taping available for topview and sideview assembly
DESCRIPTION

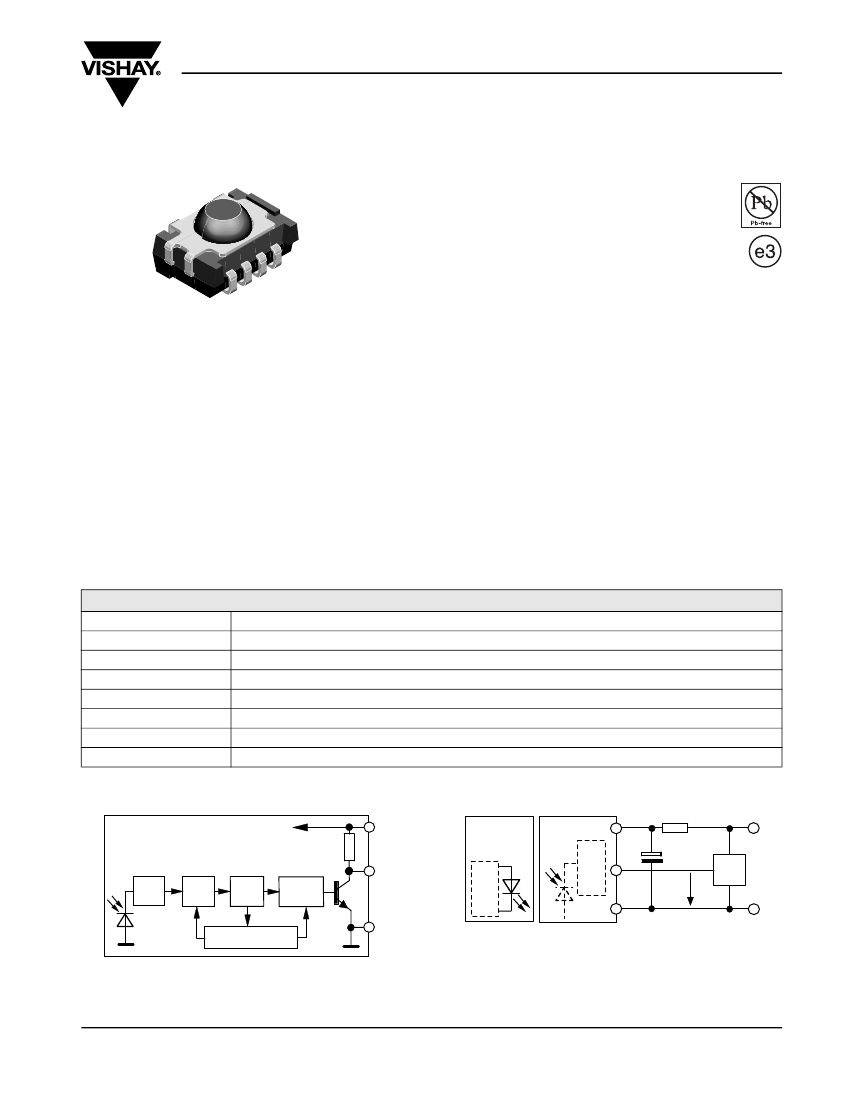

The TSOP361.. series are miniaturized SMD-IR receiver
modules for infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be decoded by a
microprocessor. The main benefit is the operation with short
burst transmission codes and high data rates at a supply
voltage of 3 V.
This component has not been qualified according to
automotive specifications.
PARTS TABLE
CARRIER FREQUENCY
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
SHORT BURSTS AND HIGH DATA RATES (AGC1)
TSOP36130
TSOP36133
TSOP36136
TSOP36137
TSOP36138
TSOP36140
TSOP36156
BLOCK DIAGRAM
3
30 kΩ
V
S
4
Input
AGC
Band
pass
Demo
-
dulator
OUT
APPLICATION CIRCUIT
17170
Circuit
Transmitter
with
TSALxxxx
R
1
= 100
Ω
TSOPxxxx
V
S
OUT
GND
V
O
C
1
=
4.7 µF
µC
GND
+
V
S
1; 2
PIN
16839
Control circuit
GND
R
1
and C
1
recommended to suppress power supply
disturbances. The output
voltage
should not
be
hold continuously at a
voltage below V
O
= 2.0
V
by
the external circuit.
Document Number: 82191
Rev. 1.6, 20-Aug-08
www.vishay.com
189
