TSOP4140JH1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> TSOP4140JH1

TSOP4140JH1: DescriptionLOGIC OUTPUT PHOTO DETECTOR; CategoryLED optoelectronic/LED photoelectric; File Size298KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

TSOP4140JH1 Overview

LOGIC OUTPUT PHOTO DETECTOR

TSOP4140JH1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Reach Compliance Code	unknow
Other features	CMOS COMPATIBLE
application	REMOTE CONTROL
Configuration	COMPLEX
Infrared range	YES
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
Number of functions	1
Maximum on-state current	0.005 A
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
shape	ROUND
Maximum slew rate	0.0015 mA
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

TSOP41..JH1

Vishay Semiconductors

IR Receiver Modules for Remote Control Systems

Description

The TSOP41..JH1 - series are miniaturized receivers

for infrared remote control systems. PIN diode and

preamplifier are assembled on lead frame, the epoxy

package is designed as IR filter.

The demodulated output signal can directly be

decoded by a microprocessor. The main benefit is the

operation with short burst transmission codes and

high data rates.

18552

Features

• Photo detector and preamplifier in one

package

• Internal filter for PCM frequency

• Improved shielding against electrical

field

disturbance

• TTL and CMOS compatibility

• Output active low

• Low power consumption

• High immunity against ambient light

Mechanical Data

Pinning:

1 = OUT, 2 = GND, 3 = V

Parts Table

Part

TSOP4130JH1

TSOP4133JH1

TSOP4136JH1

TSOP4137JH1

TSOP4138JH1

Carrier Frequency

30 kHz

33 kHz

36 kHz

36.7 kHz

38 kHz

40 kHz

56 kHz

Special Features

• Enhanced data rate of 4000 bit/s

• Operation with short bursts possible

(≥ 6 cycles/burst)

TSOP4140JH1

TSOP4156JH1

Block Diagram

Application Circuit

16836

25 kΩ

Input

AGC

Band

Pass

Demo-

dulator

16842

OUT

Circuit

Transmitter

TSOPxxxx

with

TSALxxxx

= 100

Ω

4.7 µF

Control Circuit

GND

OUT

GND

µC

GND

+ C

recommended to suppress power supply

disturbances.

The output voltage should not be hold continuously at

a voltage below V

O =

3.3 V by the external circuit.

Document Number 82262

Rev. 1.1, 01-Mar-05

www.vishay.com

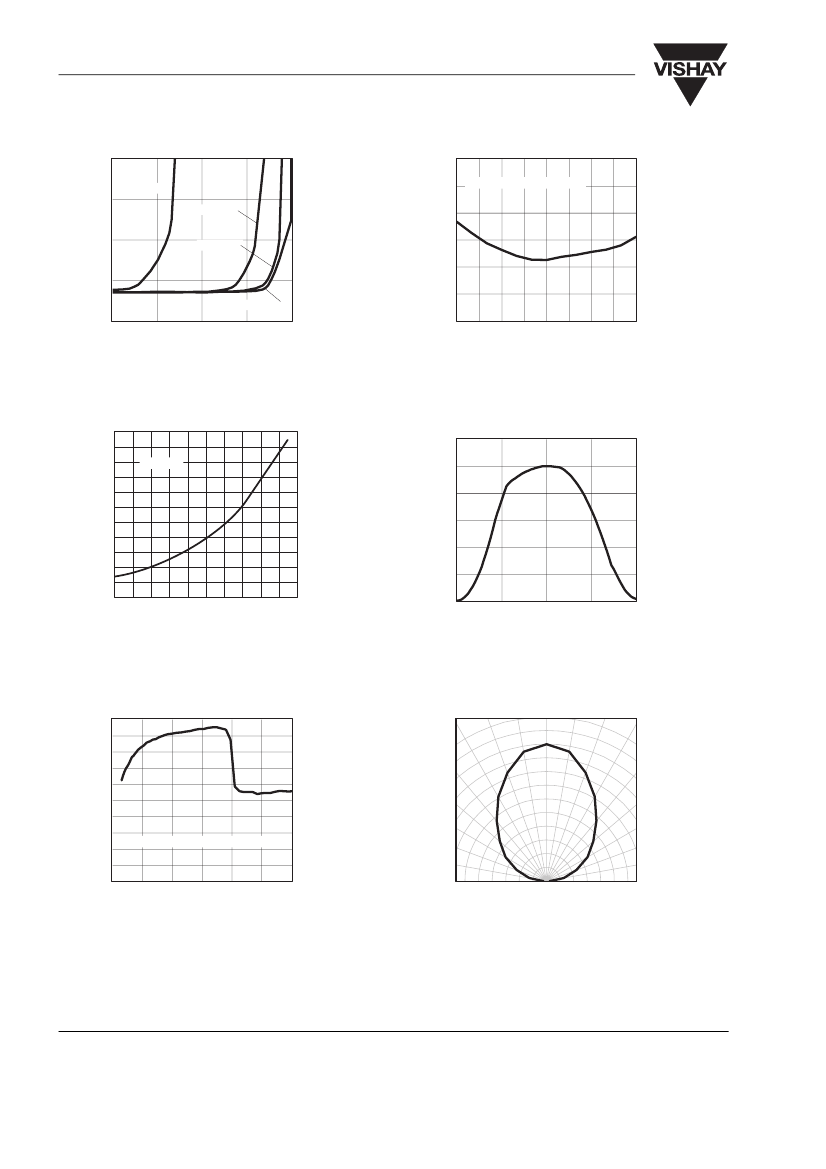

TSOP4140JH1 Related Products

	TSOP4140JH1	TSOP4130JH1	TSOP4133JH1	TSOP4136JH1	TSOP4138JH1	TSOP4156JH1	TSOP4137JH1
Description	LOGIC OUTPUT PHOTO DETECTOR	LOGIC OUTPUT PHOTO DETECTOR	LOGIC OUTPUT PHOTO DETECTOR	LOGIC OUTPUT PHOTO DETECTOR	LOGIC OUTPUT PHOTO DETECTOR	LOGIC OUTPUT PHOTO DETECTOR	IR receiver modules for remote control systems
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE
application	REMOTE CONTROL	REMOTE CONTROL	REMOTE CONTROL	REMOTE CONTROL	REMOTE CONTROL	REMOTE CONTROL	REMOTE CONTROL
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Infrared range	YES	YES	YES	YES	YES	YES	YES
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	1	1	1	1	1	1	1
Maximum on-state current	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC OUTPUT PHOTO IC
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Maximum slew rate	0.0015 mA	0.0015 mA	0.0015 mA	0.0015 mA	0.0015 mA	0.0015 mA	0.0015 mA
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Maker	Vishay	-	Vishay	Vishay	-	Vishay	Vishay
