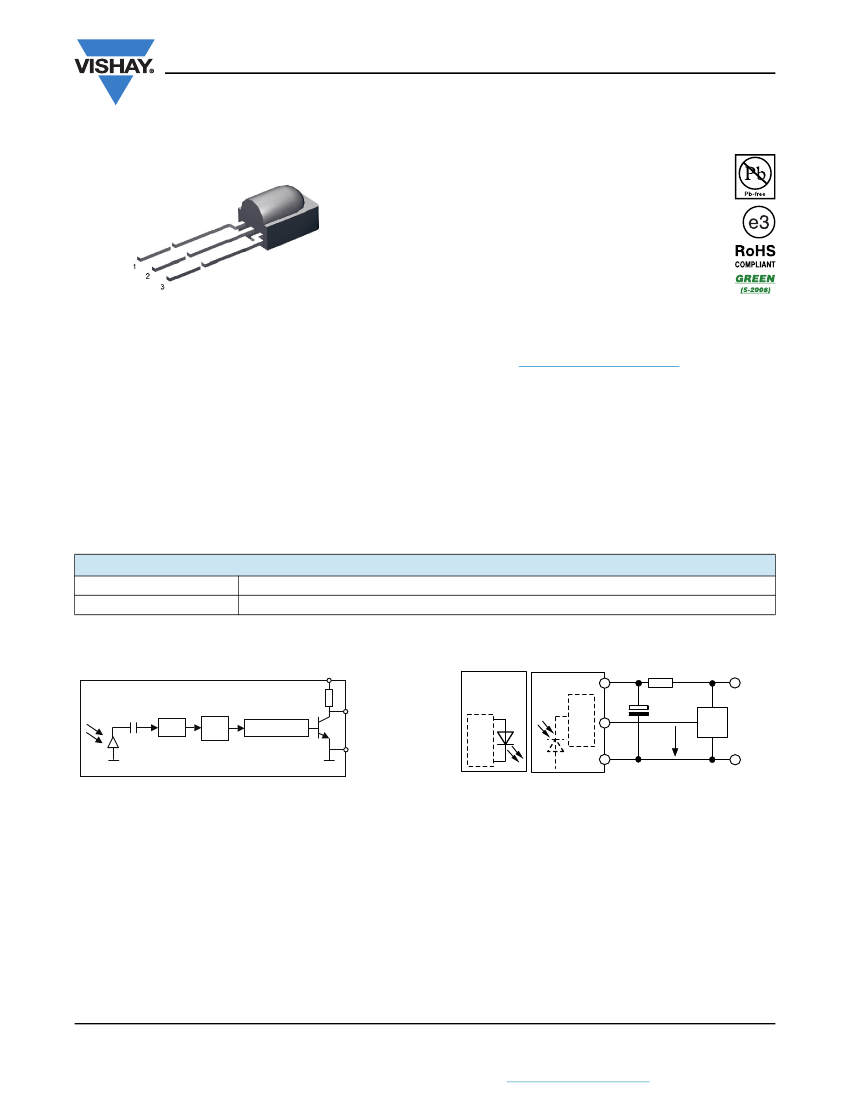

Obsolete - Replaced by New TSMP58000 (#82485)
TSOP98260
www.vishay.com
Vishay Semiconductors
IR Sensor Module for Remote Control Systems
FEATURES
• Photo detector and preamplifier in one package
• AC coupled response from 20 kHz to 60 kHz, all
data formats
• Improved shielding against electrical field
disturbance
• TTL and CMOS compatibility
19026
• Output active low
• Supply voltage: 2.7 V to 5.5 V
• Carrier out signal for code learning functions
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
Pinning:
1 = Carrier OUT, 2 = GND, 3 = V
S
DESCRIPTION
The TSOP98260 is a miniaturized sensor for receiving the
modulated signal of infrared remote control systems. A PIN
diode and preamplifier are assembled on a lead frame, the
epoxy package is designed as an IR filter. The modulated
output signal, carrier out, can be used for code learning
applications.
This component has not been qualified according to
automotive specifications.
PARTS TABLE
CARRIER FREQUENCY
20 kHz to 60 kHz
CODE LEARNING APPLICATIONS
TSOP98260
BLOCK DIAGRAM
3 V
S
APPLICATION CIRCUIT
19750
1 Carrier out
TIA
Amp
Signal shaping
2 GND
Circuit
Transmitter
TSOPxxxx
with
TSALxxxx
R
1
= 100
Ω
V
S
C
1
=
4.7 µF
V
O
+ V
S
OUT
GND
µC
GND
19746
R
1
+ C
1
recommended to suppress power supply
disturbances.
Rev. 1.4, 28-Mar-12
1
Document Number: 81665
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Obsolete - Replaced by New TSMP58000 (#82485)
TSOP98260
www.vishay.com
Vishay Semiconductors
TEST CONDITION
SYMBOL
V
S
V
O
I
O
T
j
T
stg
T
amb
t
≤
10 s, 1 mm from case
T
sd
VALUE
- 0.3 to + 5.5
- 0.3 to (V
S
+ 0.3)
10
100
- 25 to + 85
- 25 to + 85
260
UNIT
V
V
mA
°C
°C
°C
°C
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Supply voltage (pin 3)
Output voltage (pin 1)
Output current (pin 1)
Junction temperature
Storage temperature range
Operating temperature range
Soldering temperature
ELECTRICAL AND OPTICAL CHARACTERISTICS CARRIER OUT
(T
amb
= 25 °C, unless otherwise specified, V
S
= 3 V)
PARAMETER
Supply current (pin 3)
Supply voltage
Transmission distance
Output voltage low (pin 1)
Minimum irradiance
Maximum irradiance
Directivity
Carrier Out rise time
Carrier Out fall time
Output pulse width
E
v
= 0, test signal see fig. 1,
IR diode TSAL6200,
I
F
= 400 mA
I
OSL
= 0.5 mA, test signal see fig. 1
V
S
= 3 V, (20 kHz to 60 kHz)
test signal see fig. 1, (20 kHz to 60 kHz)
Angle of half transmission distance
V
S
= 3 V, C
L
= 10 pF
V
S
= 3 V, C
L
= 10 pF
T
PI
= 10 μs, C
L
= 10 pF
TEST CONDITION
E
v
= 0
SYMBOL
I
SD
V
S
d
V
OSL
E
e min.
E
e max.
ϕ
1/2
T
R
T
F
T
PO
5
300
0.3
500
± 45
100
10
7
10
2.7
1
250
0.5
MIN.
TYP.
0.6
MAX.
0.8
5.5
UNIT
mA
V
m
mV
W/m
2
W/m
2
deg
ns
ns
μs
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
Optical test signal
IR emitting diode TSAL6200, I
F
= 0.4 A, f = 38 kHz
8
E
e
t
dc
, t
poc
- Output Pulse Length (µs)
7
6
5
4
optical test signal , fig. 1
3
2
1
0
0.1
1
10
100
1000
Delay time - t
dc
Output pulse width - t
poc
note: Output signal switches on
the falling edge of input signal
t
t
dC
V
OC
Output signal
19703
t
poc
t
21490
E
e
- Irradiance (W/m²)
Fig. 1 - Carrier Output Pulse Diagram
Fig. 2 - Carrier Output Function Diagram
Rev. 1.4, 28-Mar-12
2
Document Number: 81665
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Obsolete - Replaced by New TSMP58000 (#82485)
TSOP98260
www.vishay.com
Vishay Semiconductors
S (λ)
rel
- Relative Spectral Sensitivity
1.2
1.0
0.8
0.6
0.4
0.2
0
750
850
950
1050
1150
94 8408
λ
- Wavelength (nm)

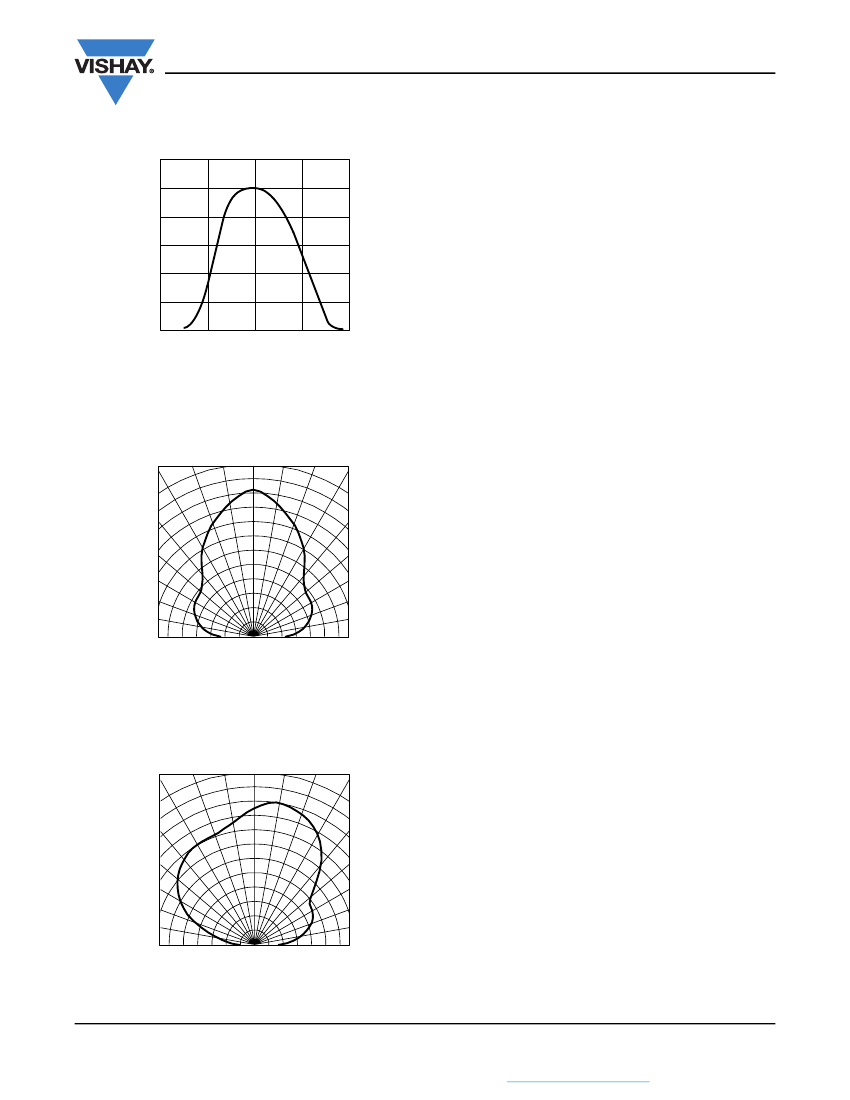

Fig. 3 - Relative Spectral Sensitivity vs. Wavelength
0°
10°
20°
30°
40°
1.0
0.9
0.8
50°
60°
70°
0.7
80°
0.6
19258
0.4
0.2
0
d
rel
- Relative Transmission Distance
Fig. 4 - Horizontal Directivity
0°
10°
20°
30°
40°
1.0
0.9
0.8
50°
60°
70°
0.7
80°
0.6
19259
0.4
0.2
0
d
rel
- Relative Transmission Distance
Fig. 5 - Vertical Directivity
Rev. 1.4, 28-Mar-12
3
Document Number: 81665
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Obsolete - Replaced by New TSMP58000 (#82485)
TSOP98260
www.vishay.com
PACKAGE DIMENSIONS
in millimeters
5
(4)
2.8
4.8
Vishay Semiconductors
R2
8.25 ± 0.3
6.95 ± 0.3
(5.55)
(1.54)
30.5 ± 0.5
1.1
0.9
0.85 max.
2.54 nom.
0.7 max.
2.54 nom.
0.5 max.
1.2 ± 0.2
Marking area
technical drawings
according to DIN
specifications
Not indicated to lerances ± 0.2
Drawing-No.: 6.550-5263.01-4
Issue: 12; 16.04.10
19009
R2
Rev. 1.4, 28-Mar-12
4
Document Number: 81665
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
