TSR-805

Description
Trimmer Potentiometer-8mm Ceramic
File Size3MB,3 Pages
ManufacturerSUNTAN
Websitehttp://www.suntan.com.hk/
Download Datasheet View All

TSR-805 Overview

Trimmer Potentiometer-8mm Ceramic

Trimmer Potentiometer-8mm Ceramic
Suntan
®
TSR-805
調
½

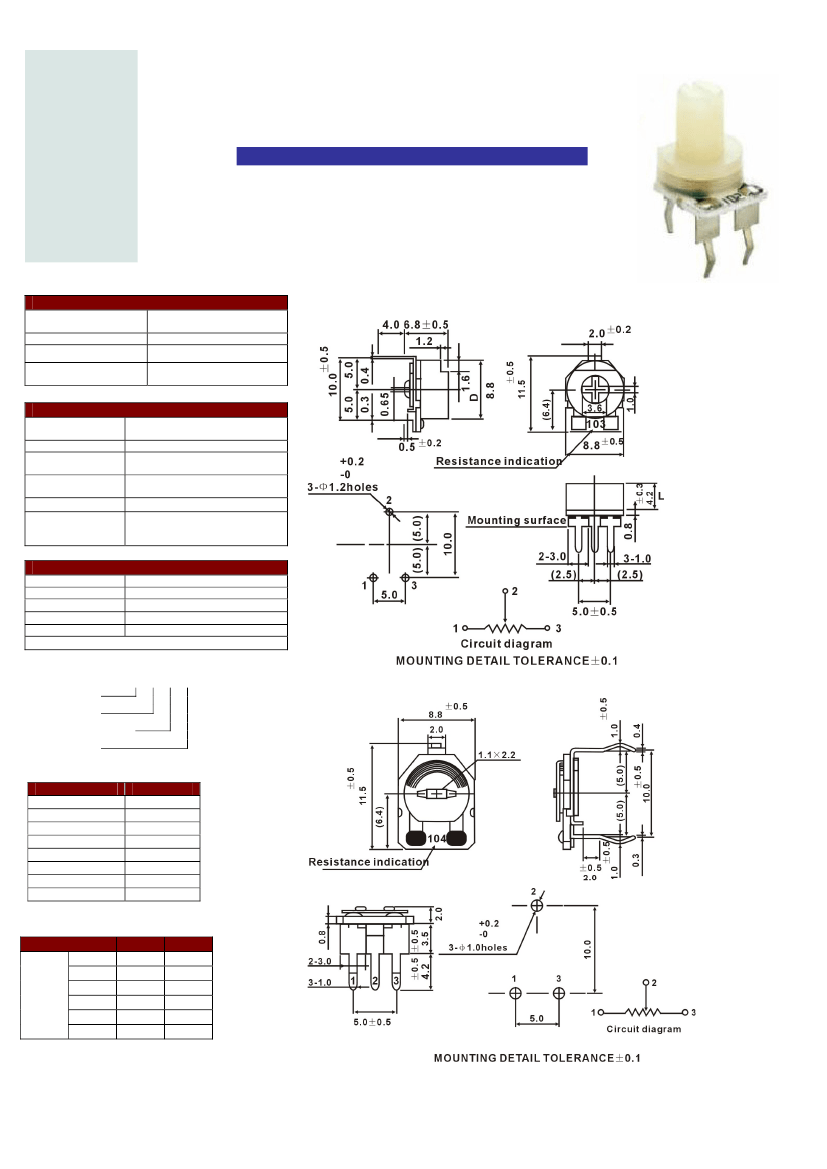

8mm Round/ Single-Turn/ Cermet Industrial/ Open Frame
Cross slot adjustment options
Horiontal andvertical mounting styles
Dust resistant/ splash resistant covers
PC board stand-offs and retention feature
Front and top adjust styles
Electrical Characteristics
Standard Resistance Range
Resistance Tolerance
Adjustment Angle
Residual Resistance
100Ω to 1meg ohm
(see standard resistance table)
±20%
(TK±25%)
280℃
±
15℃
≤500Ω,
10Ω>500Ω, 2%
(TK≤1KΩ, 2KΩ>1KΩ, 5%)
TSR-805C-S
Environmental Characteristics
Power Rating Max
Working Voltage
70℃
Temperature Range
Temperature
Coefficient
Rotational Life
Load Life
250V (TK0.1Watt)
0.3Watt (TK0.2Watt)
-30℃ to +100℃
(TK -25℃ to +100℃)
±250ppm/℃
(TK±1000 ppm/℃)
±10%
(TK±15%)
1000 hours 0.3Watt 70℃±5%
(TK 500 hours 0.2Watt 70℃
≤100KΩ,
+7%>100KΩ,
±10%)
Physical Characteristics
Torque (Operating)
50~350gf. Cm
Stop Strength
0.8kgf. cm
Soldering Conditions
240℃ to 260℃ And within 3 seconds
Marking
Resistance Code
Standard Packing
500 PCS Per bag
Aqueous cleaning not recommended
How to Order
TSR-805C --- S --- 101 -- R
Model
Style
Resistance Code
RoHS
TSR-805M
Standard Resistance table
Resistance(Ohms)
Resistance Code
100
101
200
201
300
301
500
501
1,000
102
10,000
103
100,000
104
1.000,000
105

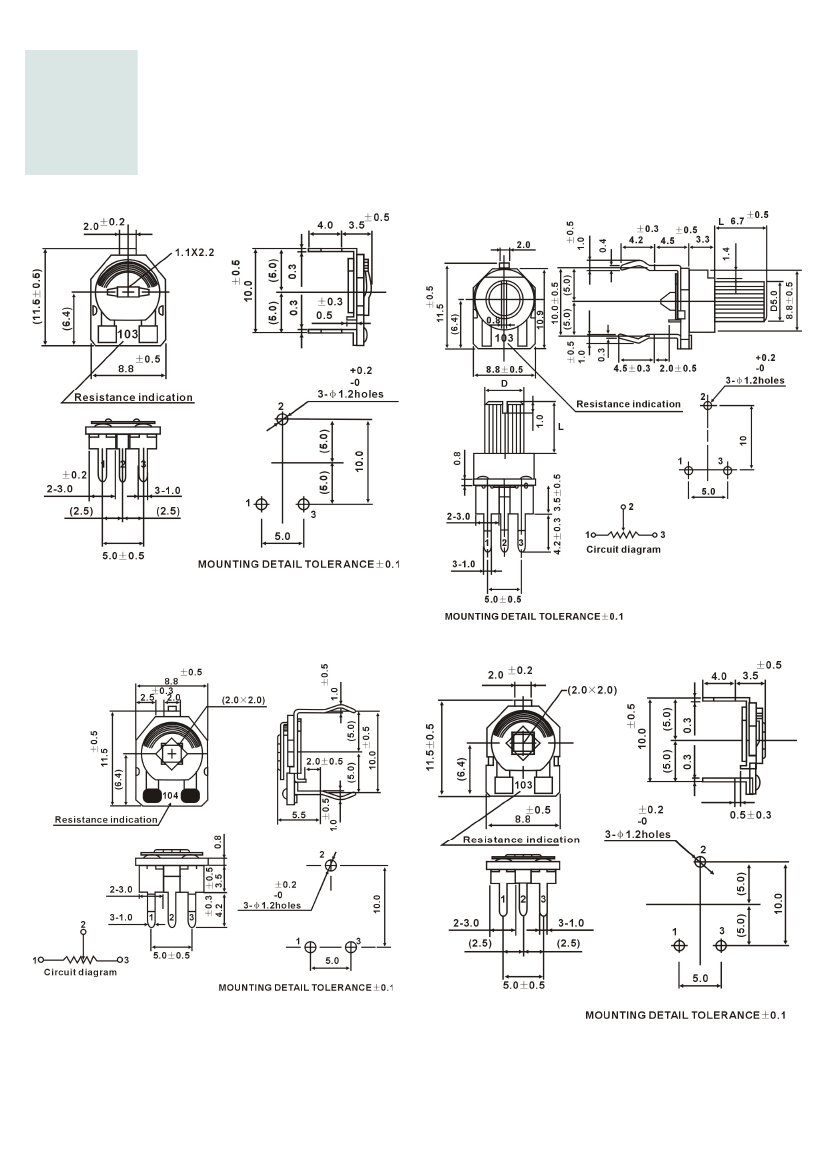

Cover Style
N1
N2
Q
N4
K2
G
K3
K5
L
4.2
6.7
12.7
5.7
9.7
15
D
8.8
5.0
5.0
6.0
6.0
6.0
Suntan
®
Technology Company Limited
Website: www.suntan.com.hk
Email: info@suntan.com.hk
Tel: (852) 8202 8782
Fax: (852) 8208 6246
