6138R50KL1.0FS: DescriptionPotentiometer, Conductive Plastic, 1W, 50000ohm, 20% +/-Tol, 1 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size662KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

6138R50KL1.0FS Overview

Potentiometer, Conductive Plastic, 1W, 50000ohm, 20% +/-Tol, 1 Turn(s), ROHS COMPLIANT

6138R50KL1.0FS Parametric

Parameter Name	Attribute value
Objectid	1280949679
package instruction	Panel Mount,
Reach Compliance Code	unknown
Actuator direction	HORIZONTAL
Actuator type	SHAFT
structure	Low Profile
gang number	1
Installation features	PANEL MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Package diameter	21.59 mm
Package length	7.87 mm
Package shape	CIRCULAR PACKAGE
Package form	Panel Mount
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	50000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
rotation angle	360 deg
surface mount	NO
technology	CONDUCTIVE PLASTIC
Temperature Coefficient	-400 ppm/°C
Terminal shape	BINDING POST
Tolerance	20%
Operating Voltage	400 V

Preview

Download Datasheet

View All

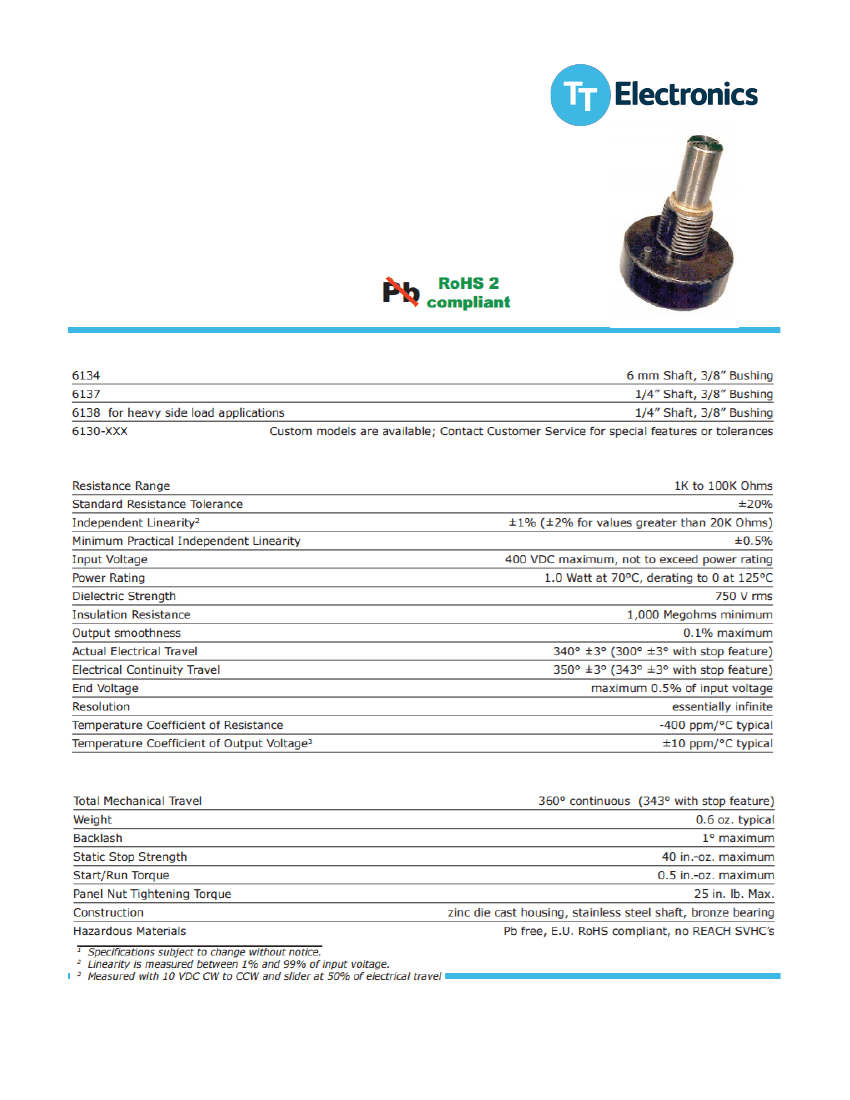

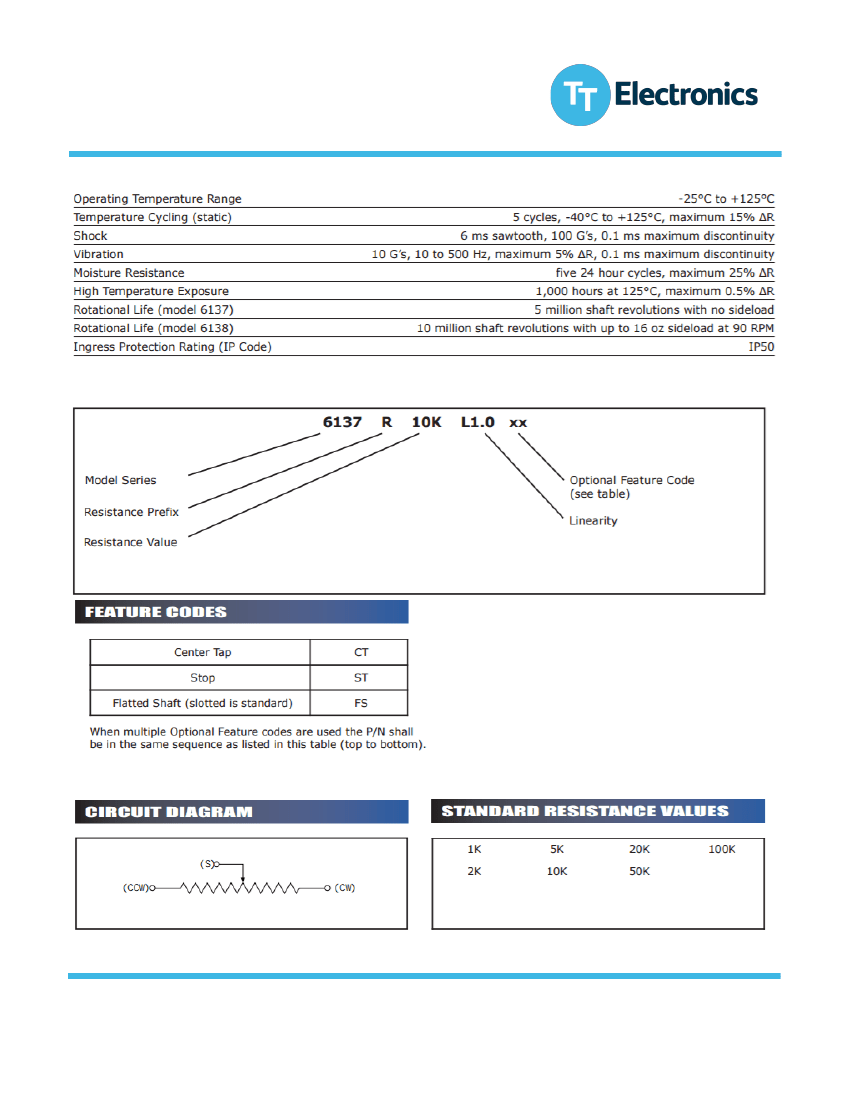

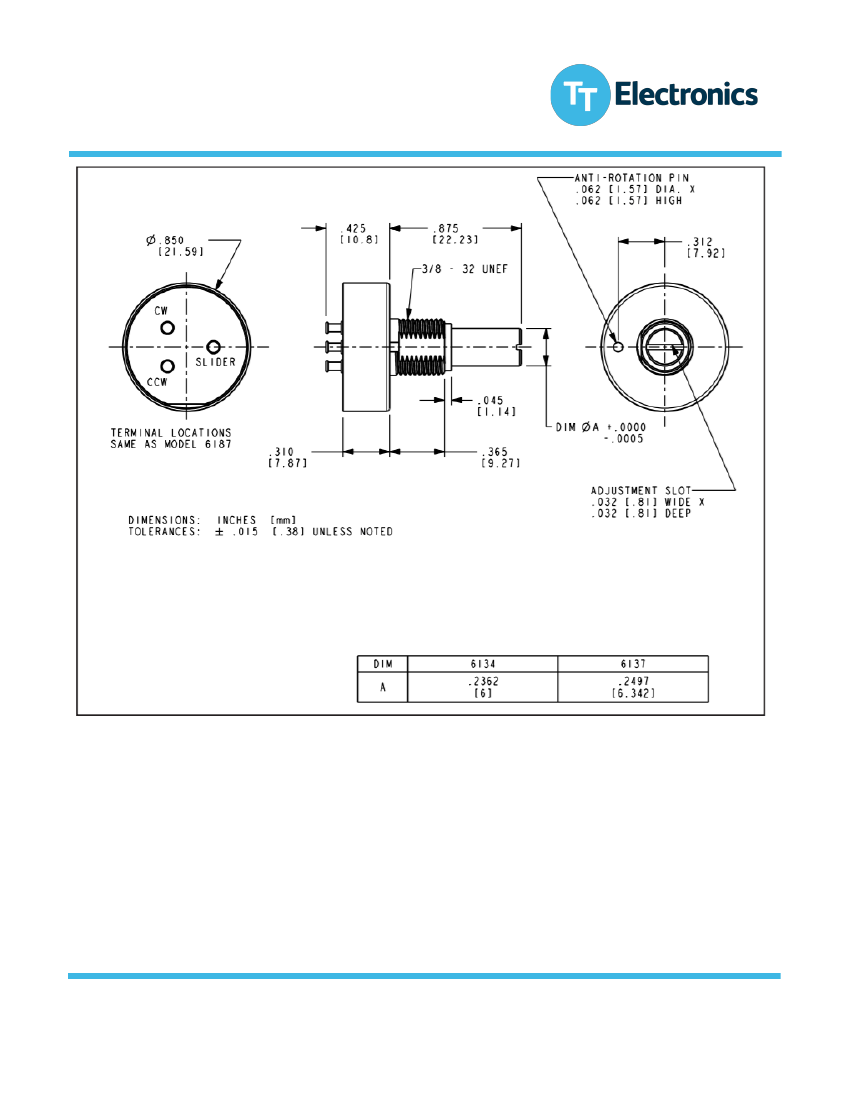

Single-Turn Precision Potentiometer

Model 6130 Series

Features:

•

Low profile

7/8”

diameter

•

Conductive plastic technology

•

Bronze bearing

OBSOLETE

Models Available

Electrical

Mechanical

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics |

BI Technologies

413 Rood RD, Suite 7

Calexico, CA 92231

www.bitechnologies.com | www.ttelectronics.com

Issue C 04/2019 Page 1

6138R50KL1.0FS Related Products

	6138R50KL1.0FS	6138R50KL1.0CT
Description	Potentiometer, Conductive Plastic, 1W, 50000ohm, 20% +/-Tol, 1 Turn(s), ROHS COMPLIANT	Potentiometer, Conductive Plastic, 1W, 50000ohm, 20% +/-Tol, 1 Turn(s), ROHS COMPLIANT
Objectid	1280949679	1280949678
package instruction	Panel Mount,	Panel Mount,
Reach Compliance Code	unknown	unknown
Actuator direction	HORIZONTAL	HORIZONTAL
Actuator type	SHAFT	SHAFT
structure	Low Profile	Low Profile
gang number	1	1
Installation features	PANEL MOUNT	PANEL MOUNT
Number of terminals	3	3
number of turns	1	1
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C
Package diameter	21.59 mm	21.59 mm
Package length	7.87 mm	7.87 mm
Package shape	CIRCULAR PACKAGE	CIRCULAR PACKAGE
Package form	Panel Mount	Panel Mount
Rated power dissipation(P)	1 W	1 W
Rated temperature	70 °C	70 °C
resistance	50000 Ω	50000 Ω
resistance law	LINEAR	LINEAR
Resistor type	POTENTIOMETER	POTENTIOMETER
rotation angle	360 deg	360 deg
surface mount	NO	NO
technology	CONDUCTIVE PLASTIC	CONDUCTIVE PLASTIC
Temperature Coefficient	-400 ppm/°C	-400 ppm/°C
Terminal shape	BINDING POST	BINDING POST
Tolerance	20%	20%
Operating Voltage	400 V	400 V
