TXN058G datasheet, PDF - EEWORLD Datasheet

TXN058G: DescriptionSilicon controlled rectifiers; CategoryAnalog mixed-signal IC Trigger device; File Size354KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

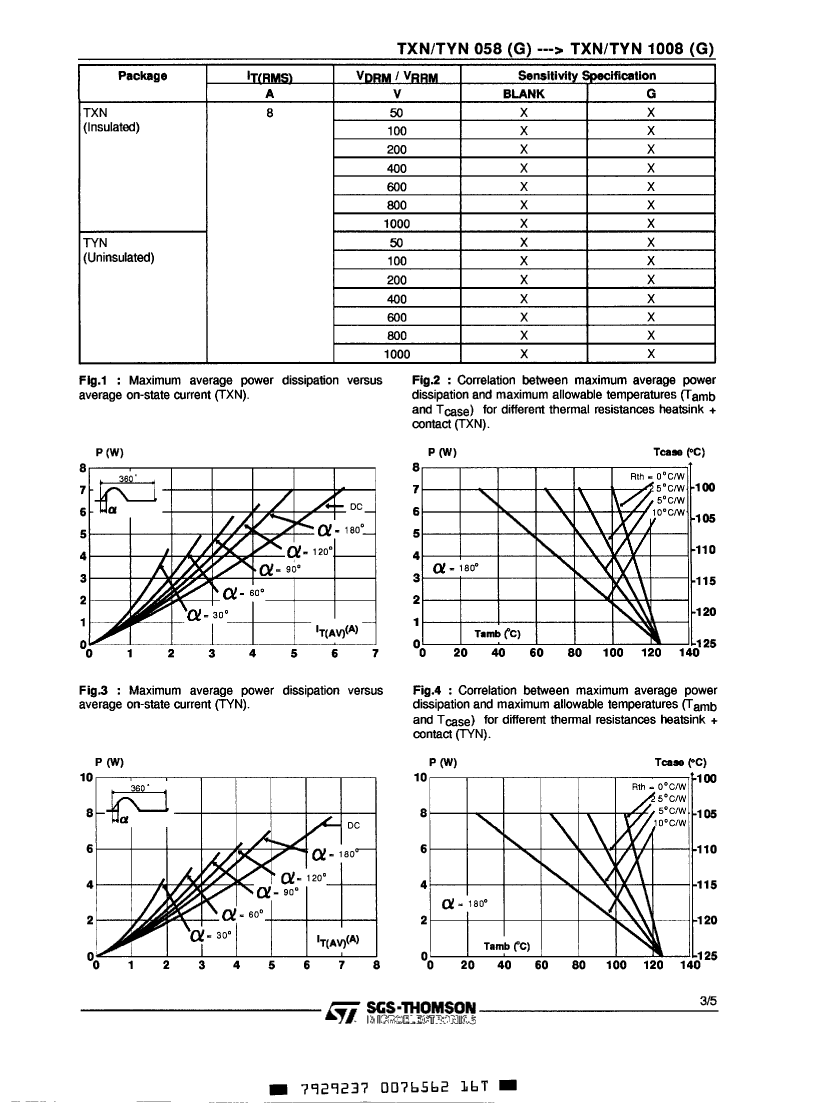

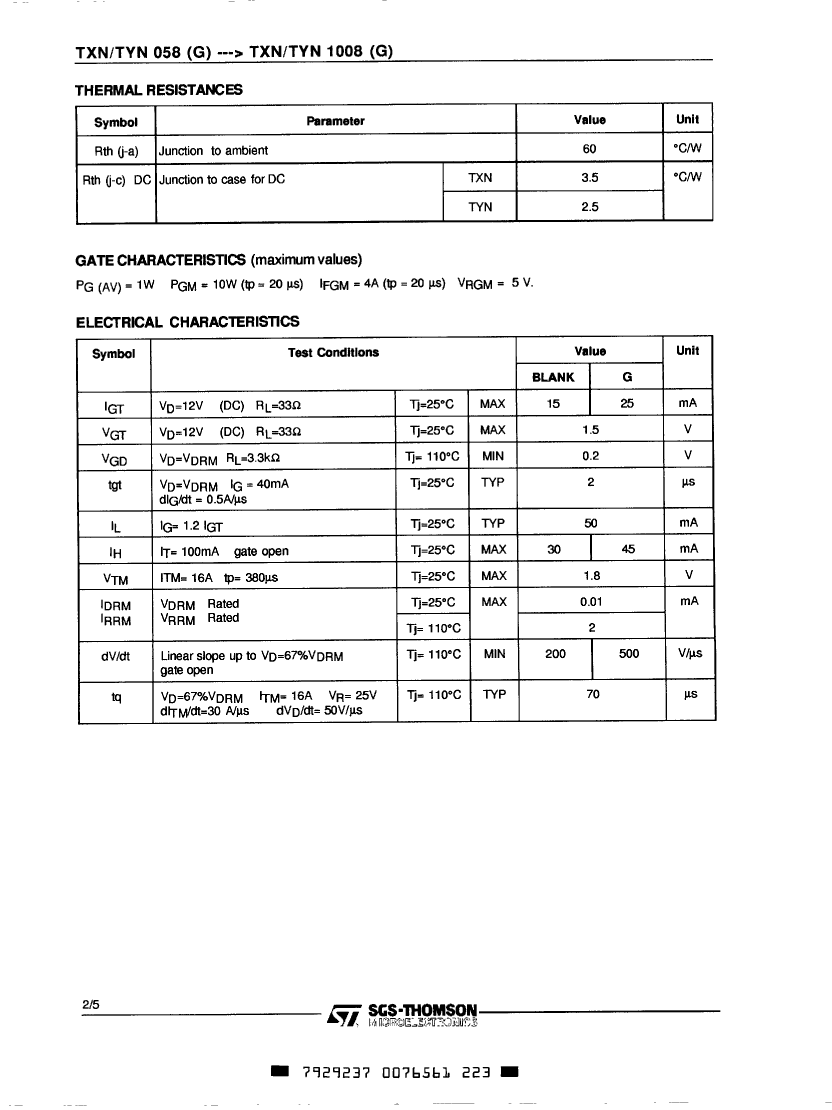

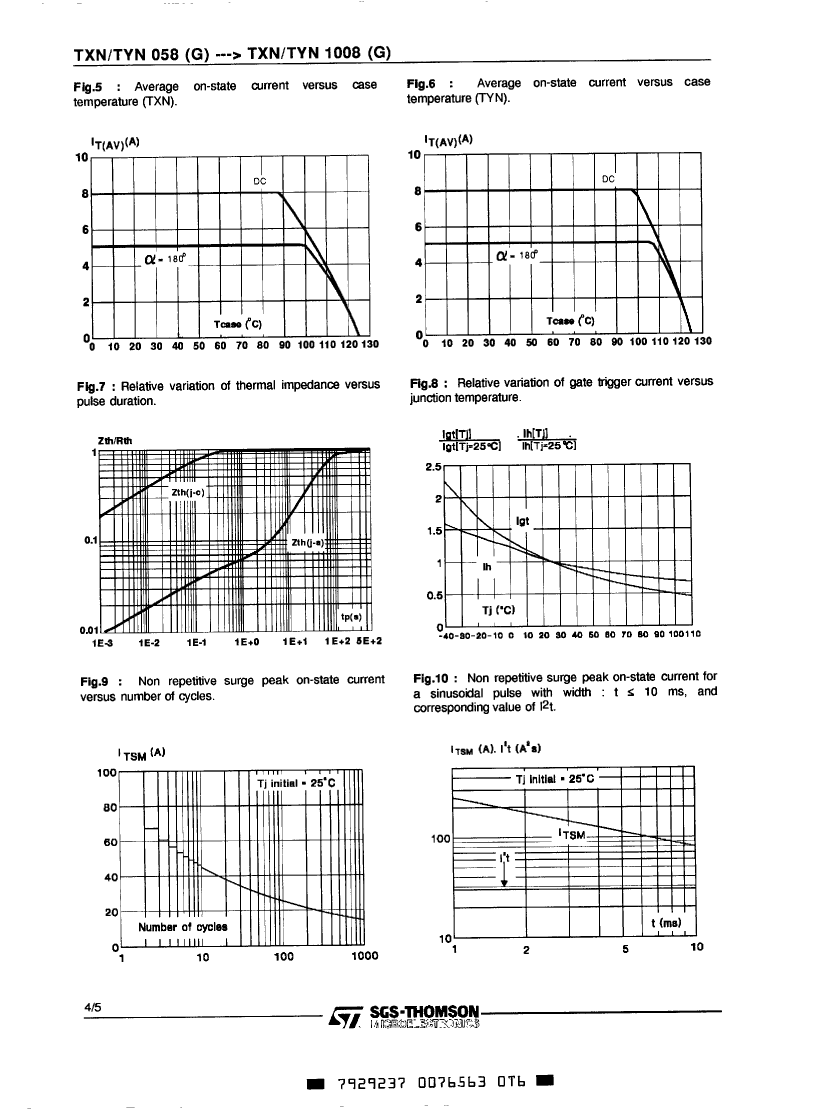

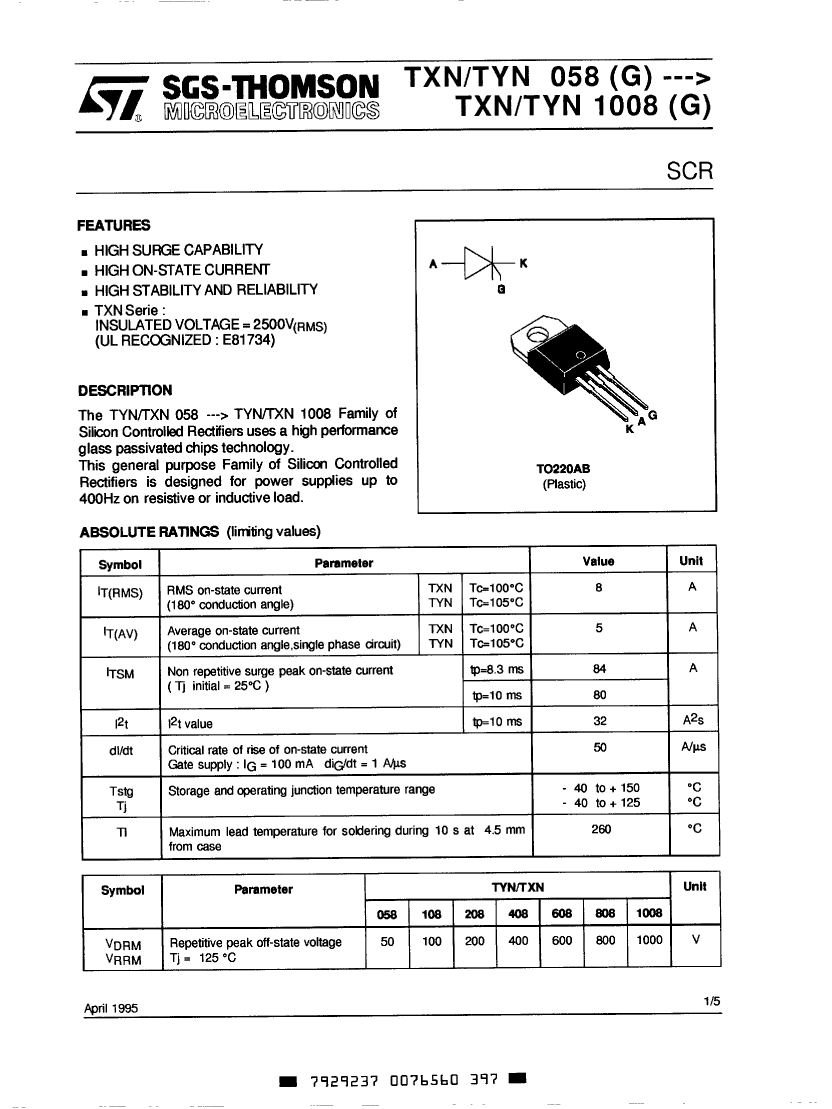

TXN058G Overview

Silicon controlled rectifiers

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	STMicroelectronics

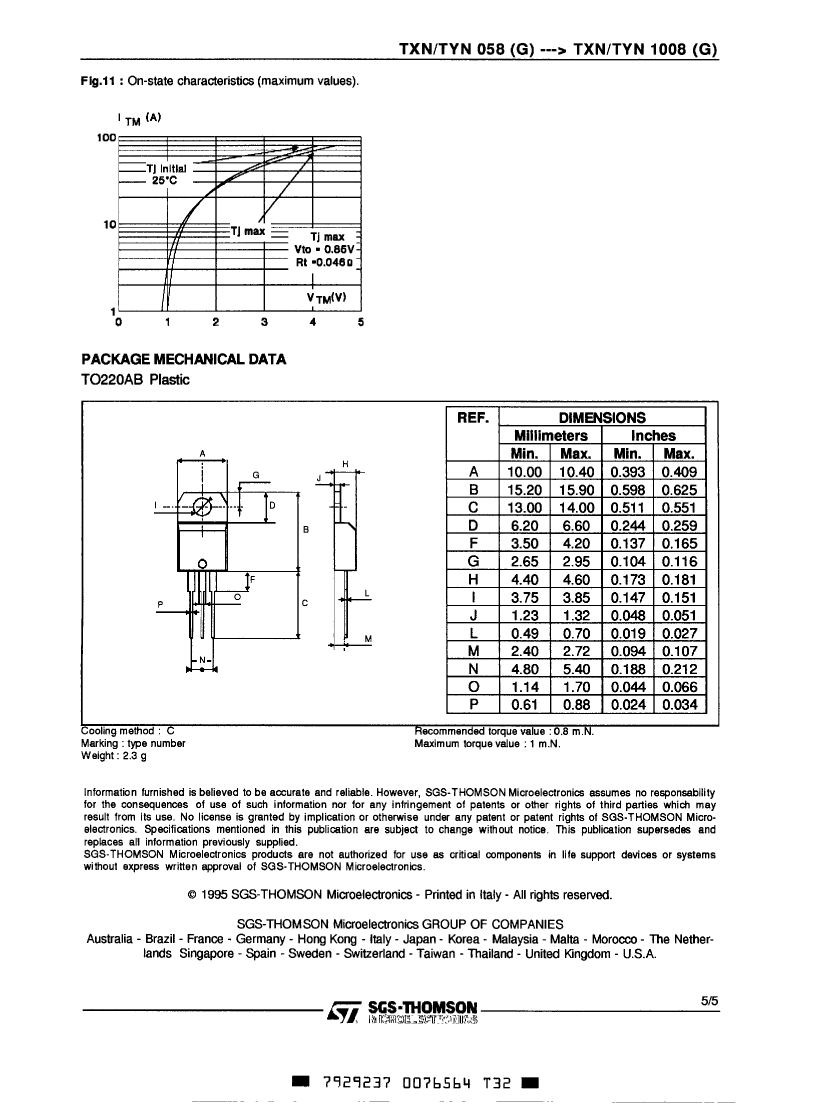

Parts packaging code	TO-220AB
package instruction	TO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
Shell connection	ISOLATED
Nominal circuit commutation break time	70 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	45 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum leakage current	2 mA
On-state non-repetitive peak current	84 A
Number of components	1
Number of terminals	3
Maximum on-state current	5000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	8 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	50 V
Repeated peak reverse voltage	50 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
