Audio
General
Information
5 & 6 Contact
These connectors are universally used in communications equipment where
the highest reliability is needed under the most severe environmental
conditions. The standard 5-contact connectors meet all requirements of MIL-
C-55116, latest revision. 6-contact connectors as well as the light-weight
versions are designed to meet all performance requirements of MIL-C-55116.
Mating is accomplished quickly with a twist-lock motion. Non-rigid contacts
are spring loaded and provide positive electrical connection with minimum
voltage drop.
The 10-contact connectors conform to MIL-C-10544, latest revision.
Construction and mating action are similar to the 5-contact line. Years of
successful field experience have proven the remarkable reliability of this line
of connectors for all types of military and commercial communications
equipment.
10 Contact
Audio
6

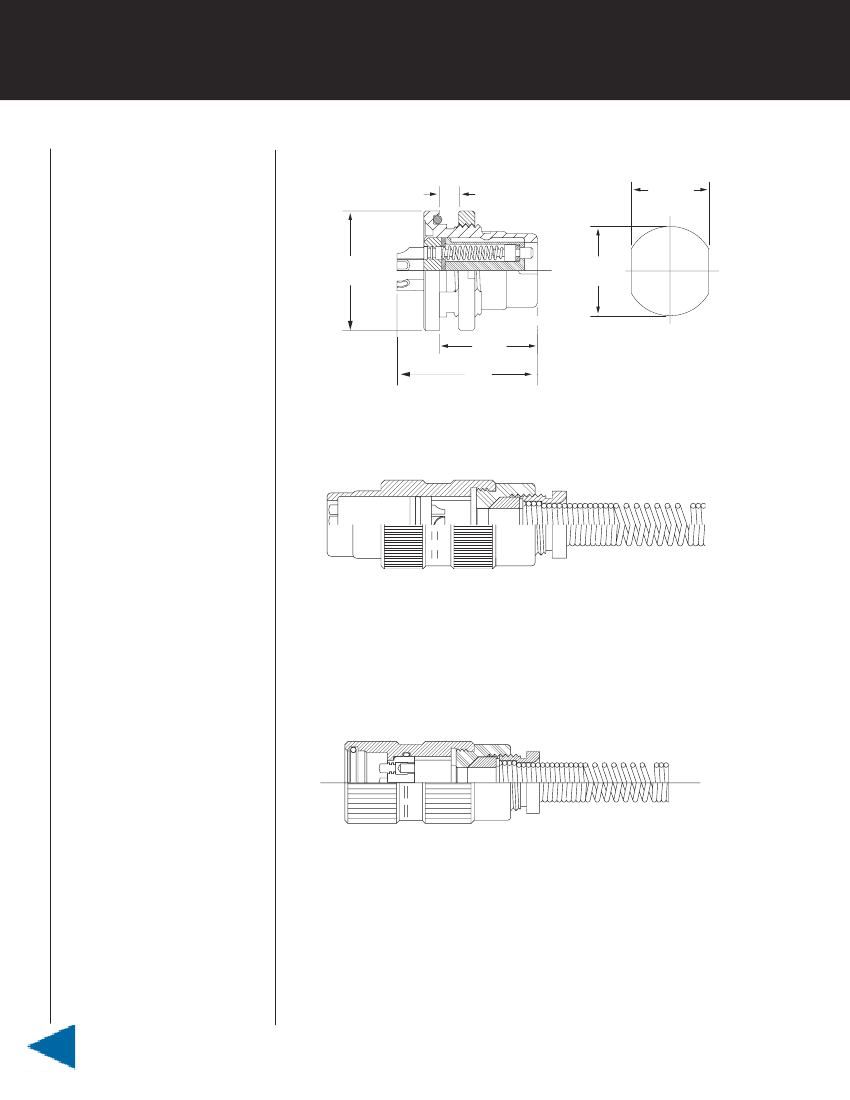

5 & 6 Contact
Materials &
Finish
Shells
Panel Nuts
Contacts
Insulators
Stainless steel, passivated, sand-blasted.
Stainless steel, passivated, sand-blasted.
Copper alloy, .000030 gold per MIL-G-45204, Type I, Class 0 over
.001 nickel.
Diallyl phthalate per MIL-M-14F, Type MDG.
Specifications
Electrical
Dielectric Strength—500 V RMS.
Insulation Resistance—1000 Megohms, Min.
Contact Resistance (mated)—0.050 Ohms, Max.
Air Pressure—2.5 psi.
Immersion—48 hrs. at 6 ft.
Durability—3000 cycles, mate and unmate.
Mechanical

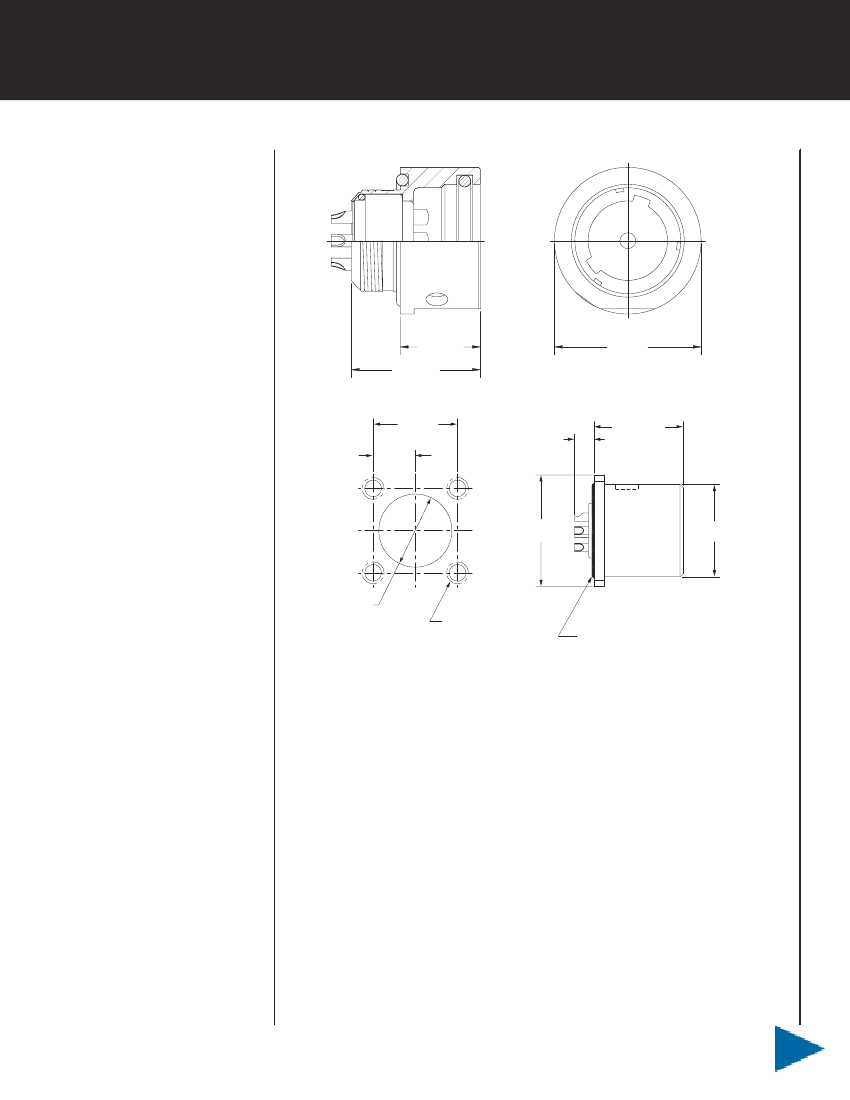

10 Contact
Materials &
Finish
Receptacle Shells
Plug Shells
Plug Rear Housing
Panel Nuts
Contacts
Insulators
Stainless steel, passivated, sand-blasted.
Stainless steel, black passivated.
Aluminum, black oxide.
Stainless steel, passivated, sand-blasted.
Copper alloy, .000030 gold.
Diallyl phthalate per MIL-M-14F, Type MDG.
Audio
Specifications
Electrical
Dielectric Strength—500 V RMS.
Insulation Resistance—1000 Megohms, Min.
Contact Resistance (mated)—0.015 Ohms, Max.
Air Pressure—2.5 psi.
Immersion—48 hrs. at 6 ft.
Durability—3000 cycles, mate and unmate.
Mechanical
7
