A5301-230-020-91-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> A5301-230-020-91-Z

Preview

A5301-230-020-91-Z: DescriptionTelecom and Datacom Connector, 12 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A5301-230-020-91-Z Overview

Telecom and Datacom Connector, 12 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle

A5301-230-020-91-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.606 inch
subject depth	0.63 inch
body length	1.11 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	A5301
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

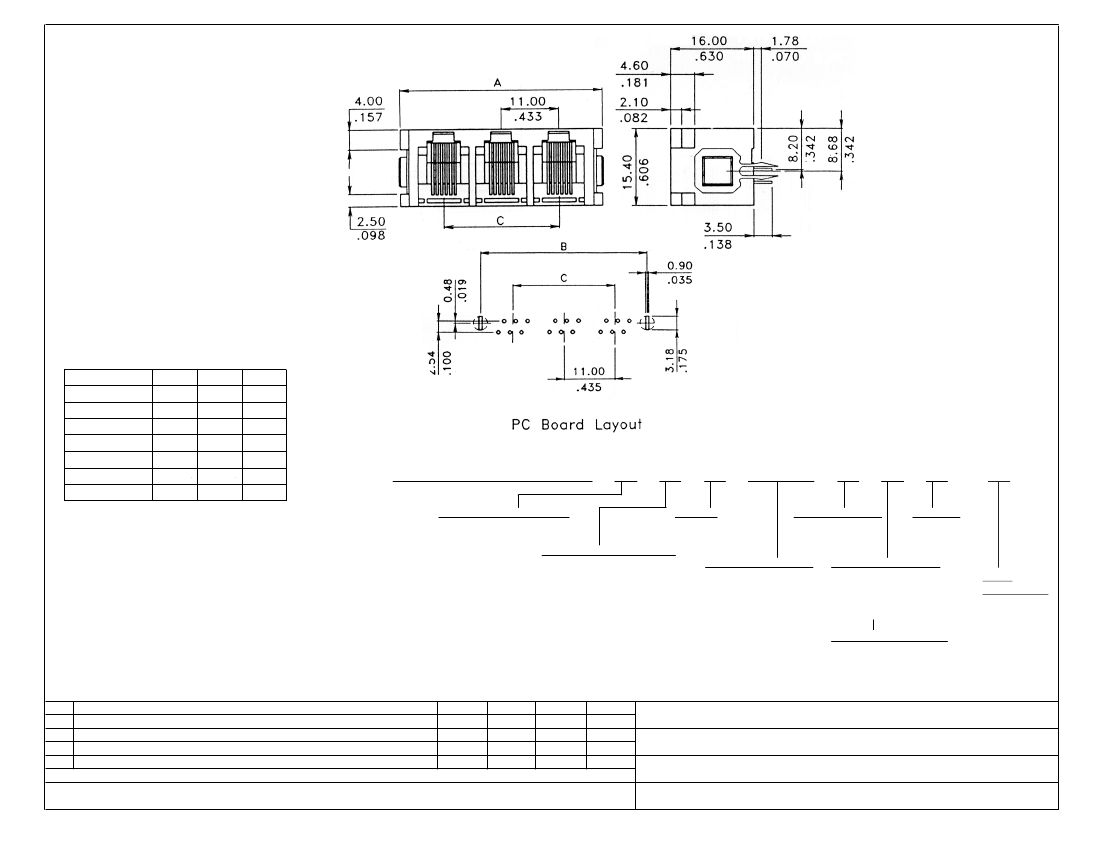

DIMENSION(mm)

NO. PORTS

2

3

4

5

6

7

8

A

28.20

39.20

50.20

61.20

72.20

83.20

94.20

B

25.20

36.20

47.20

58.20

69.20

80.20

91.20

C

11.00

22.00

33.00

44.00

55.00

66.00

77.00

HOW TO ORDER:

A

5

3

0

1

-

2

X

0

-

X

-

X

-

Z

ELECTRICAL:

NUMBER OF POSITIONS:

2 - 6 POS

SHIELD:

0 - NON SHIELDED

CURRENT RATING: 1.5A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 500M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC FOR 1 MIN.

OPERATING TEMPERATURE: -25° C TO +85° C

NUMBER OF CONTACTS:

1 - 2 CON

3 - 6 CON

2 - 4 CON

KEYING OPTION:

0 - W/ OUT KEY

1 - W/ KEY

FLANGE:

0 - NO FLANGE

1 - FLANGE

NUMBER OF PORTS:

02 thru 8

MATERIAL:

PLATING OVERALL:

0 - FULL Au

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

RoHS

COMPLIANT

CONTACT: PHOSPHOR BRONZE

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Rev

0

Issued

A

Revised for RoHS Compliance

SCALE:

N/A

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-0.15

Drawn Checked Approved

Date

S.E.

S.M.

10/1/97

S.M.

WHS

S.M.

10/2/06

SMP TECHNOLOGY, INC.

RJ12, Multiport, Top Entry, Non-Shielded, w/ Metal PCB Mounting Leg

ANGLE +/-

UNIT: mm

SERIES: A 5 3 0 1 - 2 X X - X X X - X X - Z

Pg: 1

A5301-230-020-91-Z Related Products

	A5301-230-020-91-Z	A5301-230-020-71-Z	A5301-230-020-61-Z	A5301-230-020-81-Z
Description	Telecom and Datacom Connector, 12 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 12 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 12 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 12 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknow	unknow	unknow	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.606 inch	0.606 inch	0.606 inch	0.606 inch
subject depth	0.63 inch	0.63 inch	0.63 inch	0.63 inch
body length	1.11 inch	1.11 inch	1.11 inch	1.11 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	A5301	A5301	A5301	A5301
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	12	12	12
Base Number Matches	1	1	1	1
Plating thickness	30u inch	10u inch	-	15u inch
