UH4PBC, UH4PCC, UH4PDC
www.vishay.com
Vishay General Semiconductor
High Current Density Surface Mount Ultrafast Rectifiers
eSMP Series
K
®
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Oxide planar chip junction
• Ultrafast recovery times for high frequency
• Low forward voltage drop, low power loss
1
2
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
• Meets MSL level 1, per
LF maximum peak of 260 °C
• AEC-Q101 qualified
J-STD-020,
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant, and
automotive grade
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
at I
F
= 2.0 A
T
J
max.
2 x 2.0 A
100 V, 150 V, 200 V
40 A
25 ns
0.77 V
175 °C
TYPICAL APPLICATIONS
For
use
in
high
frequency
rectification
and
freewheeling application in switching mode converters and
inverters for consumer computer, automotive, and
telecommunication applications.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current
(fig. 1)
total devive
per diode
I
F(AV)
I
FSM
T
J
, T
STG
V
RRM
SYMBOL
UH4PBC
H4BC
100
UH4PCC
H4CC
150
4.0
2.0
40
- 55 to + 175
A
°C
UH4PDC
H4DC
200
V
A
UNIT
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load per diode
Operating junction and storage temperature range
Revision: 29-May-12
Document Number: 88991
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
UH4PBC, UH4PCC, UH4PDC
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
I
F
= 1.0 A
Instantaneous forward voltage
per diode
I
F
= 2.0 A
I
F
= 1.0 A
I
F
= 2.0 A
Reverse current per diode
Maximum reverse recovery time per diode
Typical reverse recovery time per diode
Typical softness factor (t
b
/t
a
)per diode
Typical reverse recovery current per diode
Typical stored charge per diode
Typical junction capacitance per diode
Rated V
R
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
SYMBOL
TYP.
0.84
0.93
0.68
0.77
-
6.4
20
t
rr
24
S
I
RM
Q
rr
C
J
0.3
5.4
88
21
-
-
-
-
-
-
A
nC
pF
MAX.
-
1.05
-
0.85
5
25
25
μA
ns
V
UNIT
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
I
F
= 1.0 A, dI/dt = 50 A/µs,
V
R
= 30 V, I
rr
= 0.1 I
RM
I
F
= 2 A, dI/dt = 200 A/µs,
V
R
= 200 V, I
rr
= 0.1 I
RM
T
A
= 125 °C
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
≤
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise specified)
PARAMETER
Typical thermal resistance per diode
SYMBOL
R
θJA
R
θJL
(1)
UH4PBC
UH4PCC
60
4
UH4PDC
UNIT
°C/W
Note
(1)
Units mounted on recommended PCB 1 oz. pad layout
ORDERING INFORMATION
(Example)
PREFERRED P/N
UH4PDC-M3/86A
UH4PDC-M3/87A
UH4PDCHM3/86A
(1)
UH4PDCHM3/87A
(1)
(1)
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
PACKAGE CODE
86A
87A
86A
87A
BASE QUANTITY
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
Automotive grade
Revision: 29-May-12
Document Number: 88991
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
UH4PBC, UH4PCC, UH4PDC
www.vishay.com

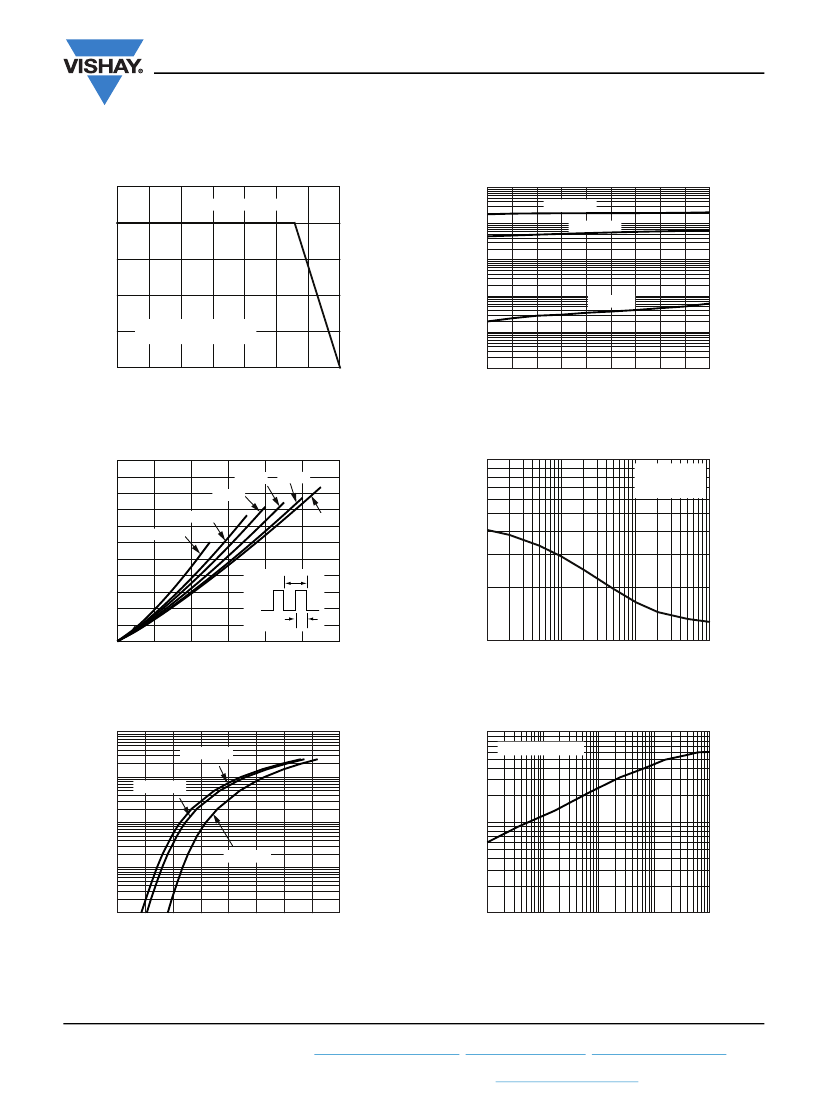

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
°C
unless otherwise noted)
Vishay General Semiconductor
5
100
Average Forward Rectified Current (A)
Instantaneous Reverse Current (µA)
Resistive or Inductive Load
4
T
A
= 150 °C
10
T
A
= 125 °C
3
1
2
T
L
measured
at the Cathode Band Terminal
0.1
T
A
= 25 °C
1
0.01
0
0
25
50
75
100
125
150
175
0.001
10
20
30
40
50
60
70
80
90
100
Lead Temperature (°C)
Percent of Rated Peak Reverse
Voltage
(%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics Per Diode
2.2
2.0
D = 0.5
D = 0.3
D = 0.2
D = 0.1
D = 1.0
D = 0.8
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
0.4
T
D = t
p
/T
t
p
10
0.1
1
10
100
0.4
1.2
1.6
2.0
2.4
Junction Capacitance (pF)
Average Power Loss (W)
1.8
Average Forward Current (A)
Reverse
Voltage
(V)
Fig. 2 - Forward Power Loss Characteristics Per Diode
Fig. 5 - Typical Junction Capacitance Per Diode
100
100
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
T
A
= 150 °C
10
T
A
= 125 °C
Junction to Ambient
1
10
T
A
= 25 °C
0.1
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
1
0.01
0.1
1
10
100
Instantaneous Forward
Voltage
(V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics Per Diode
Fig. 6 - Typical Transient Thermal Impedance Per Diode
Revision: 29-May-12
Document Number: 88991
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
UH4PBC, UH4PCC, UH4PDC
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 29-May-12
Document Number: 88991
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
