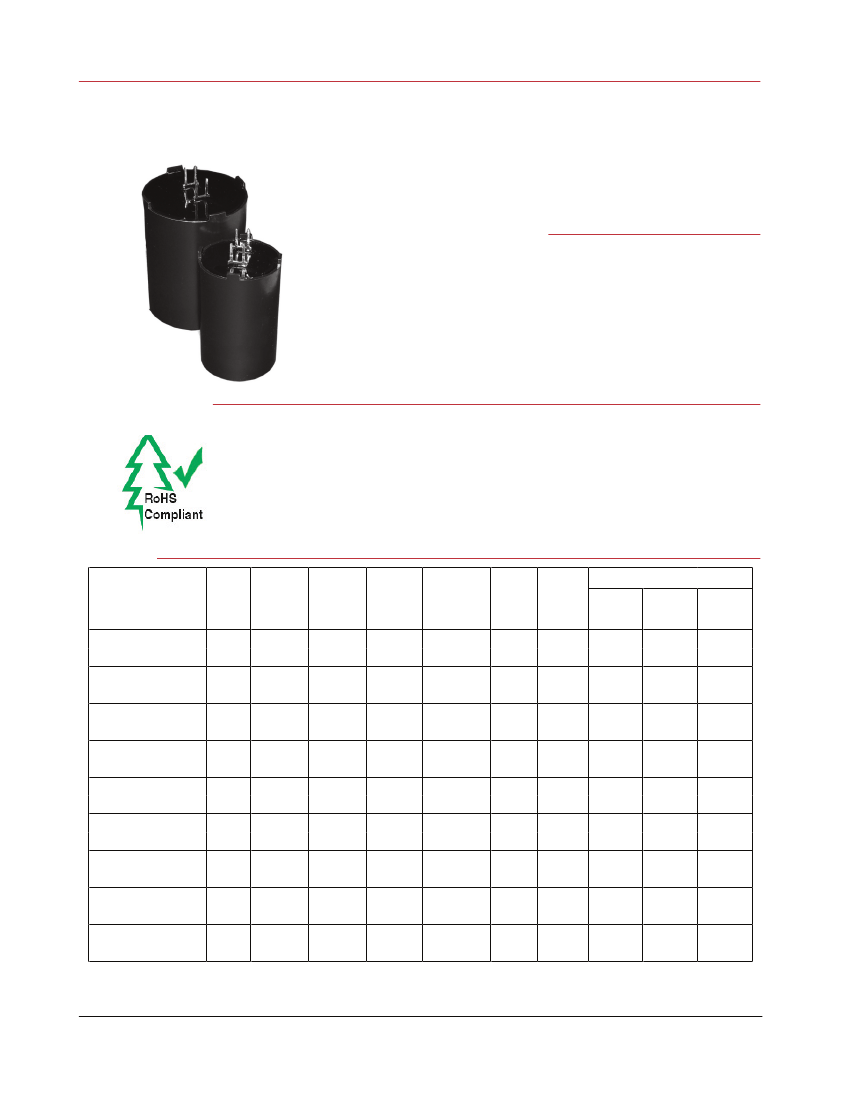

Type UNL
ElectroFilm High Current Capacitors
Metallized Polypropylene Dielectric
Constructed using a low-loss polypropylene film, the UNL series of-
fers high ripple current capabilities and high capacitance values making
them ideal for electrolytic bank replacement and high ripple current
applications
Highlights / Applications
Advantages over Electrolytics
- Exceptionally low ESR
- Up to 10 times the ripple current
- Non-polar
- Higher voltage ratings
- Dry construction - no electrolyte
- Improved reliability
Typical Applications
- High Voltage Inverters
- DC Bus Link
- DC Filtering
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Insulation Resistance:
Dielectric Withstand:
Ratings
Catalog
Part Number*
UNL4W30K-F
UNL4W80K-F
UNL5W35K-F
UNL5W100K-F
UNL6W30K-F
UNL6W80K-F
UNL7W20K-F
UNL7W50K-F
UNL8W15K-F
UNL8W40K-F
UNL9W13P5K-F
UNL9W35K-F
UNL10W10K-F
UNL10W25K-F
UNL12W7P5K-F
UNL12W20K-F
UNL15W4P7K-F
UNL15W13K-F
Cap
(µF)
30.0
80.0
35.0
100.0
30.0
80.0
20.0
50.0
15.0
40.0
13.5
35.0
10.0
25.0
7.5
20.0
4.7
13.0
Voltage
(Vdc)
400
400
500
500
600
600
750
750
800
800
900
900
1000
1000
1200
1200
1500
1500
D
Dia.
(mm)
35
50
35
50
35
50
35
50
35
50
35
50
35
50
35
50
35
50
H
Height
(mm)
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
4.7 µF to 100 µF
400 Vdc to 1500 Vdc
±10% standard
–55 ºC to +85ºC
≥ 10,000MΩ
1.25 x Rated Vdc 60s - Between Terminals
3000 Vac 60s - Terminals to Case
dV/dt
(V/µs)
30
25
26
22
30
25
37
30
42
35
43
36
50
40
60
50
72
60
Peak
Current
(A)
900
2000
910
2200
900
2000
740
1500
630
1400
580
1260
500
1000
450
1000
338
780
Ripple Current @ 100 kHz
25 ºC
(Arms)
24.2
35.0
22.0
31.8
20.7
30.5
19.0
29.4
18.8
28.4
18.0
27.5
17.5
26.7
16.0
26.0
15.0
24.6
50 ºC
(Arms)
19.4
28.0
18.2
25.4
17.0
24.4
16.0
23.5
15.0
22.8
14.5
22.0
13.7
21.4
12.0
20.7
11.5
19.7
75 ºC
(Arms)
14.6
14.3
13.0
13.2
12.0
12.6
9.9
12.0
9.8
11.7
9.6
11.3
9.0
11.0
8.4
10.7
7.8
10.1
ESR
@ 100 kHz
(mΩ)
6.0
5.0
8.0
6.0
9.0
6.5
10.0
7.0
10.0
7.5
10.5
8.0
12.0
8.5
13.5
9.0
15.0
10.0
*Add ‘S’ after ‘K’ for short pins
Additional values available upon request.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type UNL
ElectroFilm High Current Capacitors
Part Numbering System
UNL
Type
UNL
7
Voltage
4 = 400 Vdc
5 = 500Vdc
6 = 600 Vdc
7 = 750 Vdc
8 = 800 Vdc
9 = 900 Vdc
10 = 1000 Vdc
12 = 1200 Vdc
15 = 1500 Vdc
W20
Capacitance
W80 = 80µF
W100 = 100µF
W30 = 30µF
W50 = 50µF
W40 = 40µF
W13P5 = 13.5µF
W10 = 10µF
W7P5 = 7.5µF
W4P7 = 4.7µF
K
Tolerance
K = ±10%
J = ±5%
Optional
S
Leads
S = Short Pins
Blank = Long Pins
–F
RoHS
Compliant
Outline Drawing
12.7±0.8
(0.5±0.031)
5.1±0.127
(0.2± 0.005)
PC Board Mounting Hole Pattern
12.7±0.8
(0.5±0.031)
5.1±0.127
(0.2±0.055)
2.54±0.8
(0.1±0.031)
D±0.8
(D±0.031)
h*±0.5
(h*±0.02)
0.8±0.076
(0.031±0.003)
1.5±0.1
(0.06±0.005)
H±0.5
(H±0.02)
Pins are tin plated brass - tapered
1.27 (0.05) - 1.14 (0.045)
D and H dimensions in Ratings Table
*Standard Long Pins: h = 7.6 (0.3)
‘S’ Style Short Pins: h = 3.8 (0.15)
Dimensions: Millimeters (Inches)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type UNL
ElectroFilm High Current Capacitors
Typical Performance Curves

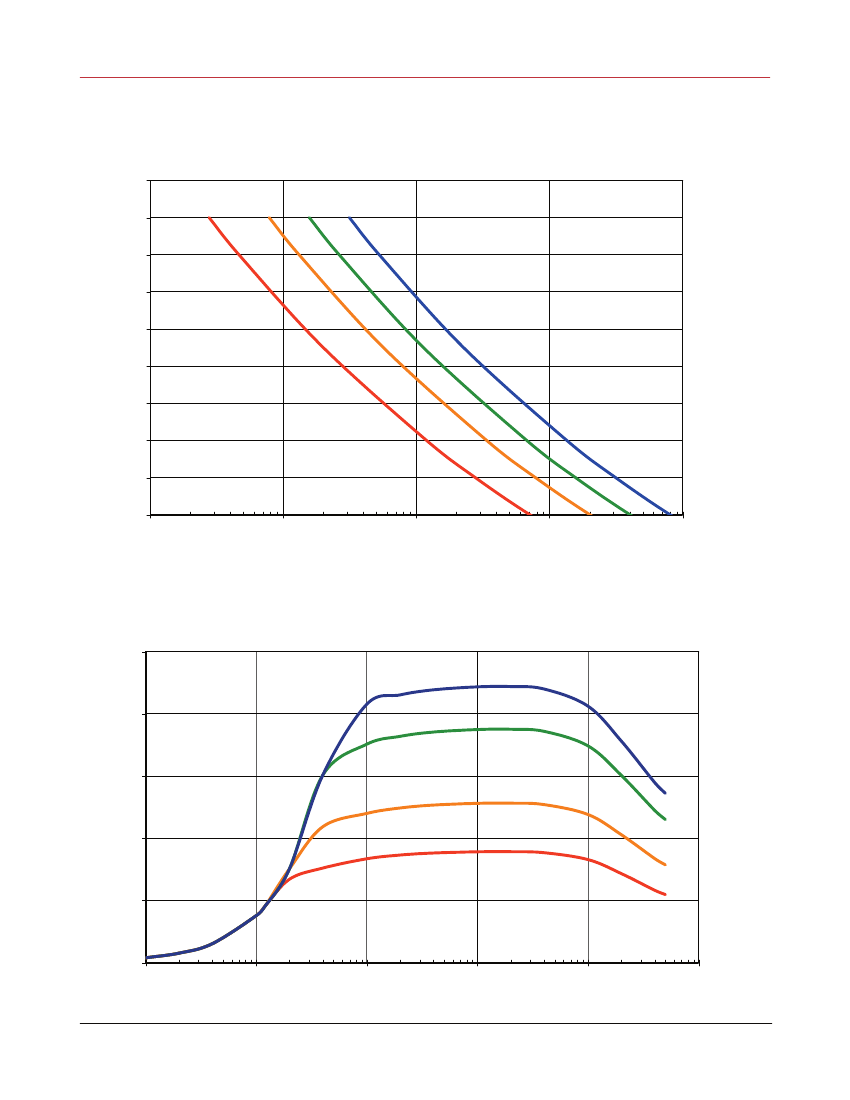

Expected Lifetime vs Applied Voltage and Core Temp
1.7
1.6
Applied / Rated Voltage Ratio (Va/Vr)
1.5
1.4
1.3
60ºC
1.2
70ºC
1.1
1
0.9
0.8
100
85ºC
50ºC
1000
10000
Expected Lifetime (h)
100000
1000000
Ripple Current Ratings vs Temperature and Frequency
UNL6W30K-F
25
25ºC
20
Ripple Current (Amps RMS)
50ºC
15
70ºC
10
85ºC
5
0
10
100
1000
10000
Frequency (Hz)
100000
1000000
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type UNL
ElectroFilm High Current Capacitors
Typical Performance Curves

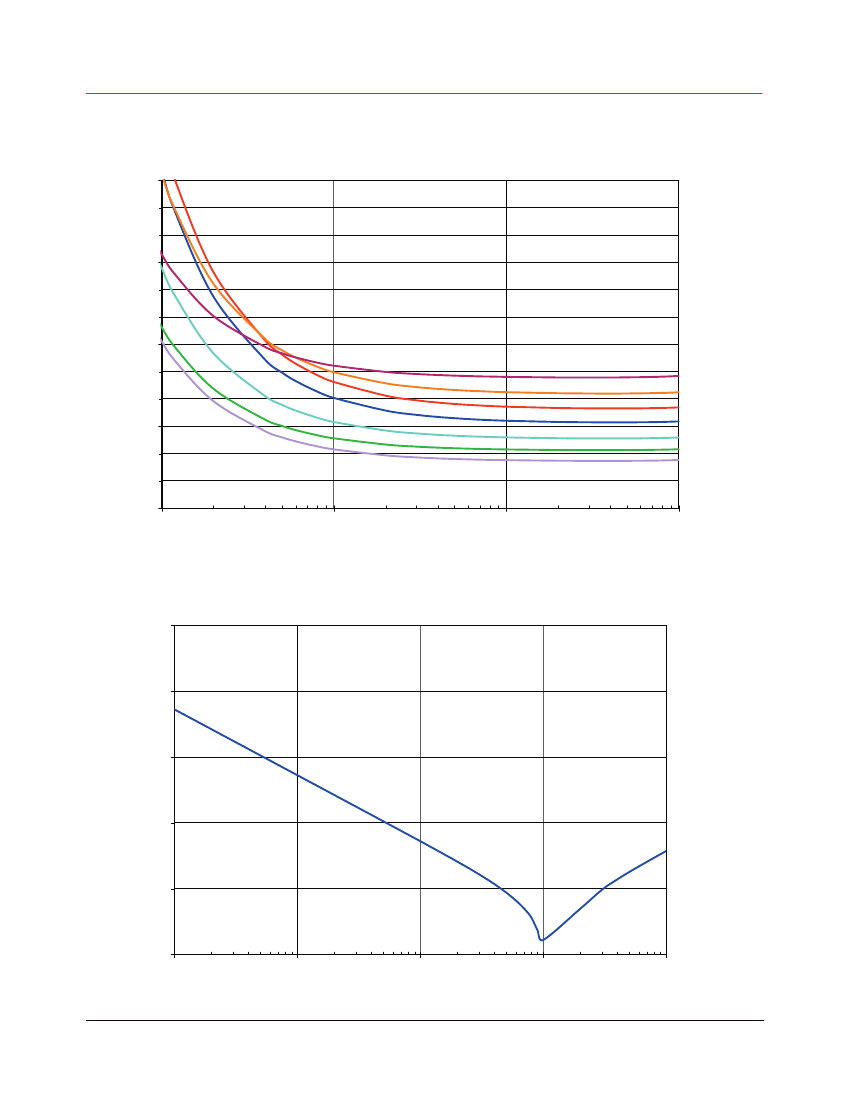

UNL6W30K-F ESR vs Frequency and Temperature
15
12
ESR (m½)
9
85ºC
65ºC
45ºC
25ºC
0ºC
-20ºC
-40ºC
6
3
100
1000
Frequency (Hz)
10000
100000
UNL6W30K-F Impedance vs Frequency
1000
100
Impedance (½)
10
1
0.1
0.01
100
1000
10000
Frequency (Hz)
100000
1000000
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
