UU16LF_06: DescriptionAC COMMON MODE COIL; File Size144KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Compare View All

UU16LF_06 Overview

AC COMMON MODE COIL

Preview

Download Datasheet

View All

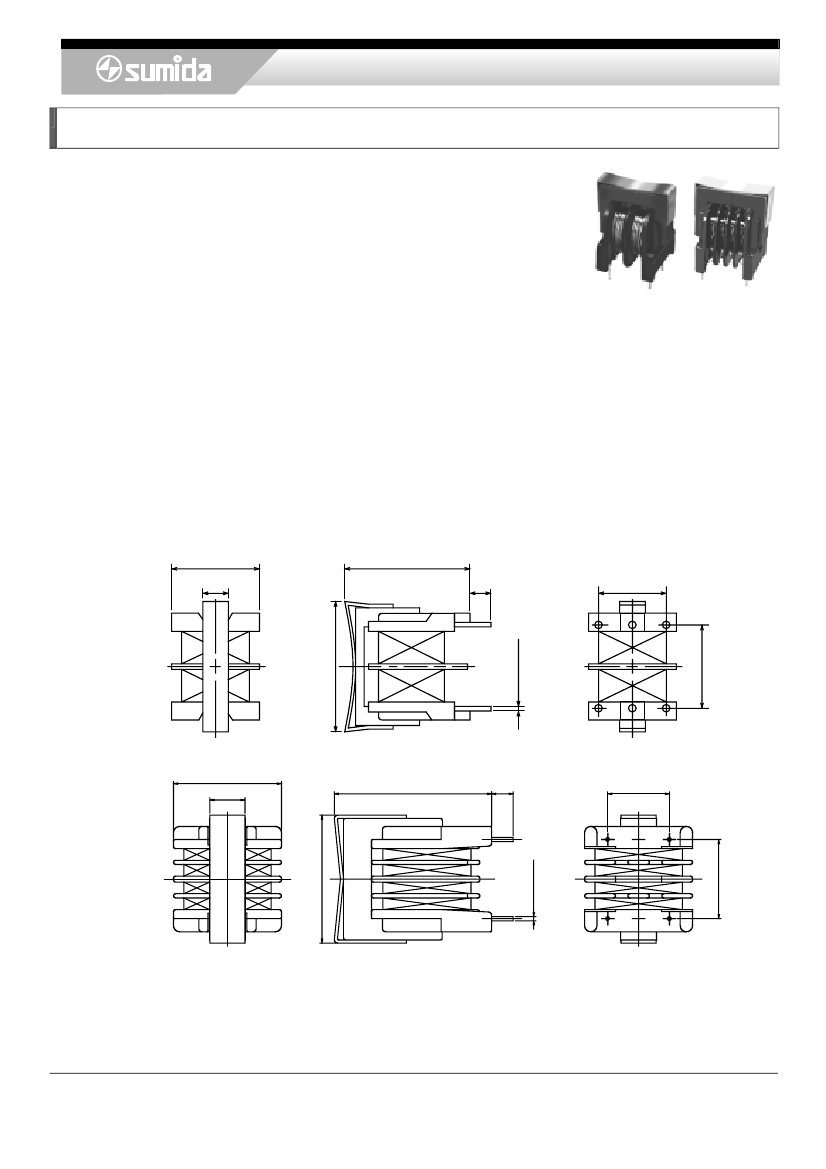

AC COMMON MODE COIL <Pin Type: UU16 Series>

Type: UU16LF, UU16LFB

◆

Product Description

・22.0×20.0mm

Max.(L×W), 28.5mm Max. Height.

・Inductance

range: 1.5mH½30mH

・Rated

current range: 0.4½1.90A(UU16LF);0.35½1.75A(UU16LFB).

・In

addition to the standard versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Ideally

used as AC common mode noise filter for TV, VCR, Switching power supply, NC

machine, PC＆PC related advice, measurement and control unit with better attenuation

characteristics in low frequency band.

・UU16LFB

has better high frequency characteristics for its split bobbin structure.

・RoHS

Compliance.

◆

Dimensions (mm)

20.0 MAX.

6.60 MAX.

28.5 MAX.

4.5±0.5

10.0±0.5

22. 0 M AX .

UU16LF

20 .0 M AX .

6 . 20 MA X.

2 8. 5 MA X.

4. 5 ±0 .5

0.70±0.2

1 0. 0 ±0 .5

13.0±0.5

0.70 ±0.2

13.0 ±0.5

UU16LFB

＊

Dimension does not include solder used on coil.

＊

Terminal pitch is measured at the base(not from tip of the pin)

Please refer to the sales offices on our website for a representative near you

22.0 MAX.

www.sumida.com

1/2

UU16LF_06 Related Products

	UU16LF_06	UU16LFNP-152	UU16LFNP-203	UU16LFNP-303	UU16LFNP-402
Description	AC COMMON MODE COIL	AC COMMON MODE COIL	AC COMMON MODE COIL	AC COMMON MODE COIL	AC COMMON MODE COIL
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA
package instruction	-	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	-	unknow	unknow	unknow	unknow
Factory Lead Time	-	16 weeks	-	16 weeks	16 weeks
Other features	-	INDUCTANCE 1.5 MILLIHENRY	INDUCTANCE 20 MILLIHENRY	INDUCTANCE 30 MILLIHENRY	INDUCTANCE 4 MILLIHENRY
filter type	-	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	-	28.5 mm	28.5 mm	28.5 mm	28.5 mm
length	-	22 mm	22 mm	22 mm	22 mm
Manufacturer's serial number	-	UU16	UU16	UU16	UU16
Installation type	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
working frequency	-	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	-	L22.0XB20.0XH28.5 (mm)/L0.866XB0.787XH1.122 (inch)	L22.0XB20.0XH28.5 (mm)/L0.866XB0.787XH1.122 (inch)	L22.0XB20.0XH28.5 (mm)/L0.866XB0.787XH1.122 (inch)	L22.0XB20.0XH28.5 (mm)/L0.866XB0.787XH1.122 (inch)
Rated current	-	1.9 A	0.5 A	0.4 A	1.2 A
Base Number Matches	-	1	1	1	1
