M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 4-pin,
A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A; PUR black cable,
4-wires, 0.34 mm²
Product Description
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 4-pin, A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A; PUR black cable,
4-wires, 0.34 mm²

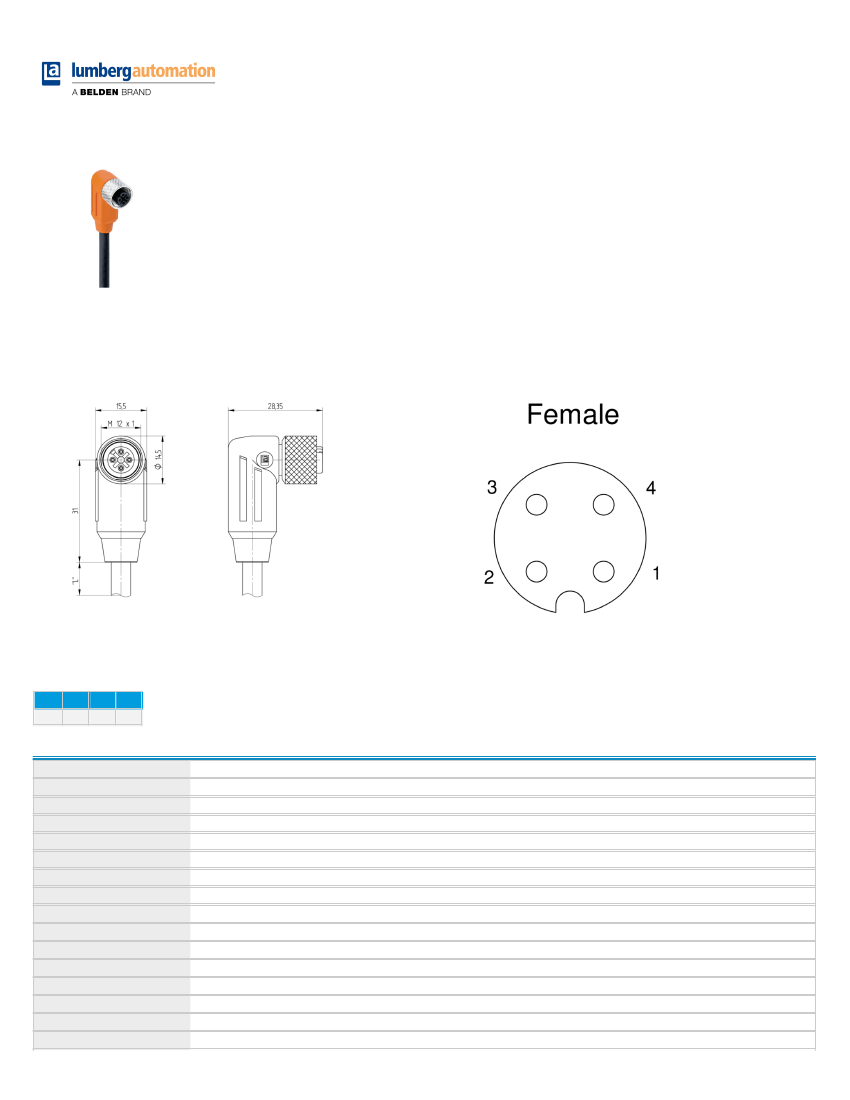

Technical Drawing
Technical Specifications
Face View
Pin 1 Pin 2 Pin 3 Pin 4
brown white blue
black
Technical Data
Product Family:
Product Sub Family:
Brand:
Connector Type:
Type of Contact / Gender:
Connector Design:
Number of Pins:
Coding:
Shielding:
Attachment Type:
Rated Voltage:
Rated Voltage (UL):
Rated Impulse Voltage:
Operating Voltage:
Rated Current:
Rated Current (UL):
Sensor / Actuator Connectors
M12 Standard
Lumberg Automation
Cordset, single ended
Female
Angled
4
A
Shielded
Coupling Nut
60 V
250 V AC
1.5 kV
50 V AC / 60 V DC
4A
4A
Contact Resistance:
Insulation Resistance:
Mating Cycles:
Ambient Temperature (Operation):
Operating Temperature (UL):
Protection Degree / IP Rating:
Design Standard:
Pollution Degree:
Overvoltage Category:
≤ 10 mOhm
˃ 10^9 Ohm
≤ 100
- 40 °C - + 90 °C
max. + 50 °C
IP65, IP67, IP68 (1 m / 24 h), IP69K
IEC 61076-2-101
3 acc. to DIN EN 60664-1 (VDE 0110-1)
III acc. to DIN EN 60664-1 (VDE 0110-1)
Materials
Contact Base Material:
Contact Plating:
Contact Bearer Material:
Contact Bearer Color:
Flammability Class (Contact Bearer):
Molded Body Material:
Molded Body Color:
Flammability Class (Molded Body):
Attachment Material:
Attachment Plating:
Shielding Material:
Shielding Material:
O-Ring Material:
CuSn
Cu/Au
PA
Black
UL 94 V-0
TPU
Orange
UL 94 V-2
CuZn
Nickel-plated
Housing: GD-Zn, nickel-plated
Sleeve: CuZn, tin-plated
FKM, green
Additional Technical Data
Fastening Torque (Attachment):
M 12x1: (50-60) Ncm, hand-tight
Cable Data
Cable Number:
Number of Wires:
Minimal Bending Radius (Fixed Inst):
Minimal Bending Radius (Flexible Inst):
Cycles (Bending):
Cycles (Torsion):
Conductor material:
Cable Jacket Material:
Cable Jacket Color:
Cable Diameter D:
Wire Insulation Material:
Insulated Wire Diameter:
Overall Shield (Cable):
Ambient Temperature (Fixed
Installation):
288
4
˃5xD
˃ 10 x D
˃5M
˃ 1 M @ ± 180 °/1 m
Cu
PUR
black
ø 5.50 ± 0.20 mm
PP
ø 1.30 mm
Mesh wire
- 50 °C - + 80 °C
Ambient Temperature (Flex Installation): - 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst): - 25 °C - + 60 °C
UL Cable Type:
Flammability Class (Cable Jacket):
Cable Characteristics:
AWM: 20549
DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness
flexibilty
Approvals
UL-File:
UL:
E104696
UL 2238; cURus
Safety & Environmental Compliance
RoHS Compliant:
yes
Resistances
Halogenfree:
Oil Resistance:
DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
Good chemical and oil resistance
Notes
Protection Degree / IP Rating Note:
Note Derating:
Note:
Variants
Item #
8725
Item Description
RKWTS 4-288/1 M
Cable Length
1m
2m
3m
5m
6m
10 m
15 m
20 m
25 m
30 m
35 m
40 m
45 m
50 m
60 m
70 m
only if mounted and locked in combination with Hirschmann / Lumberg Automation connector
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without
notice, and the listing of such information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "ASIS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages
(including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden's knowledge, information and belief
at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product
Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and
regulations based on their individual usage of the product.
