CR05-2941-FN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CR05-2941-FN

CR05-2941-FN: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.05W, 2940ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP; CategoryPassive components The resistor; File Size2MB，16 Pages; ManufacturerASJ Pte Ltd.; Websitehttps://www.asj.com.sg/; Environmental Compliance

Download Datasheet Parametric Compare View All

CR05-2941-FN Overview

Fixed Resistor, Metal Glaze/thick Film, 0.05W, 2940ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP

CR05-2941-FN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7182194288
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PUNCHED PAPER, 13 INCH
Rated power dissipation(P)	0.05 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	2940 Ω
Resistor type	FIXED RESISTOR
size code	0201
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	25 V

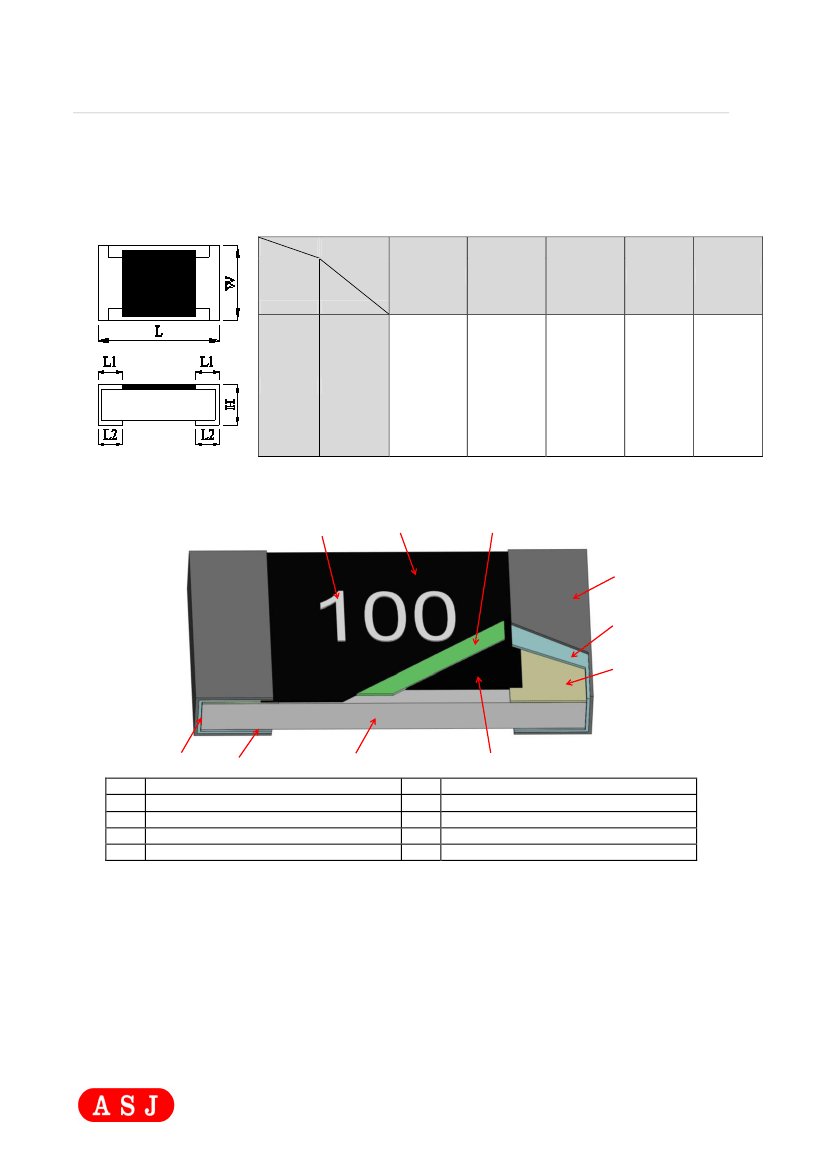

Preview

Download Datasheet

View All

Towards Excellence in

Quality,

Service & Innovation

DATA SHEET

General Purpose Thick Film Chip Resistor

CR Series

0.1% TO 5%, TCR -200 TO +400

SIZE:

0201

RoHs Compliant

Product Specification –April 08, 2021 V.4

CR05-2941-FN Related Products

	CR05-2941-FN	CR05-2554-FN	CR05-2554-FY	CR05-2942-FK	CR05-2942-FN	CR05-2942-FY
Description	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 2940ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 2550000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 2550000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 29400ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 29400ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 29400ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	7182194288	7182193161	7182197649	7182184940	7182193400	7182197803
package instruction	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, PUNCHED PAPER, 13 INCH	TR, PUNCHED PAPER, 13 INCH	TR, PUNCHED PAPER, 7 INCH	TR, PUNCHED PAPER, 7 INCH	TR, PUNCHED PAPER, 13 INCH	TR, PUNCHED PAPER, 7 INCH
Rated power dissipation(P)	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Guideline	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
resistance	2940 Ω	2550000 Ω	2550000 Ω	29400 Ω	29400 Ω	29400 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	0201	0201	0201	0201	0201	0201
surface mount	YES	YES	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	1%	1%	1%	1%	1%	1%
Operating Voltage	25 V	25 V	25 V	25 V	25 V	25 V
