BHD-30-ST-GD-SL: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-30-ST-GD-SL Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-30-ST-GD-SL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304488337
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.323 inch
subject depth	0.386 inch
body length	2.044 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BHD
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

SPECIFICATIONS

Contact Material:

Insulator Material:

Finish:

Brass

PBT

Gold over Nickel

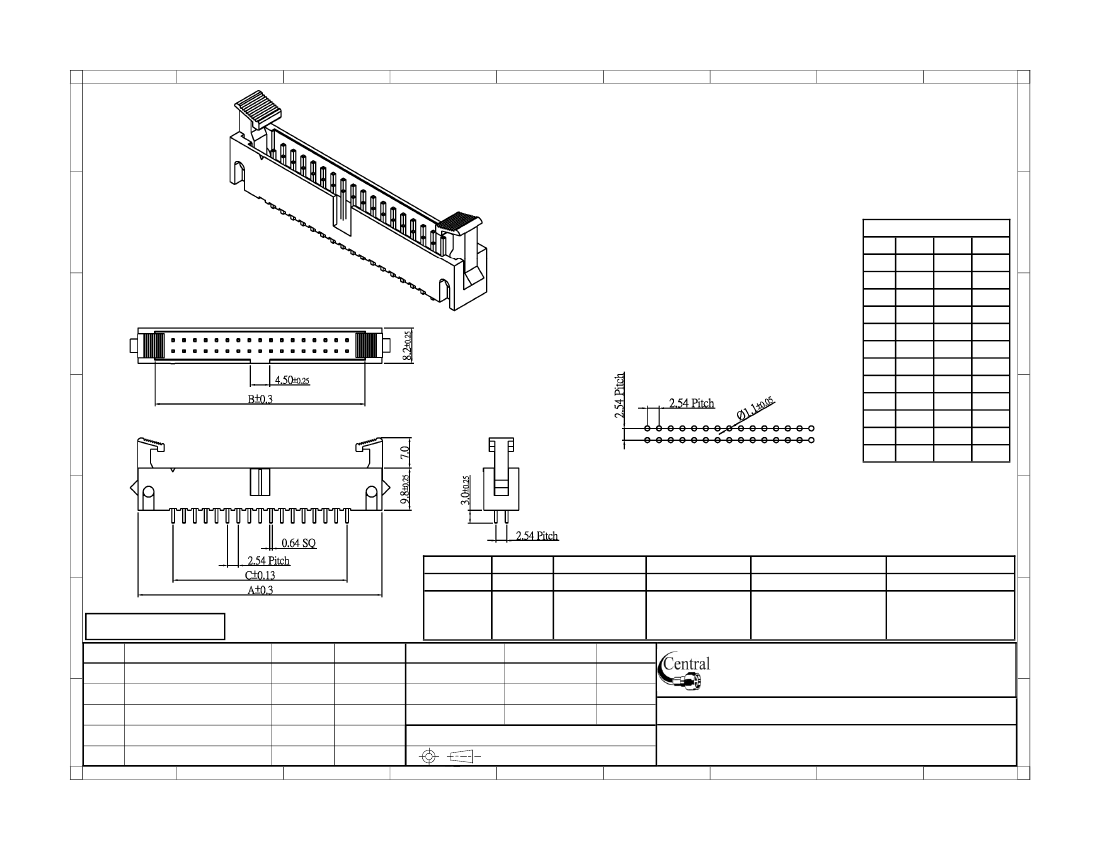

Dimensions

Pos. A

10 26.52 17.96

14 31.60 23.04

16 34.14 25.58

20 49.22 30.68

24 44.30 35.74

26 46.84 38.28

30 51.92 43.36

34 57.00 48.44

40 64.62 56.06

50 77.32 68.76

60 102.7 94.16

64 107.8 99.24

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

RoHS compliant

Rev.

Description

Date

Approved

Series

Positions

Mounting

Plating

Latches

Options

BHD

Box header See chart ST=Straight

GD=Gold

SL=Short latch (3.9mm) [blank]=None

RA=Right angle SG=Selective gold LL=Long latch (7.68mm) SM=Surface mount

TN=Tin

NL=No latch

SPL=Special pin length

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/22/08

08/22/08 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-XX-ST-XX-XL-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: 2.54 Pitch Box Header Straight Type
