221V06F27 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 221V06F27

221V06F27: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2x0.4, Receptacle; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric View All

221V06F27 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2x0.4, Receptacle

221V06F27 Parametric

Parameter Name	Attribute value
Objectid	303859653
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NONE
Board mount options	PEG
body width	0.236 inch
subject depth	0.315 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Durability	500 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	221
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

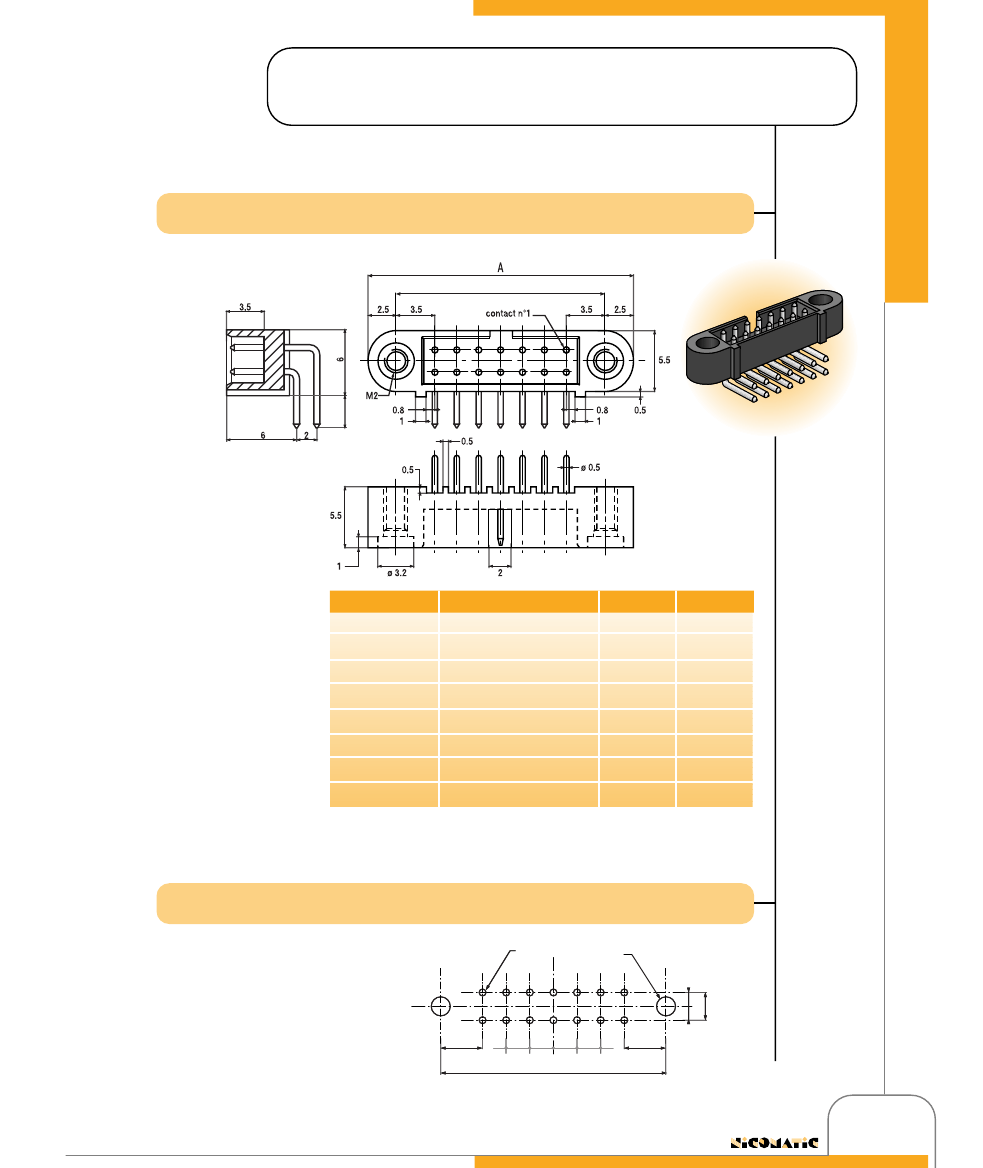

Micro-connector

CMM 220 series

MALE 90° PCB

Contact

•

Length L

3 mm

4.6 mm

Dimensions in mm

PART NUMBER

NUMBER OF CONTACTS

221

•

06 Fxx

10 Fxx

14 Fxx

20 Fxx

26 Fxx

34 Fxx

42 Fxx

50 Fxx

xx : fixing, refer to page 25.

Other sizes are available upon request, please consult us.

PCB LAY OUT

ø 0.65 min.

ø 2.2 min.

= =

3.5

Pitch = 2

3.5
