SUPERBRIGHT LED LAMP
VAOL-3GYJ4
Feature
§
§
Low Power Consumption
I.C. compatible

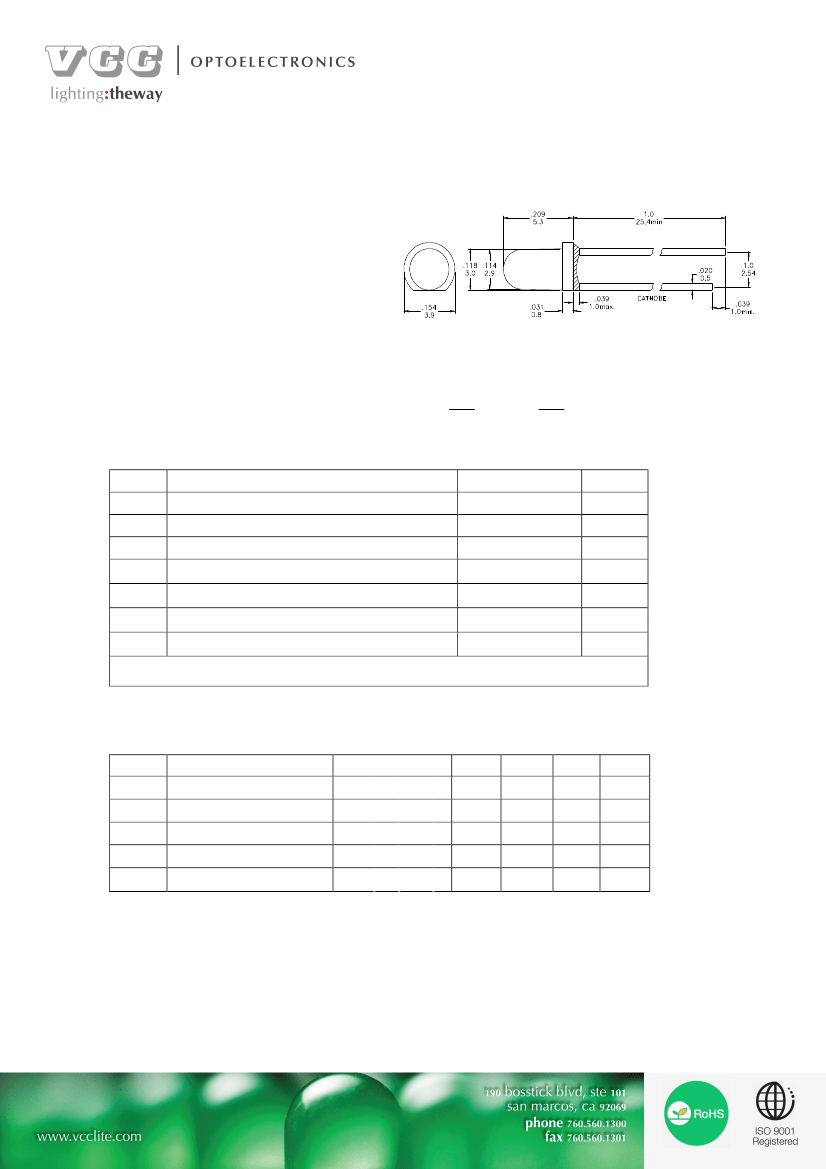

Package Dimension
Applications
§
§
§
§
Commercial Outdoor Sign Board
Front Panel Indicator
Dot-Matrix Module
LED Bulb
Description
These LEDs are Based on
AlInGaP/GaAsMaterial Technology
§
Emitted Color: YELLOW
§
Water Transparent Lens
§
＊Tolerance：±
0.01
0.25
Unit：±
Inch
mm
Absolute Maximum Ratings at Ta＝25℃
Symbol
PD
VR
IAF
IPF
―
Topr
Tstg
Power Dissipation
Reverse Voltage
Average Forward Current
Peak Forward Current（Duty＝0.1，1kHz）
Derating Linear Form 25℃
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
120
5
30
100
0.4
–40
to
＋
85
–40
to
＋
100
Unit
mW
V
mA
mA
mA∕℃
℃
℃
Lead Soldering Temperature [1.6mm（0.063inch）From Body] 260℃ For 5 Seconds.
Electrical / Optical Characteristics and Curves at Ta＝25℃
Symbol
VF
IR
△θ
IV
λd
Parameter
Forward Voltage
Reverse Current
Half Intensity Angle
Luminous Intensity
Peak Wavelength
Test Condition
IF＝ 20 mA
VR＝ 5
V
IF＝ 20 mA
IF＝ 20 mA
IF＝ 20 mA
Min.
Typ. Max. Unit
2.1
30
2000
590
2.4
100
V
μA
Deg.
mcd.
nm
Electrical Characteristics at Ta＝25℃
Symbol
Parameter
Condition
Unit
Iv
Luminous Intensity
IF＝20mA
V
F
Forward Voltage
IF＝20mA
λD
Dominant Wavelength
IF＝20mA
mcd
Grade
BIN 17
BIN 18
Range
1300~1800
1800~2500
Grade
C
D
E
F
V
Range
1.9~2.0
2.0~2.1
2.1~2.2
2.2~2.3
Grade
Y3
Y4
Y5
Y6
nm
Range
587~589
589~591
591~593
593~595
Binning
G
2.3~2.4
Intensity: Tolerance of minimum and maximum =
±
15%
Vf: Tolerance of minimum and maximum =
±
0.05v
NOTE:
1. Static electricity and surge damages the LED. It is recommend to use a anti-static wrist
band or anti-electrostatic glove when handing the LEDs. All devices, equipment and machinery
must be properly grounded.
2. Specific binning requirements
–please
contact our home office

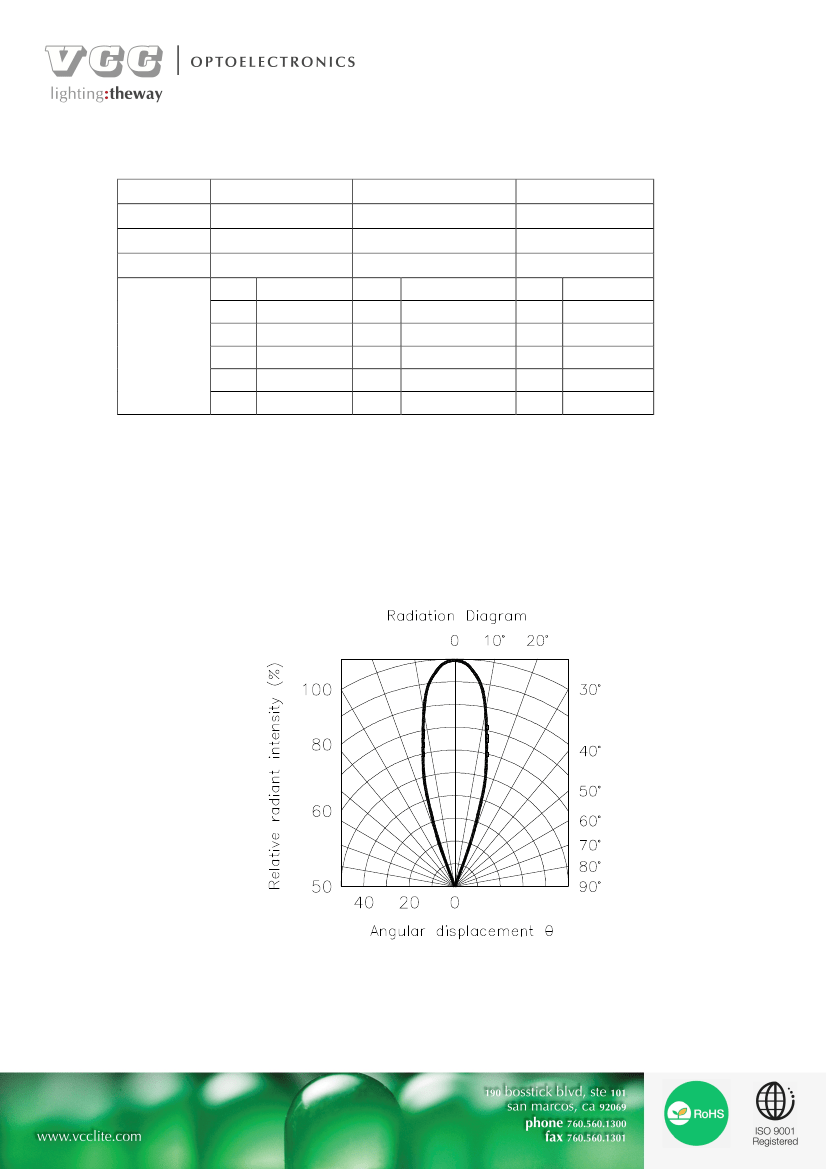

Radiation Diagram
IF=20 mA 50% Power Angle
Angle =30∘
YELLOW

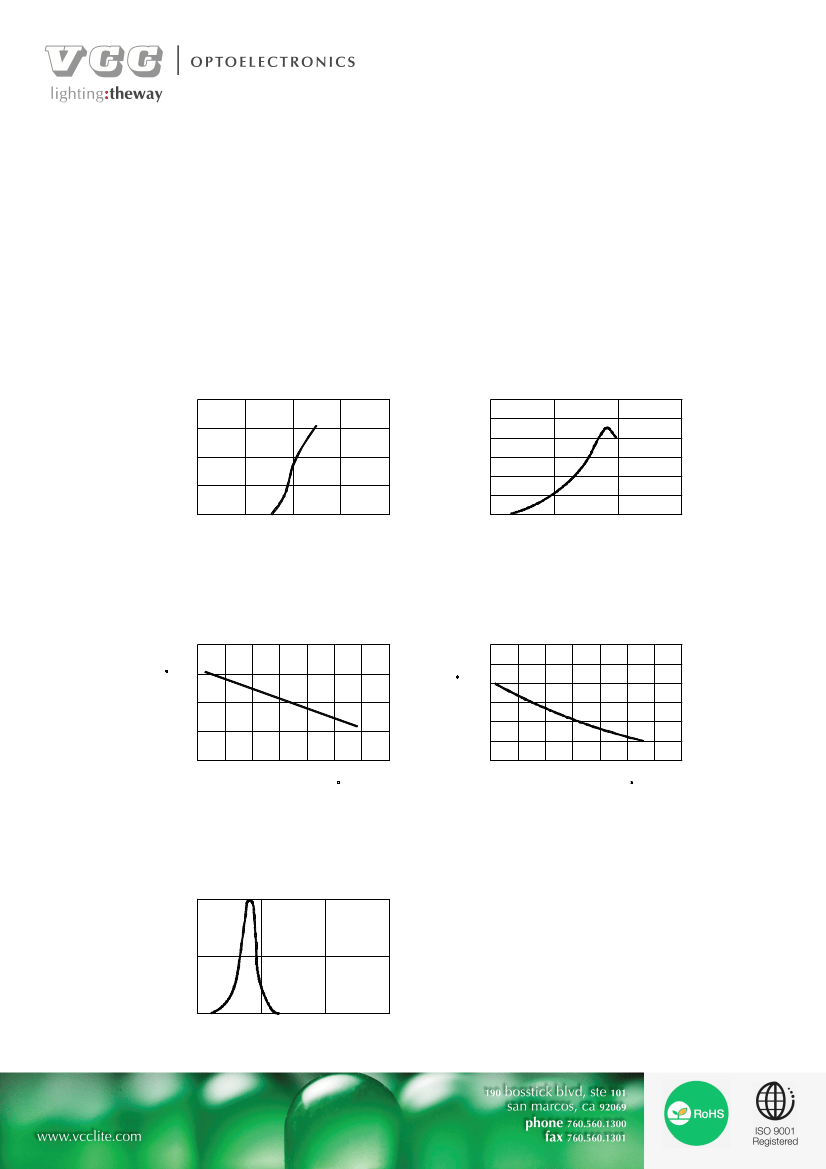

Typical Electro-optical Characteristic Curves
(25°C Free Air Temperature Unless Otherwise Specified)
Fig 1. Forward Current vs. Forward Voltage
Fig 2. Relative Intensity vs. Forward Current
1000
3.0
Forward Current (mA)
Relative Intensity
Normalize @ 20 mA
2.5
2.0
1.5
1.0
0.5
0.0
1
10
100
1000
100
10
1
0.1
1.0
1.5
2.0
2.5
3.0
Forward Voltage(V)
Forward Current(mA)
Fig 3. Forward Voltage vs. Temperature
Fig 4. Relative Intensity vs. Temperature
Relative Intensity @ 20 mA
Normalize @ 25 C
- 20
0
20
40
60
80
100
Forward Voltage @ 20 mA
Normalize @ 25 C
1.2
1.1
1.0
0.9
0.8
- 40
3.0
2.5
2.0
1.5
1.0
0.5
0.0
- 40
- 20
0
20
40
60
80
100
Ambient Temperature( C)
Ambient Temperature( C)
Fig 5. Relative Intensity vs. Wavelength
Relative Intensity @ 20 mA
1.0
0.5
0.0
550
600
650
700
Wavelength(nm)
