LPC-36T3M2L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> LPC-36T3M2L

Preview

LPC-36T3M2L: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LPC-36T3M2L Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

LPC-36T3M2L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Objectid	2070744991
Reach Compliance Code	unknown
body width	0.157 inch
subject depth	0.197 inch
body length	1.417 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

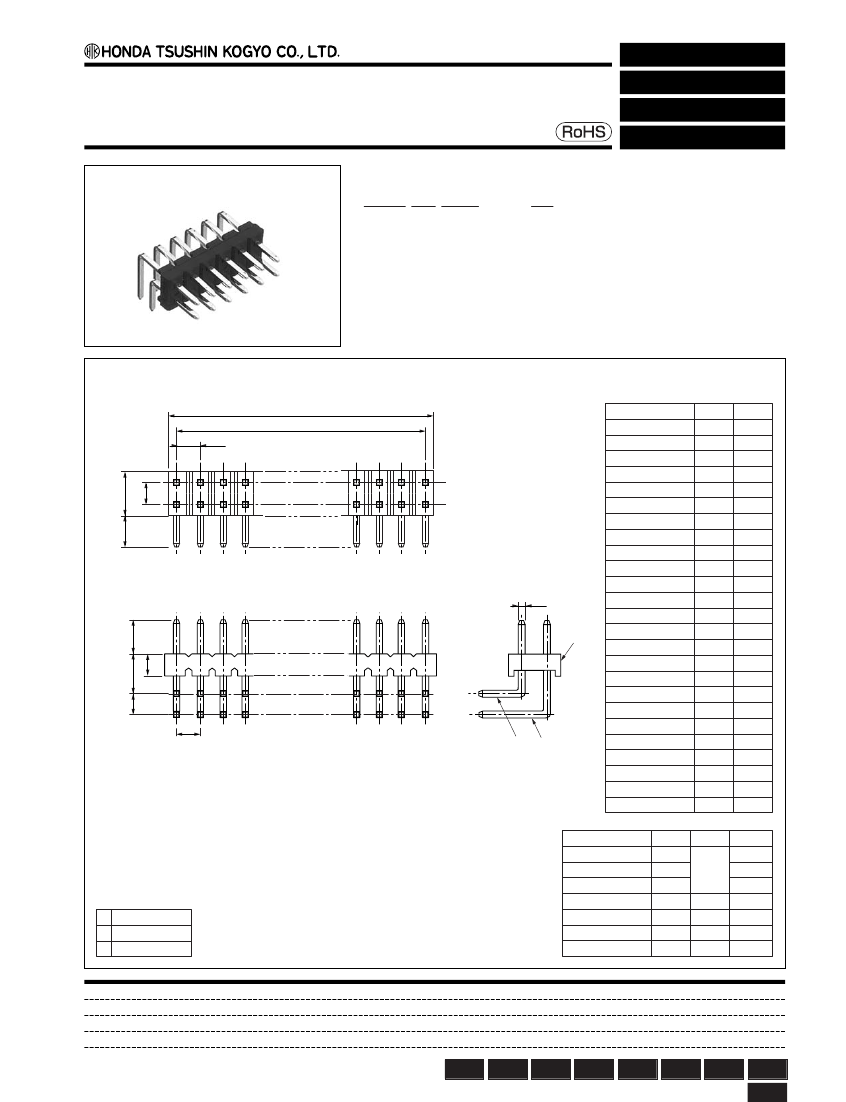

2 mm pitch connector

Right-angle through hole type male connector for PCB

LPC-( )(T )M2L( )

●

Configuration of product Part No.

For PCB

Right-angle Through hole

LPC- ( ) (T ) M2L ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 2-50

➂

Length No. of contact:

Refer to the table of dimensions below.

➃

Contact plating

+S: Tin plate

G : Gold plate

●

Dimensions

B

A

2

Part No.

LPC-2(T )M2L( )

LPC-4(T )M2L( )

LPC-6(T )M2L( )

LPC-8(T )M2L( )

4

2

LPC-10(T )M2L( )

LPC-12(T )M2L( )

(F)

LPC-14(T )M2L( )

LPC-16(T )M2L( )

LPC-18(T )M2L( )

LPC-20(T )M2L( )

LPC-22(T )M2L( )

œ0.5

LPC-24(T )M2L( )

LPC-26(T )M2L( )

D

LPC-28(T )M2L( )

LPC-30(T )M2L( )

LPC-32(T )M2L( )

LPC-34(T )M2L( )

LPC-36(T )M2L( )

2

LPC-38(T )M2L( )

2

LPC-40(T )M2L( )

A

-

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

E

3

3.5

2.25

2.4

3

B

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

F

3

2

2.4

3

2.6

1.8

2.5

¡

2

E

™

£

LPC-42(T )M2L( )

LPC-44(T )M2L( )

LPC-46(T )M2L( )

LPC-48(T )M2L( )

LPC-50(T )M2L( )

Part No.

LPC-( )M2L

LPC-( )T3M2L

LPC-( )T4M2L

D

3

4.4

3

3.5

3

3.5

2

●

Components

➀

Insulator

➁

Short contacts

➂

Long contacts

Because some combinations of “Configurations of

Product Part No.”, are under consideration for

development, please contact us for availability details.

LPC-( )T6M2L

LPC-( )T10M2L

LPC-( )T15M2L

LPC-( )T16M2L

Mating connectors:

LPC series female connectors or shunt plugs

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole
