HIGH RELIABILITY EXTENDED RANGE CHIP CAPACITORS
For space flight applications that require the highest level of reliability,
Presidio recommends its high reliability extended range chip
capacitors. Tested to the requirements of MIL-PRF-123, Presidio
manufactures these chips on the same manufacturing line as its
military products. Please note these capacitors are NOT MIL-qualified.
Unless noted in the data sheet, the parts do meet the MIL-PRF-123
design requirements for dielectric thickness and electrode composition.
All parts are manufactured with
PRECIOUS METAL ELECTRODES.
DESTRUCTIVE PHYSICAL ANALYSIS (DPA) —
A representative
sample is pulled from each lot and examined per EIA RS469 and
to verify adherence to Presidio’s design criteria. Sample size is per
MIL-PRF-123.
FORMERLY THE PRESIDIO COMPONENTS, INC. “#M123” DRAWING
NASA S-311 SPECIFICATION
Most of these chips are qualified to the
NASA S-311 drawing. For more information
click on the NASA S-311-P-829 link on
Presidio’s website:
www.presidiocomponents.com
Every lot undergoes the following inspection and tests.
QUALITY ASSURANCE PROVISIONS
THERMAL SHOCK —
All parts are temperature cycled for 20
cycles to MIL-STD-202 Method 107, Condition A, except that max
temperature is 125°C.
ULTRASONIC INSPECTION —
Code A:
Ultrasonic inspection is performed on 100% of the parts,
except for Case Code 0201 where real time X-Ray is used instead.
Code B:
No Ultrasonic inspection or real time X-Ray is performed.
PERCENT DEFECTIVE ALLOWED (PDA) —
The cumulative
PDA after Voltage Conditioning is 5%. Pieces rejected as out of
tolerance for capacitance or visual screening will be removed from
the lot but not counted in the PDA calculation.
VISUAL —
A 100% inspection is performed IAW MIL-PRF-123
Appendix B.
MECHANICAL —
Level 1 AQL 1% in accordance with
MIL-PRF-123.
VOLTAGE CONDITIONING —
All parts receive a voltage
conditioning at 2X rated voltage and 125°C for a minimum of 168
hours and a maximum of 264 hours. Voltage Conditioning may be
terminated at any time between 168 and 264 hour time interval
that failures are less than .1% or 1 piece during the last 48 hours
of the test. Method follows MIL-PRF-123. Resistors, instead of
fuses are acceptable.
INSULATION RESISTANCE (IR @ 125°C) —
All parts are tested
at 125°C and Rated Voltage in accordance with Method 302 of
MIL-STD-202. The minimum IR required is 10,000 Megohms or
100 Megohm-Microfarads.
THERMAL SHOCK AND LIFE TEST —
A sample is pulled from
each lot. 100 Thermal shock cycles are performed and Life Test
is performed for 1000 hours at 2X rated voltage and 125°C.
Sample size and method follows MIL-PRF-123.
HUMIDITY, STEADY STATE, LOW VOLTAGE —
A sample of
12 pieces is pulled from each lot and tested per MIL-PRF-123.
MARKING (Optional for sizes 0805 and larger only) —
Parts will
not be marked unless marking is specified on the PO. If marking is
specified, a color letter will be used per Presidio’s chip marking
system.
Product will be packaged in individual waffle trays. Tape and reel
option is available.
Data will be sent with each shipment including:
• CERTIFICATE of COMPLIANCE
• DPA REPORT
• GROUP A & B ATTRIBUTE DATA SHEET
• LIFE TEST AND HUMIDITY VARIABLES DATA SHEET.
STANDARD PACKAGING
DATA PACKAGE
DIELECTRIC WITHSTANDING VOLTAGE (DWV) —
All parts are
tested at 2.5X rated voltage in accordance with Method 301 of
MIL-STD-202.
INSULATION RESISTANCE (IR @ 25°C) —
All parts are tested at
25°C and Rated Voltage in accordance with Method 302 of MIL-
STD-202. The minimum IR required is 100,000 Megohms or 1,000
Megohm-Microfarads.
CAPACITANCE —
All parts are tested at 25°C and 1VACRMS in
accordance with Method 305 of MIL-STD-202.
DISSIPATION FACTOR (DF) —
See following table:
Voltage Rating
5/10
16/25
≥ 50
NPO
N/A
.15%
.15%
X7R
7.5%
4%
2.5%
Group B required for flight parts. Parts for engineering models
may be subject to lesser screening requirements.
EXAMPLE PART NUMBER
SR0805X7R103K2P5(L)
#M123A
PART DESCRIPTION: SR, 0805, X7R, 10nF, ±10%, 50VDC,
PdAg Termination, Waffle Pack, Design-In Code (L) for Vermont,
Screened per MIL-PRF-123, with 100% Ultrasonic Inspection.
* For 10V high cap values see note 1/ on page 3
EXAMPLE: SR0805X7R103K2P5(L)#M123A
0805
X7R
SR
103
Prefix
SR
Size Code
See
Page 3
For Sizes
Dielectric
X7R
NPO
(in picofarads)
Two significant
figures followed by the
number of zeros.
Example:
103 = 10,000pF = .01µF
Capacitance
A
B
C
D
F
G
J
=
=
=
=
=
=
=
±
±
±
±
±
±
±
.05pF
.10pF
.25pF
.50pF
1%
2%
5%
HOW TO ORDER
K
Tolerance
≤ 6.2pF
< 10pF
< 10pF
< 10pF
B
E
F
G
1
2
3
=
=
=
=
=
=
=
Design-In Codes can be found on our website
2
Voltage Code
5 VDC
10 VDC
12 VDC
16 VDC
25 VDC
50 VDC
100 VDC
P
P
= Palladium Silver
NT9 = Ni/Sn/Pb
Min 4% Pb
NG = Nickel Gold
Termination Code
5
1 = Reel, 7”, plastic
tape, unmarked
2 = Reel, 7”, plastic
tape, marked
5 = Waffle,
unmarked
6 = Waffle, marked
T
(L)
Design-In
Code
See
Website
#M123
Special
Code
#M123
A
A = 100%
B = None
See Above
Ultrasonic
Inspection
Packaging Code
Other Sizes
Available
NPO
ONLY
K = ± 10%
L = -10% / +20%
M = ± 20%
ALL
Other Voltages
Available
Examples: 63, 75,
150, 250 VDC, etc.
L
M.B.
2
W

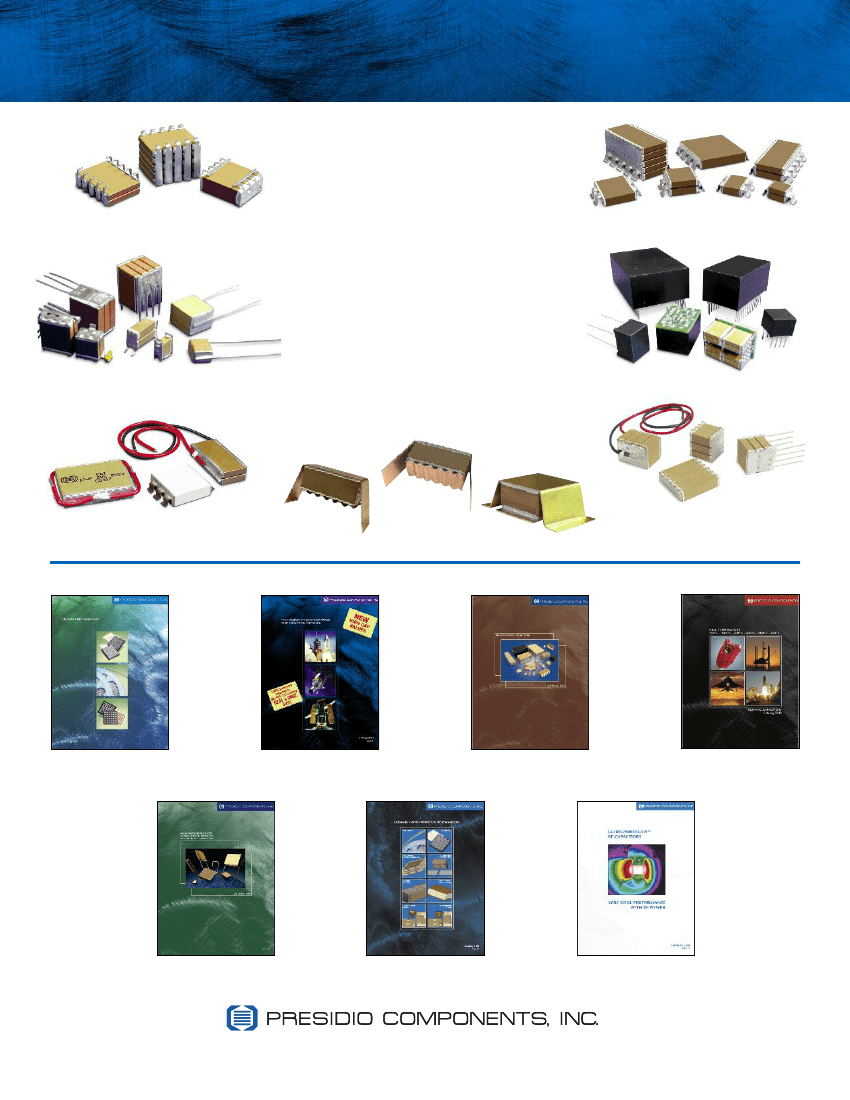

PRESIDIO CUSTOM PRODUCTS
maintains more than 100 million standard
commercial and military parts in inventory. If
you need a custom product, call our
engineering team.
PRESIDIO COMPONENT S, INC.
CUSTOM LEADS
CUSTOM STACKED
CUSTOM ASSEMBLY
Backed with numerous patents and
hundreds of years of combined experience,
Presidio’s engineering team is ready
and able to create the ideal solution for
any application.
Custom products include non-standard
part sizes and voltages such as high
voltage, high temperature, high “Q”, custom
le a d s , c r y o g e n i c c e r a m i c s , n e g a t i v e
and positive temperature characteristic
ceramics, and piezoelectric formulations.
European sizes are also available.
‘S’ LEADS
ENCAPSULATED
HIGH TEMP
DOWNHOLE OIL
POWER-STACK™
CAPACITORS
HIGH FREQUENCY
HIGH POWER
MAIN PRODUCT CATALOGS
CERAMIC CHIP
CAPACITORS
HIGH RELIABILITY
EXTENDED RANGE
CHIPS FOR SPACE
SMPS STACKED
CAPACITORS
HIGH TEMPERATURE
CERAMIC
CAPACITORS
HIGH VOLTAGE &
RADIAL LEADED PRODUCTS
MIL-PRF-49467 CAPACITORS
CERAMIC CAPACITORS
FOR RF, MICROWAVE &
FIBER OPTIC APPLICATIONS
ULTRA-PORCELAIN
RF CAPACITORS
4
7169 Construction Court, San Diego, CA 92121 • Tel: 858-578-9390 • Fax: 858-578-6225
www.presidiocomponents.com • info@presidiocomponents.com
FEBRUARY 2017
