WTB20SAD11J-342 datasheet, PDF

Datasheet> All Categories > The connector> The connector> WTB20SAD11J-342

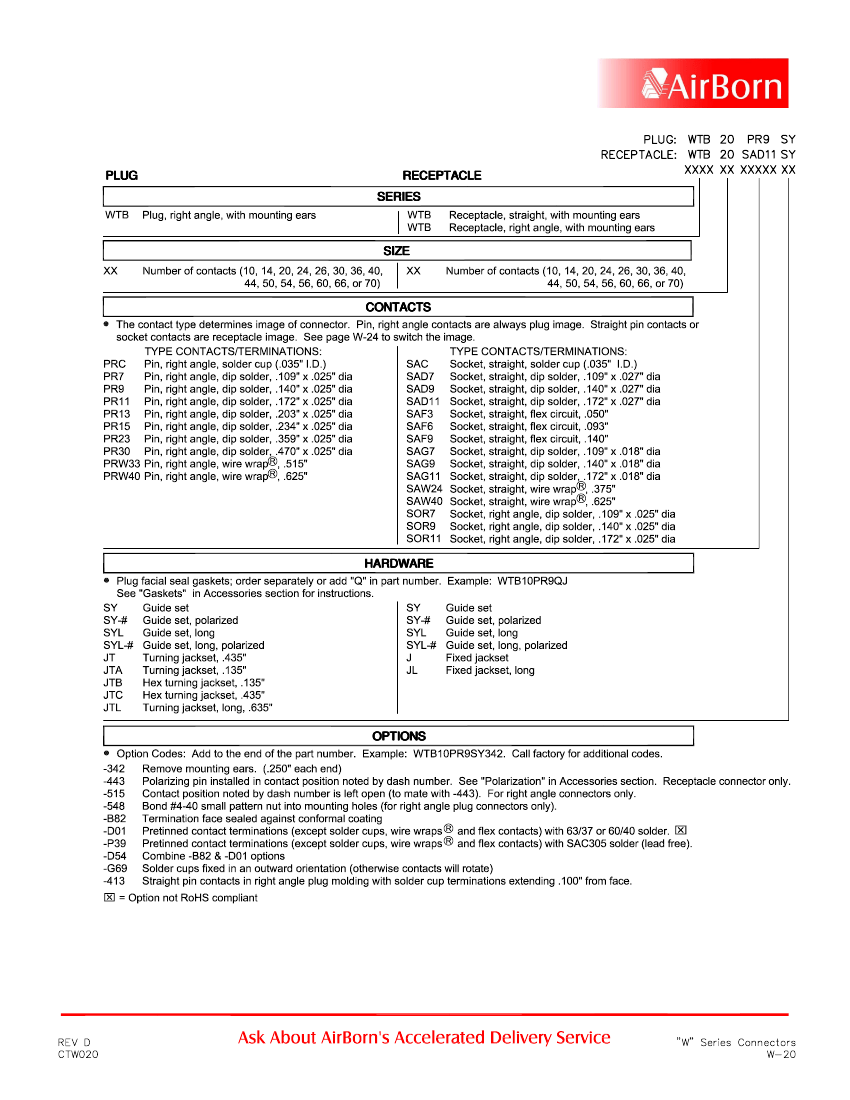

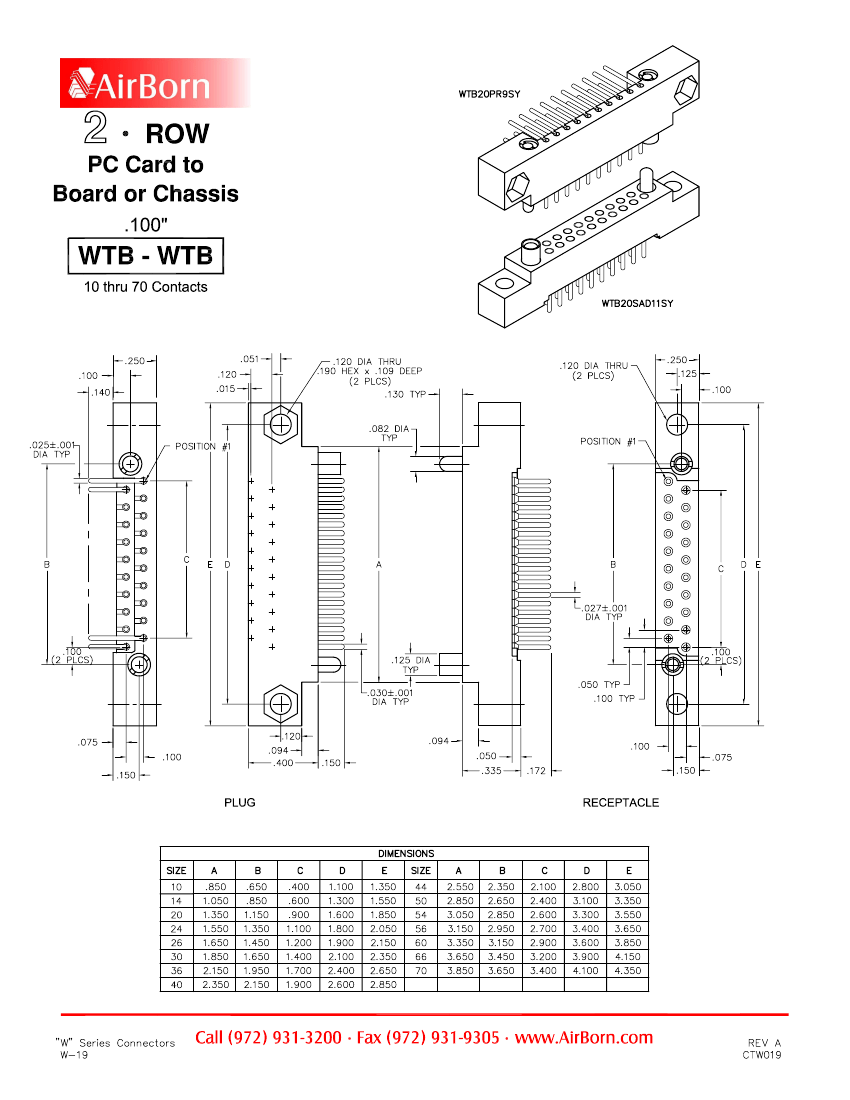

WTB20SAD11J-342: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size888KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WTB20SAD11J-342 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

WTB20SAD11J-342 Parametric

Parameter Name	Attribute value
Objectid	313792630
Reach Compliance Code	compliant
body width	0.25 inch
subject depth	0.335 inch
body length	1.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	WTB
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
reliability	COMMERCIAL
Terminal length	0.172 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

WTB20SAD11J-342 Related Products

	WTB20SAD11J-342	WTB20PR7JTB-D01	WTB66PR9JTB-342	WTB70PR9SY548	WTB36SACJ342
Description	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 66 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 70 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, #4-40, Plug	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Solder Lug Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
body width	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch
subject depth	0.335 inch	0.4 inch	0.4 inch	0.4 inch	0.335 inch
body length	1.35 inch	1.85 inch	3.65 inch	4.35 inch	2.15 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU
Contact point gender	FEMALE	MALE	MALE	MALE	FEMALE
Contact material	BERYLLIUM COPPER	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	BERYLLIUM COPPER
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	#4-40	LOCKING
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	LOCKING	JACKSCREW
Installation type	BOARD	BOARD	BOARD	BOARD	PANEL
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER LUG
Total number of contacts	20	20	66	70	36
Manufacturer's serial number	WTB	-	-	WTB	WTB
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Number of connectors	ONE	ONE	ONE	ONE	-
Terminal length	0.172 inch	0.109 inch	0.14 inch	0.14 inch	-
Maker	-	AirBorn	AirBorn	AirBorn	AirBorn
