8321LYAV2L datasheet, PDF - EEWORLD Datasheet

8321LYAV2L: DescriptionPUSHBUTTON SWITCH,RIGHT ANGLE,3PDT,ON-(ON),PC TAIL TERMINAL,11; CategoryMechanical and electronic products switch; File Size1017KB，16 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

8321LYAV2L Overview

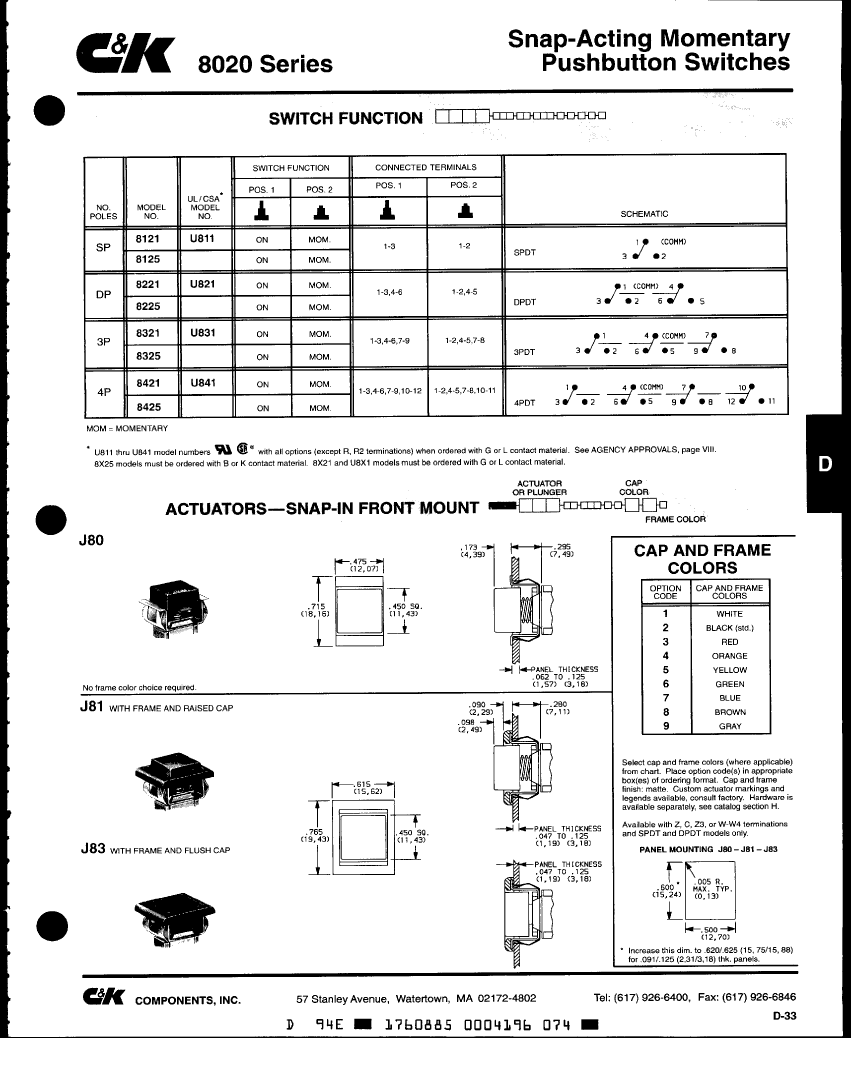

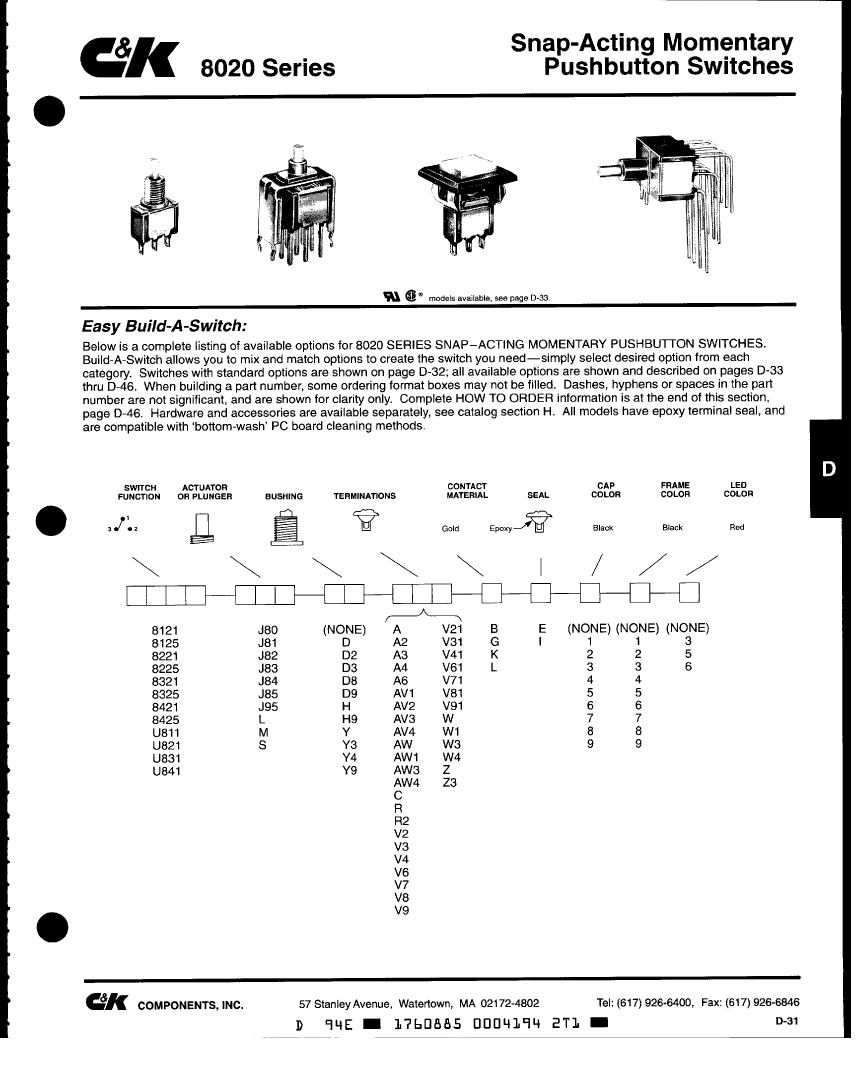

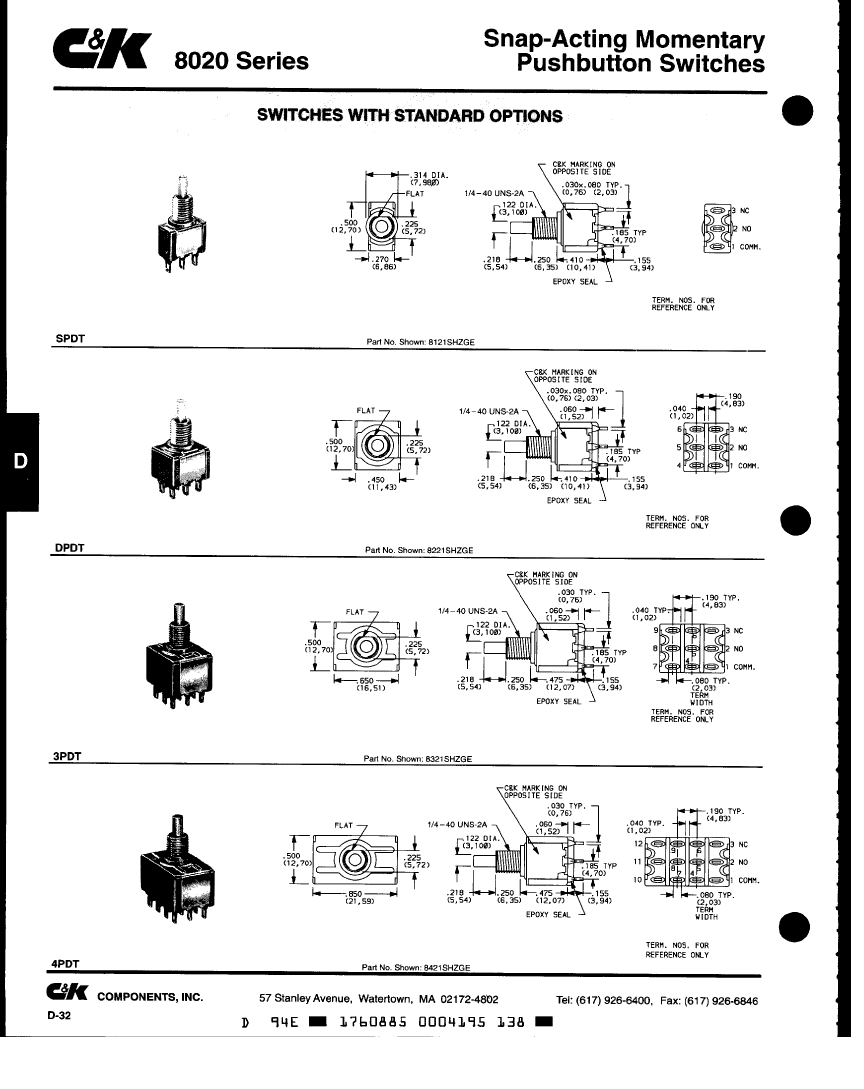

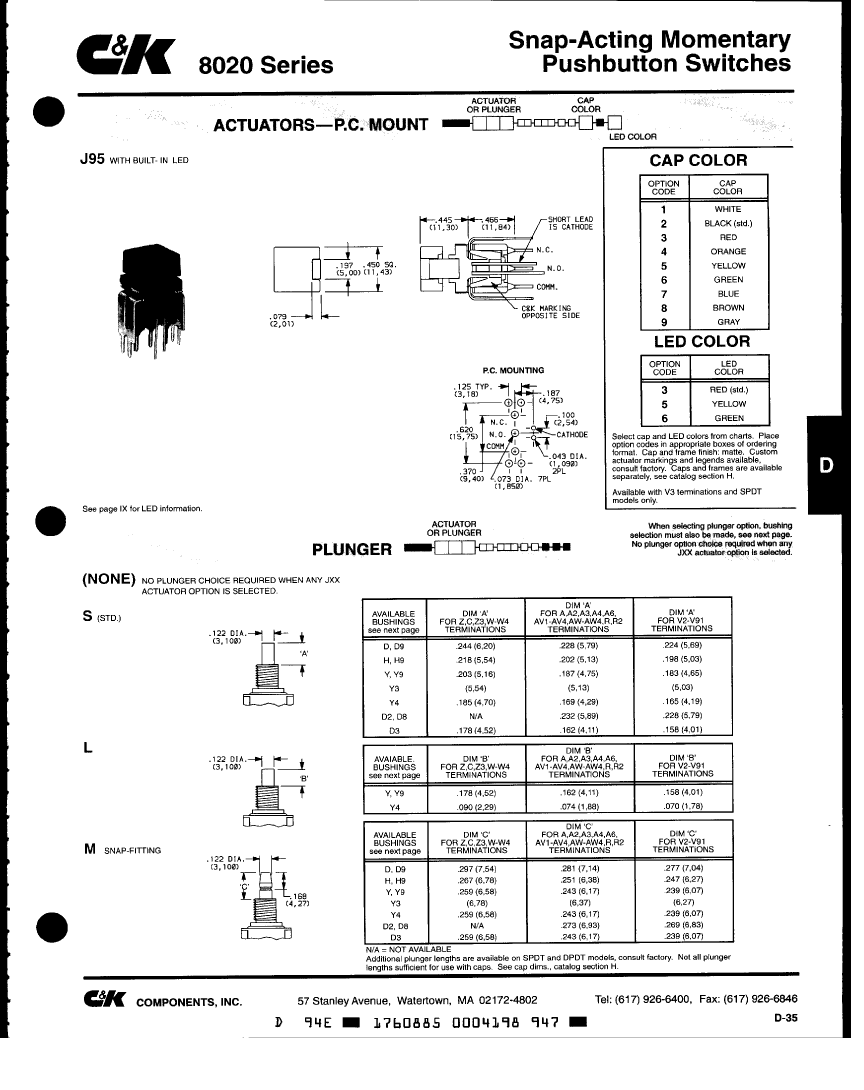

PUSHBUTTON SWITCH,RIGHT ANGLE,3PDT,ON-(ON),PC TAIL TERMINAL,11

Parameter Name	Attribute value
Objectid	1166015092
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator length	0.162 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PUSHBUTTON
body width	12.7 mm
body height	35.3568 mm
Body length or diameter	16.51 mm
Casing diameter	0.25 inch
Nozzle length	0.35 inch
Casing type	1/4-40
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact (DC) maximum rated R load	1A@28VDC
Contact function	ON-(ON)
Contact resistance	0.05 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VAC V
Electrical life	60000 Cycle(s)
End contact material	SILVER
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	8020
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
PCB hole count	11
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
Switch action	VERTICAL
switch function	3PDT
Switch type	PUSHBUTTON SWITCH
Terminal length	0.125 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Washability	PARTIAL
