C1210N223K1XRC7246 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C1210N223K1XRC7246

C1210N223K1XRC7246: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.022uF, Surface Mount, 1210, CHIP; CategoryPassive components capacitor; File Size55KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C1210N223K1XRC7246 Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.022uF, Surface Mount, 1210, CHIP

C1210N223K1XRC7246 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7310560275
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.5 mm
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
Guideline	MIL-PRF-55681
size code	1210
surface mount	YES
Temperature characteristic code	BX
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND
width	2.5 mm

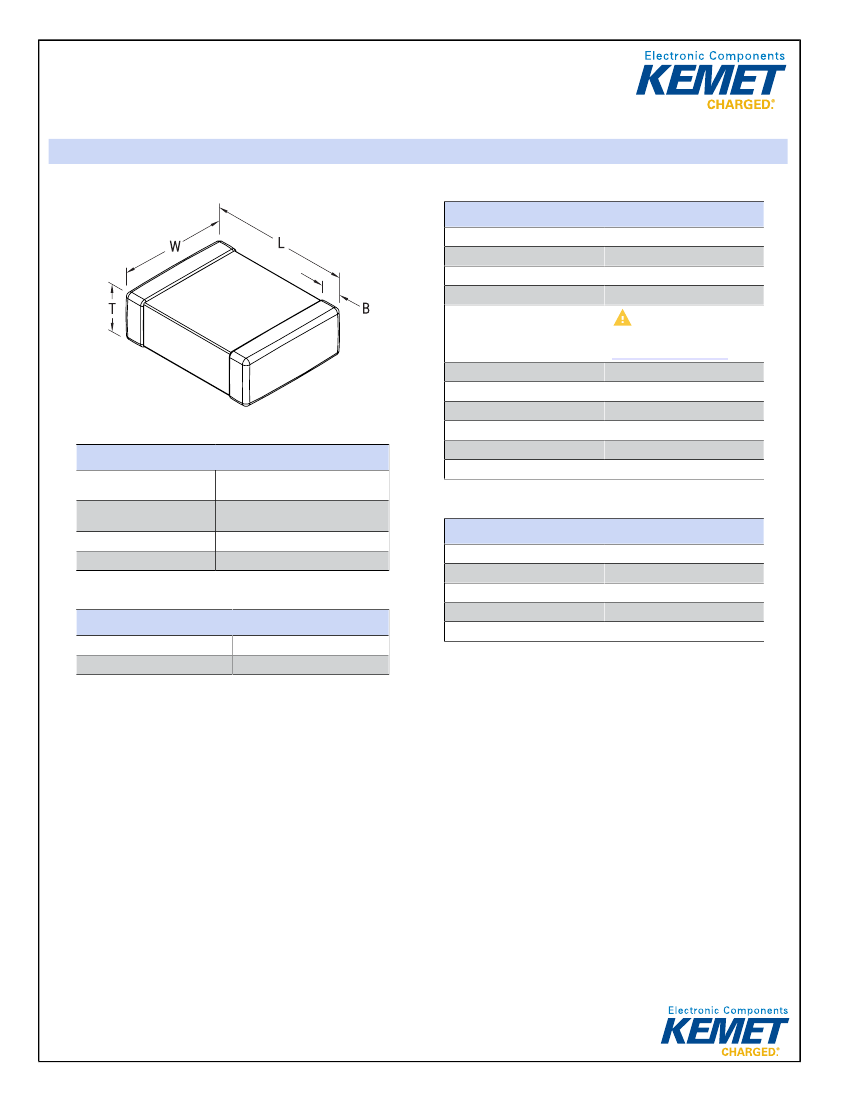

Preview

Download Datasheet

View All

KEMET Part Number: CDR33BX223BKYR-ANTISTATIC

(C1210N223K1XRC7246)

SMD Mil PRF55681, Ceramic, Military/High Reliability, 0.022 uF, 10%, 100 VDC, BX, R (0.01%/1000 Hrs), 1210

General Information

Supplier:

Series:

Style:

RoHS:

Prop 65:

REACH:

Termination:

Failure Rate:

Testing and Reliability:

KEMET

SMD Mil PRF55681

SMD Chip

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Tin

R (0.01%/1000 Hrs)

MIL-PRF-55681

1210

Dimensions

3.2mm +/-0.25mm

(0.126 in +/-0.01 in)

2.5mm +/-0.25mm

(0.098 in +/-0.01 in)

1.5mm (0.059 in)

0.5mm +/-0.25mm (0.02 in +/-0.01 in)

Qualifications:

Chip Size:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Temperature Range:

Temperature Coefficient:

0.022 uF

10%

100 VDC

-55/+125C

Packaging Specifications

Packaging:

Packaging Quantity:

Bulk, Anti-Static Bag

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/07/2019 - 99663f2f-db4f-4445-a028-4ea423e0083a
