PADP-10V-1-S

CategoryWire terminal plastic shell
File Size693KB,3 Pages
ManufacturerJST
Download Datasheet Parametric View All

PADP-10V-1-S Parametric

Parameter NameAttribute value
reference seriesPAD
spacing2mm
Jack structure2x5P
Number of pins per row5
Number of rows2
line spacing-
With lock buckle-
range of working temperature-25℃~+85℃
PAD
CONNECTOR

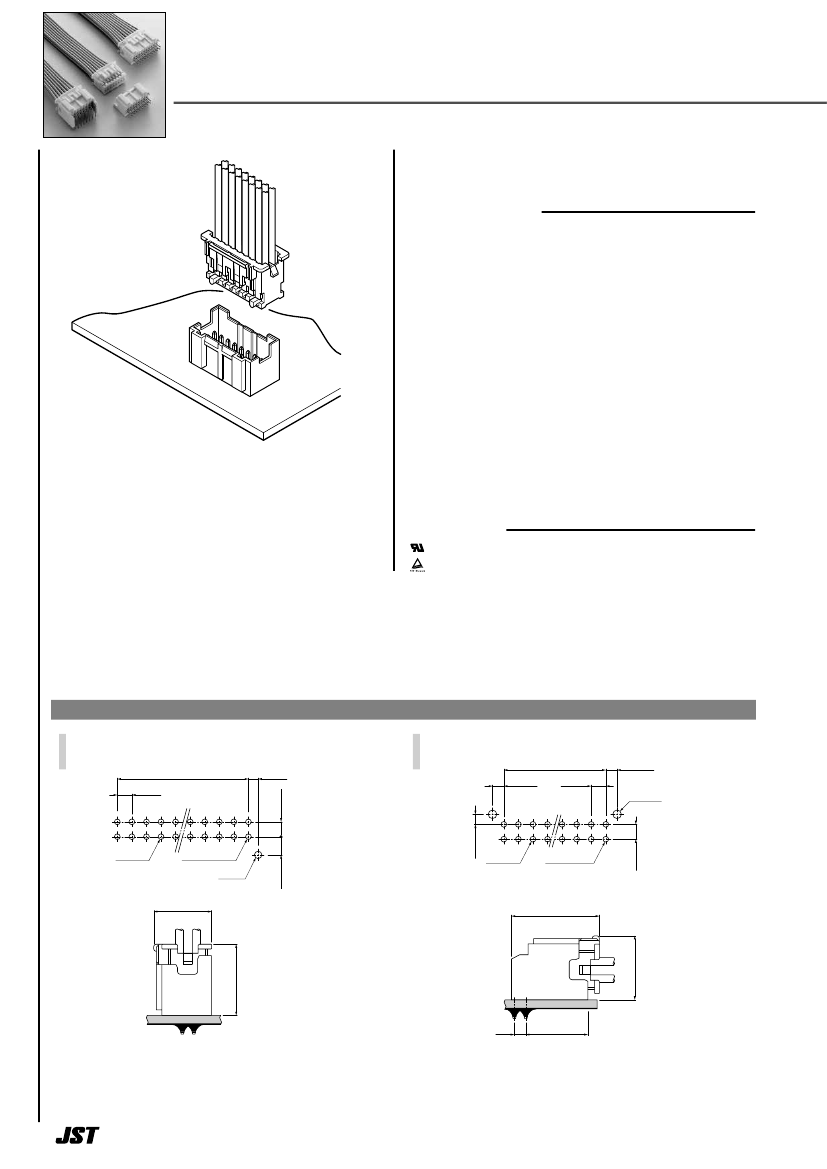

Specifications
2.0 mm pitch/Disconnectable Crimp style connectors
PAD CONNECTOR
• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6 mm
* In using the products, refer to "Handling Precautions for Terminals
and Connectors" described on our website (Technical documents
of Product information page).
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
®
®
Dual-row construction allows high density
PAD
mounting.
Secure locking device
Reliable contacts
Insertion guide mechanism
Polarizing boss
®
Standards
®
®
Recognized E60389
R50053749
PC board layout and Assembly layout
Top entry type
A
±0.05
2
±0.05
1.3
±0.05
Side entry type
A
±0.05
1.6
±0.05
2
±0.05
φ1.1
 0
+0.1
1.6
±0.05
2
±0.05
Even number circuits
Odd number circuits
1.4
±0.05
Even number circuits
+0.1
+0.1
φ1
 0
(10)
2.5
±0.05
+0.1
φ0.7
 0
Circuit No.1
φ0.7
 0
Circuit No.1
(15.4)
(12.4)
2
10.7
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ± 0.05 mm for all centers.
3. Hole dimensions differ according to the type of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions
should be larger. The dimensions above should serve as a guideline. Contact JST for details.
1
(11)
2
±0.05
Odd number circuits
