VI10150SG-M3-4W Overview

High-Voltage Trench MOS Barrier Schottky Rectifier

Preview

Download Datasheet

View All

New Product

V10150S, VI10150S

Vishay General Semiconductor

High-Voltage Trench MOS Barrier Schottky Rectifier

Ultra Low V

= 0.59 V at I

= 5 A

TMBS

TO-220AB

FEATURES

TO-262AA

• Trench MOS Schottky technology

• Low forward voltage drop, low power losses

• High efficiency operation

• Solder bath temperature 275 °C max. 10 s, per

JESD 22-B106

• AEC-Q101 qualified

V10150S

PIN 1

PIN 2

CASE

VI10150S

PIN 1

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

•

Halogen-free according to IEC 61249-2-21 definition

PIN 2

PIN 3

TYPICAL APPLICATIONS

For use in high frequency DC/DC converters, switching

power supplies, freewheeling diodes, OR-ing diode, and

reverse battery protection.

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 10 A

max.

10 A

150 V

120 A

0.69 V

150 °C

MECHANICAL DATA

Case:

TO-220AB and TO-262AA

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS compliant, and

commercial grade

Base P/NHM3 - halogen-free, RoHS compliant, and

AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix

meets JESD 201 class 2 whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

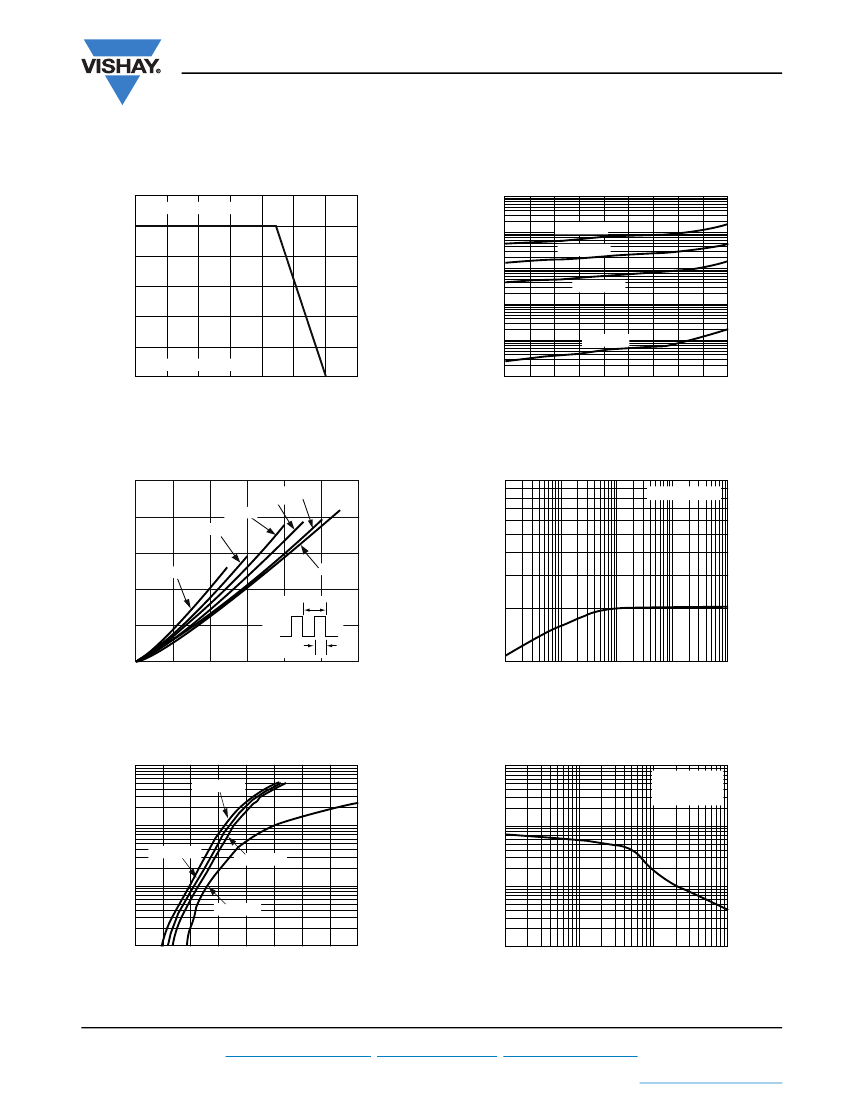

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction and storage temperature range

SYMBOL

RRM

F(AV)

FSM

dV/dt

, T

STG

V10150S

150

120

10 000

- 40 to + 150

VI10150S

UNIT

V/μs

°C

Document Number: 89246

Revision: 23-Mar-11
