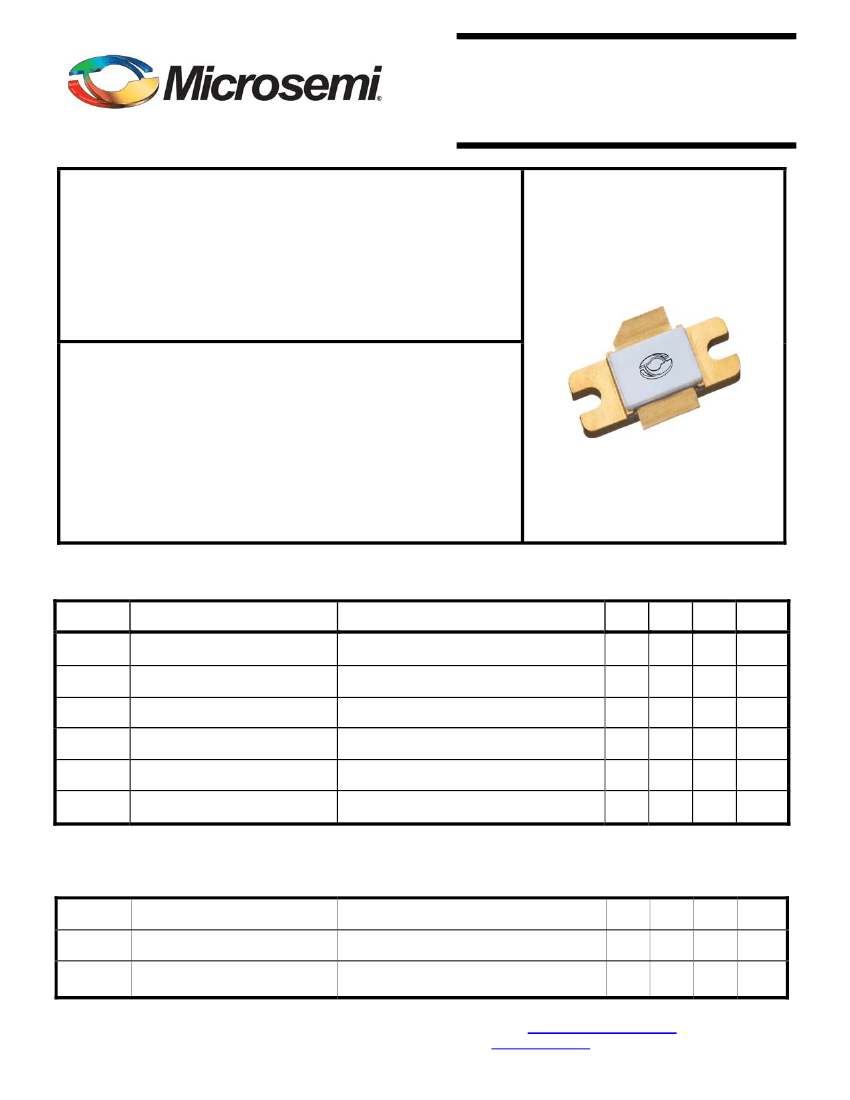

3135GN-280LV

280 Watts • 50 Volts • 200



s, 20%

S-Band Radar 3100 - 3500 MHz

GENERAL DESCRIPTION

The 3135GN-280LV is an internally matched, COMMON SOURCE,

class AB, GaN on SiC HEMT transistor capable of providing over 13 dB

gain, 280 Watts of pulsed RF output power at 200



S pulse width, 20%

duty factor across the 3100 to 3500 MHz band. This hermetically sealed

transistor is utilizes gold metallization and eutectic attach to provide

highest reliability and superior ruggedness.

Market Application – High Power S-Band Pulsed Radar

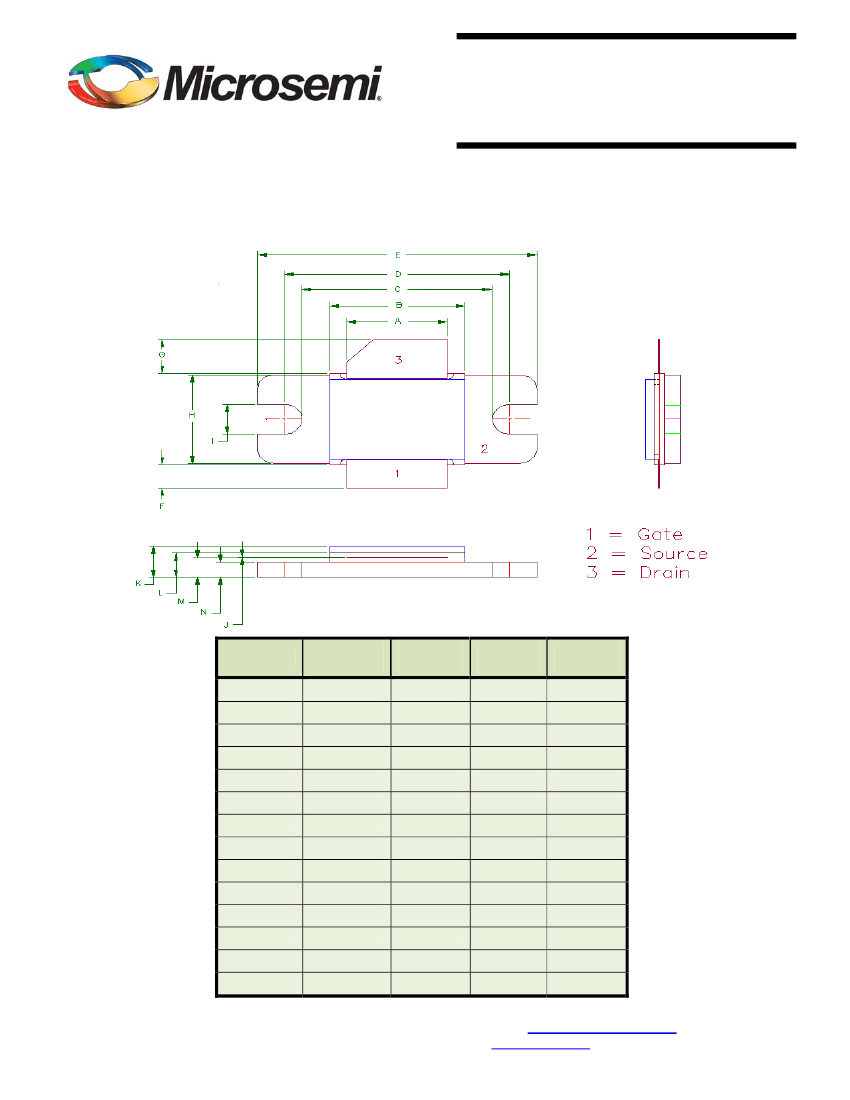

CASE OUTLINE

55-KP

Common Source

ABSOLUTE MAXIMUM RATINGS

Maximum Power Dissipation

Device Dissipation @ 25C

Maximum Voltage and Current

Drain-Source Voltage (V

DSS

)

Gate-Source Voltage (V

)

616 W

125 V

-8 to +0 V

Maximum Temperatures

-55 to +125 C

Storage Temperature (T

STG

)

Operating Junction Temperature +250

C

ELECTRICAL CHARACTERISTICS @ 25C

Symbol

Pout

Characteristics

Output Power

Power Gain

Drain Efficiency

Droop

Load Mismatch Tolerance

Thermal Resistance

Test Conditions

Pin=14.1W, Freq=3100,3300,3500 MHz

Pin=14.1W, Freq=3100 MHz

Pulse Width=200



S, Duty=20%

Min

280

Typ

330

13.7

0.2

Max

Units



VSWR-T

Өjc

0.5

3:1

.39

°C/W

Bias Condition: Vdd=+50V, Idq=100mA constant current (Vgs= -2.0 ~ -4.5V typical)

FUNCTIONAL CHARACTERISTICS @ 25C

D(Off)

G(Off)

DSS

Drain leakage current

Gate leakage current

Drain-Source breakdown

voltage

= -8V, V

= 50V

= -8V, V

= 0V

=-8V, I

= 36mA

125

For the most current data, consult MICROSEMI’s website:

www.MICROSEMI.com

Specifications are subject to change, consult the RFIS factory at

(408) 986-8031

for the latest information

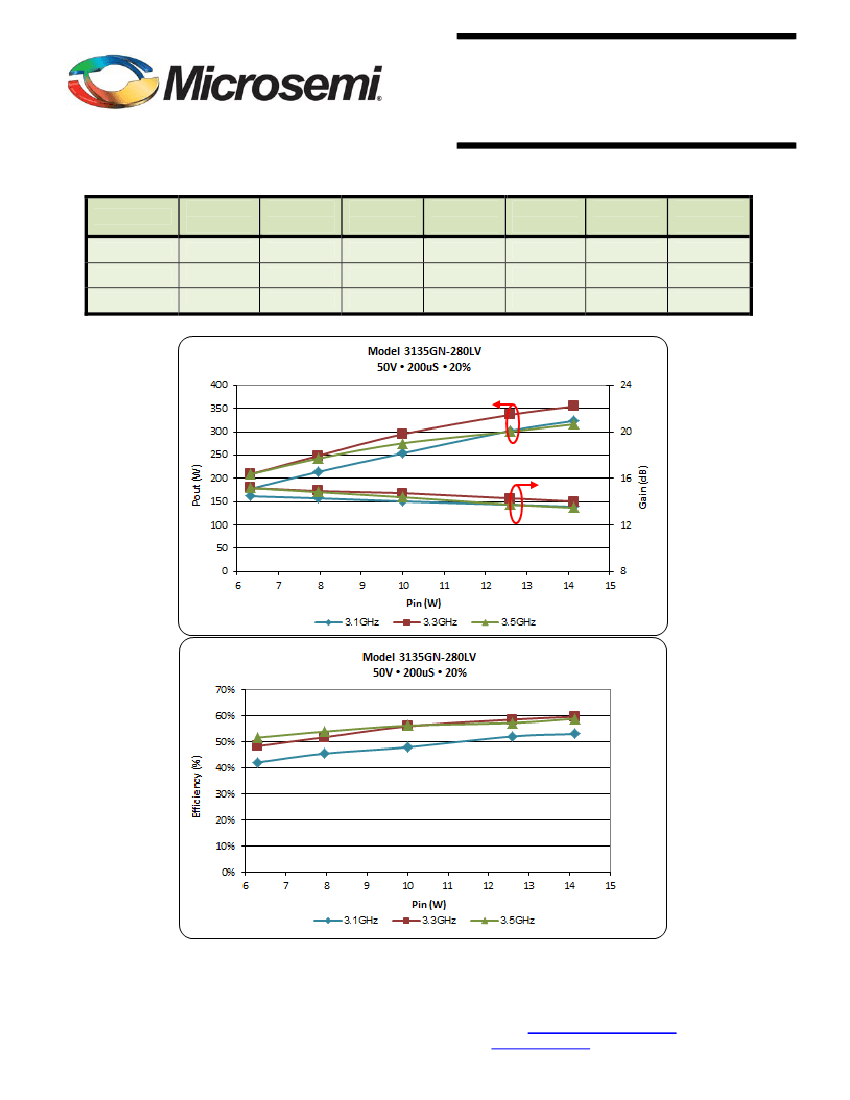

3135GN-280LV

280 Watts • 50 Volts • 200



s, 20%

S-Band Radar 3100 - 3500 MHz

The information contained in the document is PROPRIETARY AND CONFIDENTIAL information of Microsemi and cannot be copied,

published, uploaded, posted, transmitted, distributed or disclosed or used without the express duly signed written consent of

Microsemi If the recipient of this document has entered into a disclosure agreement with Microsemi, then the terms of such

Agreement will also apply . This document and the information contained herein may not be modified, by any person other than

authorized personnel of Microsemi. No license under any patent, copyright, trade secret or other intellectual property right is granted

to or conferred upon you by disclosure or delivery of the information, either expressly, by implication, inducement, estoppels or

otherwise. Any license under such intellectual property rights must be approved by Microsemi in writing signed by an officer of

Microsemi.

Microsemi reserves the right to change the configuration, functionality and performance of its products at anytime without any notice.

This product has been subject to limited testing and should not be used in conjunction with life-support or other mission-critical

equipment or applications. Microsemi assumes no liability whatsoever, and Microsemi disclaims any express or implied warranty,

relating to sale and/or use of Microsemi products including liability or warranties relating to fitness for a particular purpose,

merchantability, or infringement of any patent, copyright or other intellectual property right. The product is subject to other terms and

conditions which can be located on the Web at http://www.microsemi.com/legal/tnc.asp.

Revision History

Revision

1.0

Date

11-20-14

Affected Section(s)

Initial Preliminary Release

Description

For the most current data, consult MICROSEMI’s website:

www.MICROSEMI.com

Specifications are subject to change, consult the RFIS factory at

(408) 986-8031

for the latest information
