BBP10SS-TTA: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size93KB，3 Pages; ManufacturerMueller Electric; Websitehttp://muellerelectric.com/

Download Datasheet Parametric Compare View All

BBP10SS-TTA Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,

BBP10SS-TTA Parametric

Parameter Name	Attribute value
Objectid	4001308946
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.197 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
Manufacturer's serial number	BBP
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
PCB contact pattern	STAGGERED
PCB contact row spacing	5.08 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

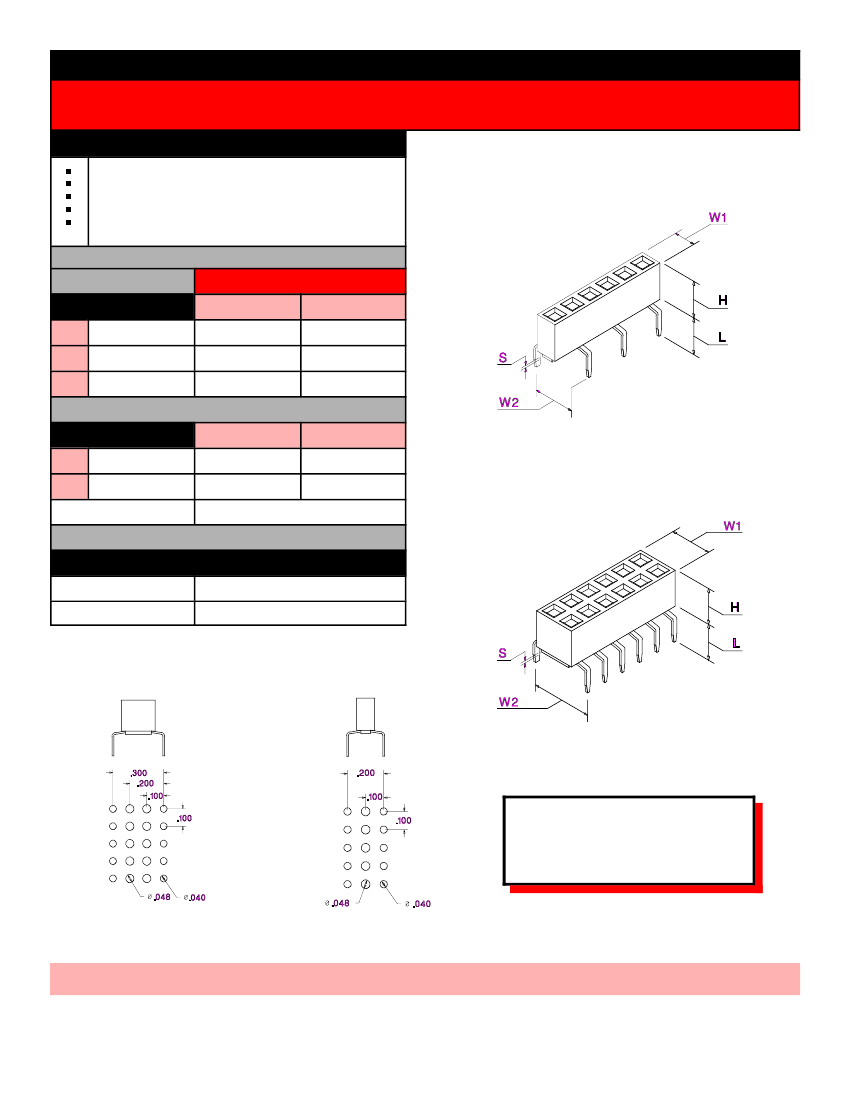

BBP SERIES

PAGE ONE OF THREE

%2$5'0281762&.(7

6WUDLJKW'XDO(QWU\

FEATURES

Bottom mount sockets accept 0.025" square posts

Allows soldering and plugging from same side of board

Excellent for low profile (0.197" / 5,00mm) applications

Dual-beam folded contact features lower insertion force

Mates with Crane’s PEG, MPEG, TPEG, and DPEG

Headers

SINGLE ROW (2 to 40 Positions)

STANDARD PART DIMENSIONS

INSULATOR BODY

WIDTH

HEIGHT

STANDOFF

Single Row

0.100" / 2,54mm

0.197" / 5,00mm

0.020" / 0,51mm

Dual Row

0.200" / 5,08mm

0.197" / 5,00mm

0.020" / 0,51mm

PC TAIL

LENGTH

WIDTH

Single Row

0.120" / 3,05mm

0.200" / 5,08mm

Dual Row

0.120" / 3,05mm

0.300" / 7,62mm

DUAL ROW (4 to 80 Positions)

WIDTH X THICKNESS

0.032" x 0.010" (0,80mm x 0,25mm)

MATERIALS

INSULATOR BODY

CONTACT

Glass Filled Polyester (UL94V-O)

Phosphor Bronze

See SPECIFICATIONS and PERFORMANCE DATA for more information.

PCB LAYOUTS

Crane’s

BBP

Series

Sockets can be used for

TOP or BOTTOM entry

SAMPLE HOTLINE: 1-800-676-7644

CRANE CONNECTORS

• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com

Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310

BBP10SS-TTA Related Products

	BBP10SS-TTA	BBP28SS-TTA	BBP29SS-TTA
Description	Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,	Board Connector, 28 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,	Board Connector, 29 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,
Objectid	4001308946	4001314411	4001308298
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
body width	0.1 inch	0.1 inch	0.1 inch
subject depth	0.197 inch	0.197 inch	0.197 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e0	e0	e0
Manufacturer's serial number	BBP	BBP	BBP
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	1	1	1
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm
Plating thickness	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	0.12 inch	0.12 inch
Terminal pitch	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	10	28	29
