GRM0335C1ER50KZ01W: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size336KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM0335C1ER50KZ01W Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT

GRM0335C1ER50KZ01W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1837235959
package instruction	, 0201
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	5e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.3 mm
JESD-609 code	e3
length	0.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
size code	0201
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.3 mm

Preview

Download Datasheet

View All

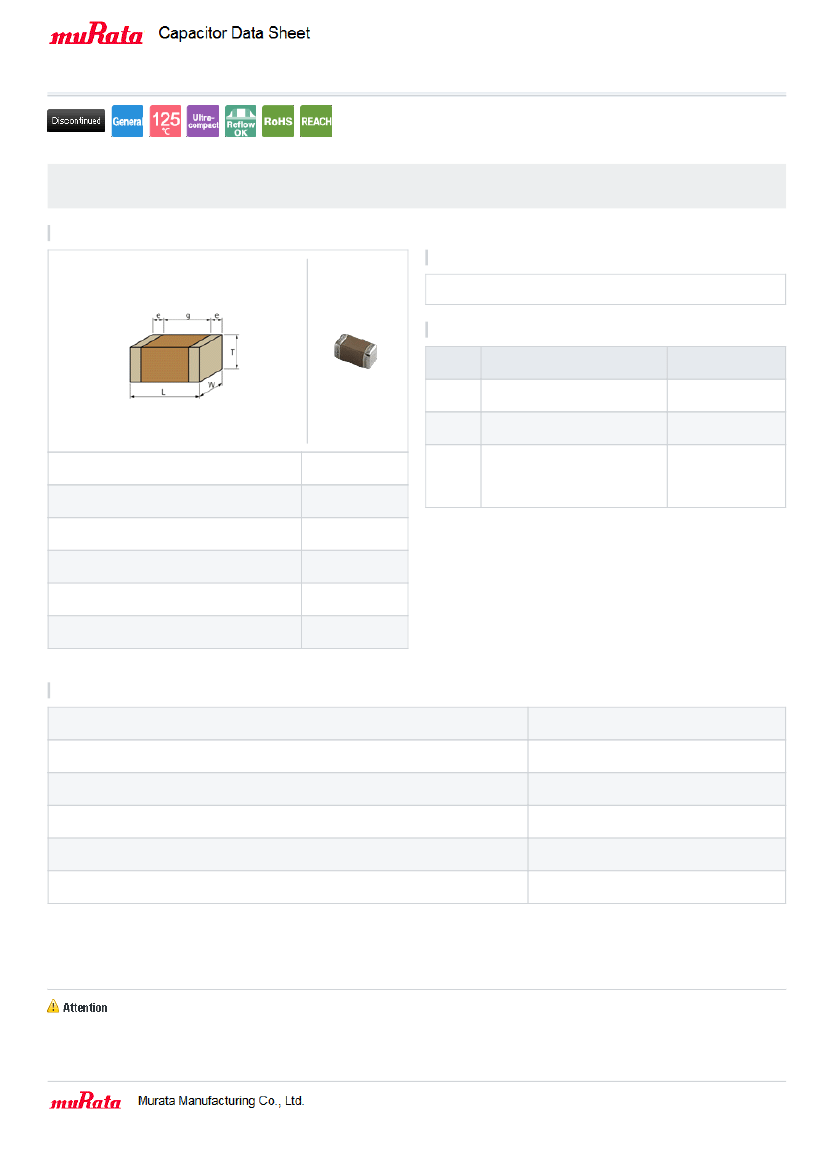

GRM0335C1ER50KZ01#

Date of discontinuation: 31 Mar 2014

< List of part num bers with package codes >

“#” indicates a package specification code.

GRM0335C1ER50KZ01D , GRM0335C1ER50KZ01W , GRM0335C1ER50KZ01J

Shape

Notes

Please use replacements or Recommended.

References

Packaging

D

J

Specifications

φ180mm

Paper taping

φ330mm

Paper taping

φ180mm

Paper taping (W8P1*)

* Width : 8mm, Pocket pitch :

1mm

Minimum quantity

15000

50000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

0.6 ±0.03mm

0.3 ±0.03mm

0.1 to 0.2mm

0.2mm min.

0201 (0603M)

W

30000

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

0.50pF ±10%

25Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 20 17/0 2/17
