GRM0335C1ER50WZ01J: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.0000005uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM0335C1ER50WZ01J Overview

CAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.0000005uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT

GRM0335C1ER50WZ01J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2006080573
package instruction	, 0201
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	5e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.3 mm
length	0.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
size code	0201
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND
width	0.3 mm

Preview

Download Datasheet

View All

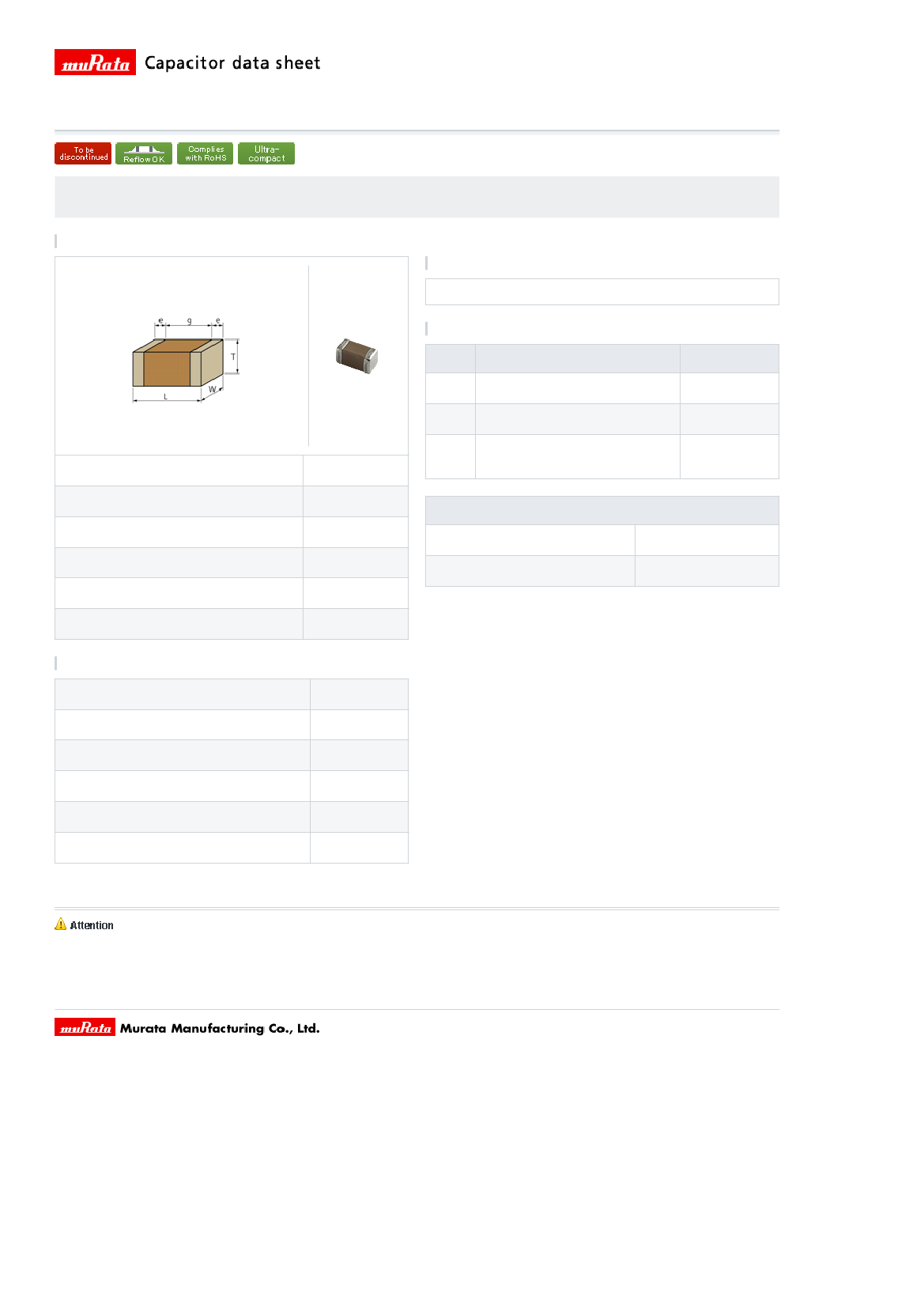

GRM0335C1ER50WZ01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM0335C1ER50WZ01D , GRM0335C1ER50WZ01W , GRM0335C1ER50WZ01J

Shape

Notes

Please use replacements or Recommended.

References

Packaging

D

J

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

15000

50000

W

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

0.6 ±0.03mm

0.3 ±0.03mm

30000

Mass (typ.)

0.3 ±0.03mm

0.1 to 0.2mm

0.2mm min.

0201 (0603)

1 piece

φ180mm Reel

0.33mg

118g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

0.50pF ±0.05pF

25Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20

GRM0335C1ER50WZ01J Related Products

	GRM0335C1ER50WZ01J	GRM0335C1ER50WZ01D	GRM0335C1ER50WZ01W
Description	CAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.0000005uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.0000005uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.0000005uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to
Objectid	2006080573	1626887778	1309326052
package instruction	, 0201	, 0201	, 0201
Reach Compliance Code	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
capacitance	5e-7 µF	5e-7 µF	5e-7 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC
high	0.3 mm	0.3 mm	0.3 mm
length	0.6 mm	0.6 mm	0.6 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes
negative tolerance	10%	10%	10%
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT
method of packing	TR, PAPER, 13 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH
positive tolerance	10%	10%	10%
Rated (DC) voltage (URdc)	25 V	25 V	25 V
size code	0201	0201	0201
surface mount	YES	YES	YES
Temperature characteristic code	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
width	0.3 mm	0.3 mm	0.3 mm
